TL3253BBABBAF160Q Information
TL3253BBABBAF160Q by E-Switch Inc is a Keypad Switch.
Keypad Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for TL3253BBABBAF160Q
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49Y6039
|
Newark | Ea Rohs Compliant: Yes |E-Switch TL3253BBABBAF160Q RoHS: Compliant Min Qty: 1008 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$5.2700 | Buy Now |
|
DISTI #
141-TL3253BBABBAF160Q-ND
|
DigiKey | SWITCH TACT SPSTX2 0.05A 12V Min Qty: 1 Lead time: 13 Weeks Container: Bulk |
915 In Stock |
|
$3.9950 / $6.7300 | Buy Now |
|
DISTI #
612-L3253BBABBAF160Q
|
Mouser Electronics | Tactile Switches Tactile, SPST-NO, Off-(On), Through Hole, Right Angle, LED, Blue, LED, Blue RoHS: Compliant | 588 |
|
$3.9900 / $4.9900 | Buy Now |
|
DISTI #
74852938
|
RS | Tactile Switch, SPST-NO, OFF-(ON), 50 mA, 12V DC, PC Pin, TL3253 Series Min Qty: 1008 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$9.9500 | RFQ |
|
DISTI #
TL3253BBABBAF160Q
|
TME | Microswitch TACT, SPST-NO, Pos: 2, 0.05A/12VDC, THT, LED, blue, 1.6N Min Qty: 1008 | 0 |
|
$5.1100 | RFQ |
Part Details for TL3253BBABBAF160Q

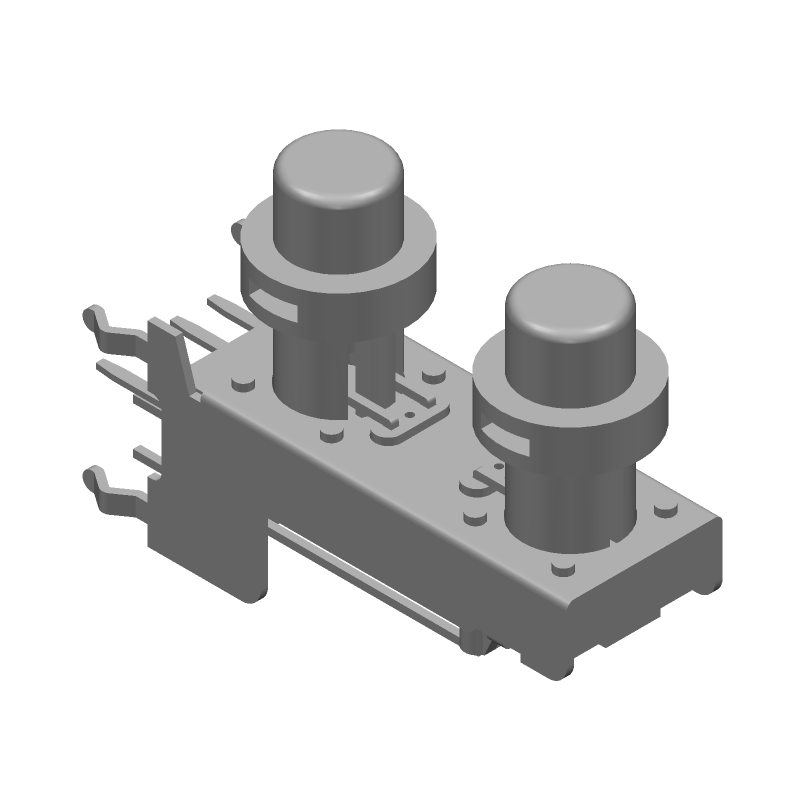

TL3253BBABBAF160Q CAD Models
TL3253BBABBAF160Q Part Data Attributes
|
|
TL3253BBABBAF160Q
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
TL3253BBABBAF160Q
E-Switch Inc
Keypad Switch,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.40 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Travel | 0.25 mm | |
| Body Breadth | 8.4 mm | |
| Body Height | 10.5 mm | |
| Body Length or Diameter | 22.6 mm | |
| Center Contact Material | SILVER | |
| Circuit Configuration | 1X1 | |
| Contact Current(DC)-Max | 0.05 A | |
| Contact (DC) Max Rating R Load | 0.05A@12VDC | |
| Contact Resistance | 0.1 mΩ | |
| Contact Voltage(DC)-Max | 12 V | |
| Dielectric Withstand Volts | 250VAC V | |
| End Contact Material | SILVER | |
| Illumination | BLUE LED | |
| Insulation Resistance | 100000000 Ω | |
| Mounting Feature | THROUGH HOLE-RIGHT ANGLE | |
| Number of Switches | 1 | |
| Operating Force-Max | 2.06 N | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| PCB Hole Count | 12 | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | SPST | |
| Switch Type | KEYPAD SWITCH | |
| Terminal Length | 0.138 inch | |
| Termination Type | SOLDER |
TL3253BBABBAF160Q Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the TL3253BBABBAF160Q is -20°C to 85°C, as specified by E-Switch Inc.
-
To ensure proper mounting, follow the recommended PCB layout and mounting instructions provided by E-Switch Inc. Use a suitable adhesive or mounting method to secure the switch to the PCB, and ensure the switch is properly aligned with the PCB pads.
-
The expected lifespan of the TL3253BBABBAF160Q is typically around 100,000 to 200,000 cycles, depending on the operating conditions and usage. However, this may vary depending on the specific application and environmental factors.
-
While the TL3253BBABBAF160Q is designed to be robust, it's essential to evaluate the switch's performance in high-vibration environments. E-Switch Inc recommends consulting their application notes and performing thorough testing to ensure the switch meets the required specifications.
-
Yes, E-Switch Inc provides specific soldering and reflow guidelines for the TL3253BBABBAF160Q. It's essential to follow these guidelines to ensure proper soldering and to prevent damage to the switch.
