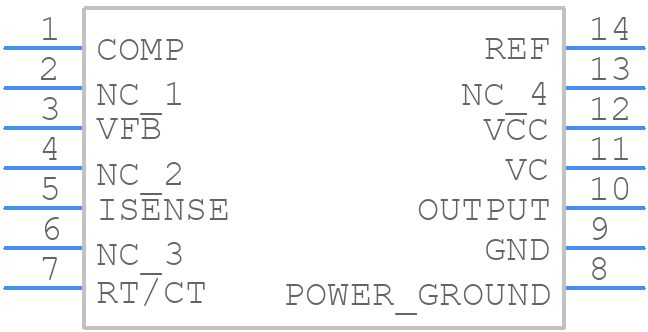

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TL2844DR by Texas Instruments
Results Overview of TL2844DR by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TL2844DR Information
TL2844DR by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TL2844DR | Texas Instruments | Current-Mode PWM Controller 14-SOIC -40 to 85 | |
| TL2844DR-8 | Texas Instruments | Current-Mode PWM Controller 8-SOIC -40 to 85 | |
| TL2844DRG4 | Texas Instruments | Current-Mode PWM Controller 14-SOIC -40 to 85 |
Price & Stock for TL2844DR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-1367-1-ND
|
DigiKey | IC REG CTRLR BST FLYBK CM 14SOIC Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
4823 In Stock |
|
$0.3269 / $0.7600 | Buy Now |
|
DISTI #
595-TL2844DR
|
Mouser Electronics | Switching Controllers Current Mode PWM A 595-TL2844D RoHS: Compliant | 2013 |
|
$0.3000 / $0.7600 | Buy Now |
|
|
Bristol Electronics | 446 |
|
RFQ | ||
|
|
Quest Components | 268 |
|
$0.6120 / $1.2240 | Buy Now | |
|
|
Cytech Systems Limited | IC REG CTRLR BST FLYBK CM 14SOIC | 7500 |
|
RFQ | |
|
|
LCSC | 500kHz 10V30V SOIC-14 AC-DC Controllers and Regulators ROHS | 41 |
|
$0.9249 / $0.9581 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 8291 |
|
RFQ |
Part Details for TL2844DR
TL2844DR CAD Models
TL2844DR Part Data Attributes
|
|
TL2844DR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TL2844DR
Texas Instruments
Economy single ended 500KHz current mode PWM controller with 16V/10V UVLO 50% duty cycle, -40-85C 14-SOIC -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, SOIC-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 30 V | |
| Input Voltage-Min | 12 V | |
| Input Voltage-Nom | 15 V | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 1 A | |
| Output Voltage-Max | 5.05 V | |
| Output Voltage-Min | 4.95 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max (Isup) | 30 mA | |
| Supply Voltage-Max (Vsup) | 30 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Switcher Configuration | BUCK-BOOST | |
| Switching Frequency-Max | 500 kHz | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for TL2844DR
This table gives cross-reference parts and alternative options found for TL2844DR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TL2844DR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TL3844DRE4 | Texas Instruments | Check for Price | 1A SWITCHING REGULATOR, 500kHz SWITCHING FREQ-MAX, PDSO14, GREEN, PLASTIC, SOIC-14 | TL2844DR vs TL3844DRE4 |
| TL2844DE4 | Texas Instruments | Check for Price | 1A SWITCHING REGULATOR, 500kHz SWITCHING FREQ-MAX, PDSO14, GREEN, PLASTIC, SOIC-14 | TL2844DR vs TL2844DE4 |
TL2844DR Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the TL2844DR is 2.7V to 5.5V.
-
To ensure stability, it's essential to follow the recommended layout and decoupling guidelines, and to use a capacitor with a value between 10nF to 100nF between the VCC and GND pins.
-
The maximum output current of the TL2844DR is 50mA per channel.
-
No, the TL2844DR is a low-dropout linear regulator, but it's not designed to be used as a voltage regulator. It's intended for use as a low-noise, low-dropout linear regulator for powering analog circuits.
-
The output voltage of the TL2844DR can be calculated using the formula: VOUT = VREF x (1 + R1/R2), where VREF is the internal reference voltage (1.24V), and R1 and R2 are the resistors used to set the output voltage.
