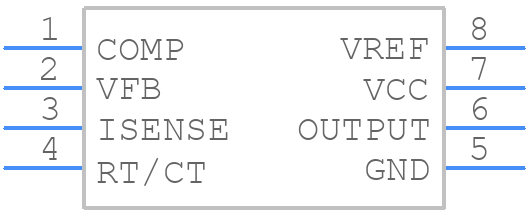

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TL2842BDR-8 by Texas Instruments
Results Overview of TL2842BDR-8 by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
TL2842BDR-8 Information
TL2842BDR-8 by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TL2842BDR-8 | Texas Instruments | High-Performance Current-Mode PWM Controller 8-SOIC -40 to 85 | |
| TL2842BDR | Texas Instruments | High-Performance Current-Mode PWM Controller 14-SOIC -40 to 85 |
Price & Stock for TL2842BDR-8
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-21845-1-ND
|
DigiKey | IC REG CTRLR BST FLYBK PWM 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2422 In Stock |
|
$0.1451 / $0.5200 | Buy Now |
|
DISTI #
595-TL2842BDR-8
|
Mouser Electronics | Switching Controllers Current Mode PWM Con troller A 595-TL2842BD-8 RoHS: Compliant | 1923 |
|
$0.1480 / $0.5200 | Buy Now |
|
|
Ameya Holding Limited | IC REG CTRLR BST FLYBK PWM 8SOIC | 54062 |
|
RFQ | |
|
|
Vyrian | Other Function Semiconductors | 25185 |
|
RFQ |
Part Details for TL2842BDR-8
TL2842BDR-8 CAD Models
TL2842BDR-8 Part Data Attributes
|
|
TL2842BDR-8
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TL2842BDR-8
Texas Instruments
30-V, 0.2A high Performance 500KHz current mode PWM with 16V/10V UVLO, 100% duty cycle, -40C to 85C 8-SOIC -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | PLASTIC, SOIC-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | CURRENT-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 30 V | |
| Input Voltage-Min | 12 V | |
| Input Voltage-Nom | 15 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 1 A | |
| Output Voltage-Max | 5.05 V | |
| Output Voltage-Min | 4.95 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max (Isup) | 30 mA | |
| Supply Voltage-Max (Vsup) | 30 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Switcher Configuration | SINGLE | |
| Switching Frequency-Max | 500 kHz | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for TL2842BDR-8
This table gives cross-reference parts and alternative options found for TL2842BDR-8. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TL2842BDR-8, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TL2843BD-8 | Texas Instruments | Check for Price | 30V, 0.2A high Performance 500KHz current mode PWM with 8.4V/7.6V UVLO, 100% duty cycle, -40C to 85C 8-SOIC -40 to 85 | TL2842BDR-8 vs TL2843BD-8 |
| TL3842BDG4 | Texas Instruments | Check for Price | 1A SWITCHING REGULATOR, 500kHz SWITCHING FREQ-MAX, PDSO14, GREEN, PLASTIC, SOIC-14 | TL2842BDR-8 vs TL3842BDG4 |
| TL2843BDRG4-8 | Texas Instruments | Check for Price | 30V, 0.2A high Performance 500KHz current mode PWM with 8.4V/7.6V UVLO, 100% duty cycle, -40C to 85C 8-SOIC -40 to 85 | TL2842BDR-8 vs TL2843BDRG4-8 |
| TL2842BDG4-8 | Texas Instruments | Check for Price | 1A SWITCHING CONTROLLER, 500kHz SWITCHING FREQ-MAX, PDSO8, GREEN, PLASTIC, MS-012AA, SOIC-8 | TL2842BDR-8 vs TL2842BDG4-8 |
| TL3842BD | Texas Instruments | $0.5817 | 30-V, 0.2A high Performance 500KHz current mode PWM with 16V/10V UVLO, 100% duty cycle, 0C to 70C 14-SOIC 0 to 70 | TL2842BDR-8 vs TL3842BD |
| TL3842BDR-8 | Texas Instruments | $0.2041 | 30-V, 0.2A high Performance 500KHz current mode PWM with 16V/10V UVLO, 100% duty cycle, 0C to 70C 8-SOIC 0 to 70 | TL2842BDR-8 vs TL3842BDR-8 |
| TL2842BDRG4 | Texas Instruments | Check for Price | 1A SWITCHING REGULATOR, 500kHz SWITCHING FREQ-MAX, PDSO14, GREEN, PLASTIC, SOIC-14 | TL2842BDR-8 vs TL2842BDRG4 |
| TL3842BDG4-8 | Texas Instruments | Check for Price | 1A SWITCHING CONTROLLER, 500kHz SWITCHING FREQ-MAX, PDSO8, GREEN, PLASTIC, MS-012AA, SOIC-8 | TL2842BDR-8 vs TL3842BDG4-8 |
| TL3842BDR | Texas Instruments | $0.3000 | 30-V, 0.2A high Performance 500KHz current mode PWM with 16V/10V UVLO, 100% duty cycle, 0C to 70C 14-SOIC 0 to 70 | TL2842BDR-8 vs TL3842BDR |
| TL2842BDR | Texas Instruments | $0.2606 | 30-V, 0.2A high Performance 500KHz current mode PWM with 16V/10V UVLO, 100% duty cycle, -40C to 85C 14-SOIC -40 to 85 | TL2842BDR-8 vs TL2842BDR |
TL2842BDR-8 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the TL2842BDR-8 is 2.7V to 5.5V, although it can operate down to 2.5V with reduced performance.
-
To ensure stability, use a 10nF to 100nF capacitor between the VCC and GND pins, and a 1kΩ to 10kΩ resistor between the VCC and VIN pins. Additionally, ensure the PCB layout is well-designed and follows good practice for high-frequency circuits.
-
The maximum output current of the TL2842BDR-8 is 150mA per channel, but it's recommended to limit the output current to 100mA per channel for reliable operation.
-
While the TL2842BDR-8 can be used as a voltage regulator, it's not recommended due to its limited output current and voltage range. Instead, use a dedicated voltage regulator IC for more reliable and efficient voltage regulation.
-
The output capacitor value depends on the desired output voltage ripple and stability. A general rule of thumb is to use a capacitor with a value between 10uF to 100uF, with a voltage rating of at least 1.5 times the output voltage.
