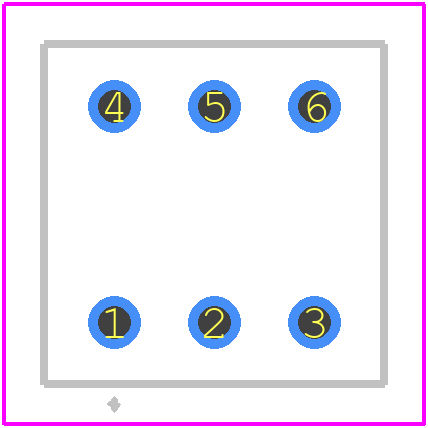

Footprint
-

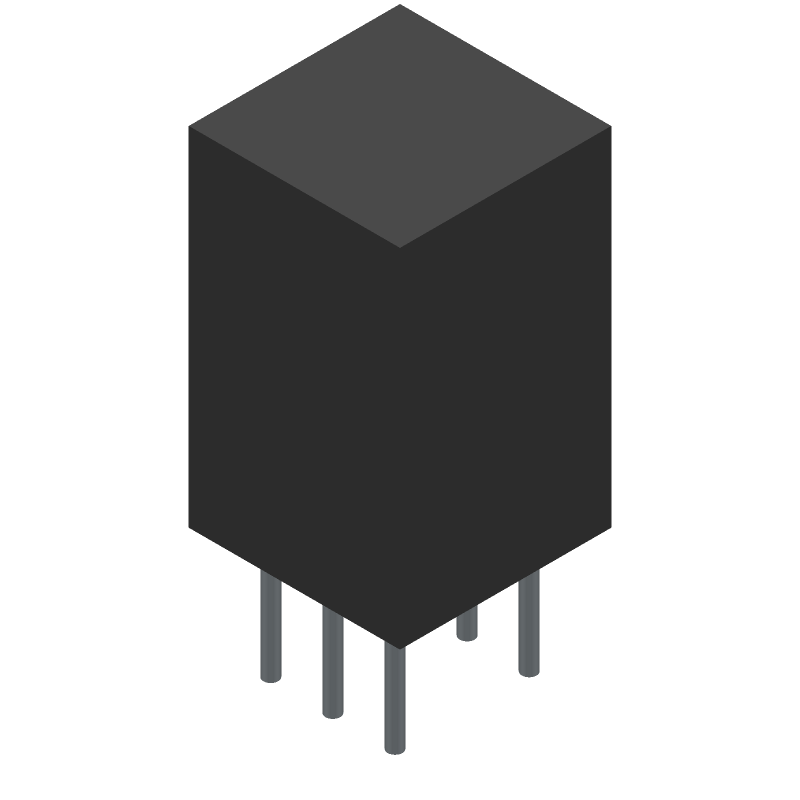

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TL2201OAZA1RDGR by E-Switch Inc
Results Overview of TL2201OAZA1RDGR by E-Switch Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
TL2201OAZA1RDGR Information
TL2201OAZA1RDGR by E-Switch Inc is a Special Switch.
Special Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for TL2201OAZA1RDGR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
15N9412
|
Newark | Ea Rohs Compliant: Yes |E-Switch TL2201OAZA1RDGR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now |
Part Details for TL2201OAZA1RDGR
TL2201OAZA1RDGR CAD Models
TL2201OAZA1RDGR Part Data Attributes
|
|
TL2201OAZA1RDGR
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
TL2201OAZA1RDGR
E-Switch Inc
Special Switch, DPDT, Momentary, 0.1A, 30VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-straight
|
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.70.00 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Angle | ||
| Actuator Length | 0.453 inch | |
| Actuator Material | ACETAL | |
| Actuator Travel | 2.4892 mm | |
| Actuator Type | PUSHBUTTON | |
| Body Breadth | 8.509 mm | |
| Body Height | 8.509 mm | |
| Body Length or Diameter | 8.509 mm | |
| Center Contact Material | PHOSPHOR BRONZE | |
| Center Contact Plating | SILVER | |
| Contact Current(DC)-Max | 0.1 A | |
| Contact (DC) Max Rating R Load | 0.1A@30VDC | |
| Contact Resistance | 0.05 mΩ | |
| Contact Voltage(DC)-Max | 30 V | |
| Dielectric Withstand Volts | 500VAC V | |
| Electrical Life | 10000 Cycle(s) | |
| End Contact Material | PHOSPHOR BRONZE | |
| End Contact Plating | SILVER | |
| Housing Material | POLYBUTYLENE TEREPHTHALATE | |
| Insulation Resistance | 100000000 Ω | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| PCB Hole Count | 6 | |
| Surface Mount | NO | |
| Switch Action | MOMENTARY | |
| Switch Function | DPDT | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
