TL-W5MC1 Information
TL-W5MC1 by OMRON Electronic Components LLC is a Proximity Sensor.
Proximity Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Part Details for TL-W5MC1

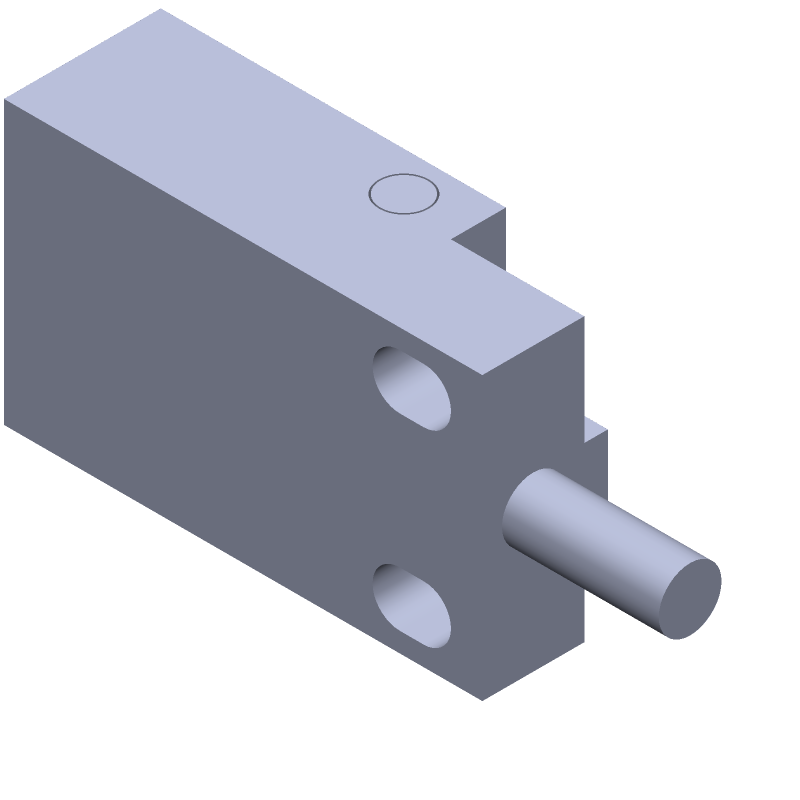

TL-W5MC1 CAD Models
TL-W5MC1 Part Data Attributes
|
|
TL-W5MC1
OMRON Electronic Components LLC
Buy Now
Datasheet
|
Compare Parts:
TL-W5MC1
OMRON Electronic Components LLC
Inductive Sensor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | OMRON CORP | |
| Reach Compliance Code | unknown | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | Omron Electronics | |
| Additional Feature | IP67 | |
| Body Breadth | 18 mm | |
| Body Height | 10 mm | |
| Body Length or Diameter | 30.5 mm | |
| Housing | ABS | |
| Measurement Range-Max (mm) | 5.5 mm | |
| Measurement Range-Min (mm) | 4.5 mm | |
| Operating Current-Max | 10 mA | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -25 °C | |
| Output Interface Type | 3-WIRE INTERFACE | |
| Output Type | VOLTAGE OUTPUT | |
| Package Shape/Style | RECTANGULAR | |
| Sensors/Transducers Type | PROXIMITY SENSOR,INDUCTIVE | |
| Supply Voltage-Max | 24 V | |
| Supply Voltage-Min | 12 V | |
| Termination Type | CABLE |
