TL-W3MB1 Information
TL-W3MB1 by OMRON Electronic Components LLC is a Proximity Sensor.
Proximity Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Part Details for TL-W3MB1

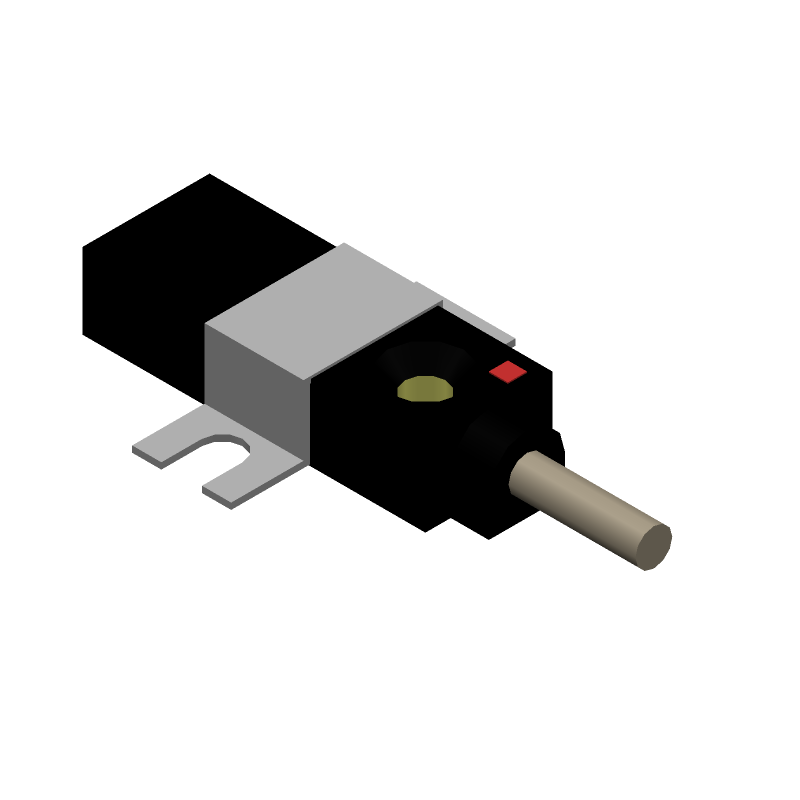

TL-W3MB1 CAD Models
TL-W3MB1 Part Data Attributes
|
|
TL-W3MB1
OMRON Electronic Components LLC
Buy Now
Datasheet
|
Compare Parts:
TL-W3MB1
OMRON Electronic Components LLC
Inductive Sensor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | OMRON CORP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | Omron Electronics | |
| Additional Feature | IP67 | |
| Body Breadth | 10 mm | |
| Body Height | 6 mm | |
| Body Length or Diameter | 27 mm | |
| Housing | ABS | |
| Measurement Range-Max (mm) | 3.3 mm | |
| Measurement Range-Min (mm) | 2.7 mm | |
| Operating Current-Max | 15 mA | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -25 °C | |
| Output Interface Type | 3-WIRE INTERFACE | |
| Output Type | VOLTAGE OUTPUT | |
| Package Shape/Style | RECTANGULAR | |
| Sensors/Transducers Type | PROXIMITY SENSOR,INDUCTIVE | |
| Supply Voltage-Max | 24 V | |
| Supply Voltage-Min | 12 V | |
| Termination Type | CABLE |
TL-W3MB1 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the TL-W3MB1 is -20°C to 70°C.
-
To ensure reliability in high-vibration environments, it is recommended to use a vibration-resistant mounting method, such as a screw or adhesive, and to follow the recommended PCB layout and design guidelines.
-
The maximum allowable current for the TL-W3MB1 is 100mA. Exceeding this current may cause damage to the device.
-
To troubleshoot issues with the TL-W3MB1, check the power supply voltage, ensure proper connection and wiring, and verify that the device is properly mounted and secured. If issues persist, consult the datasheet and application notes or contact OMRON Corporation support.
-
The TL-W3MB1 is not intended for use in safety-critical applications. If safety-critical applications are required, consult OMRON Corporation for alternative products or solutions that meet the necessary safety standards.
