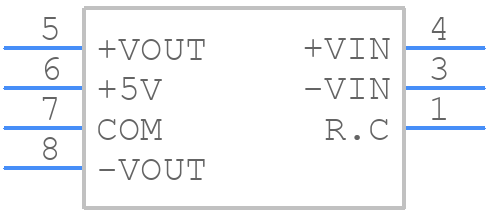

Part Symbol
-

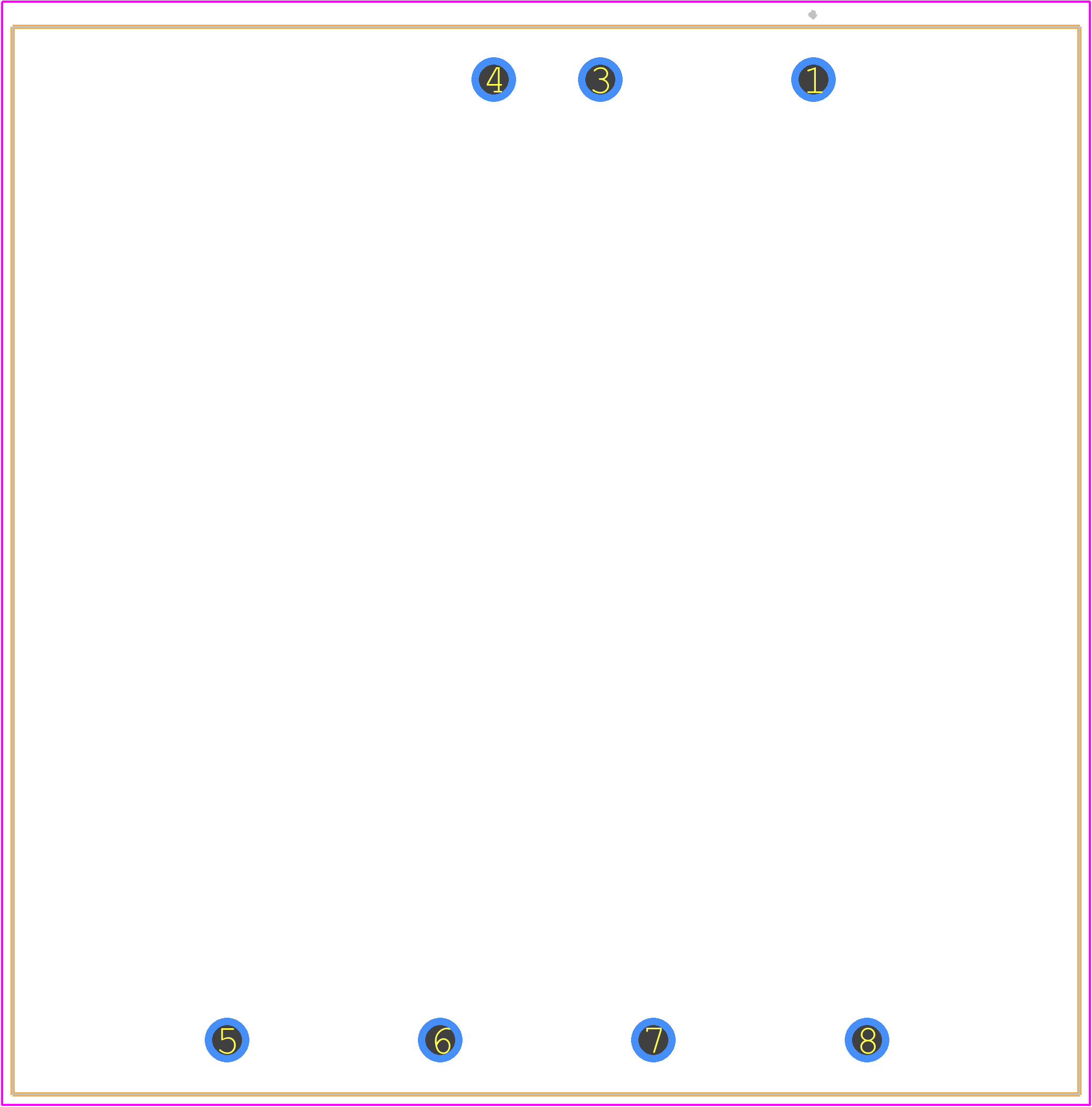

Footprint
-

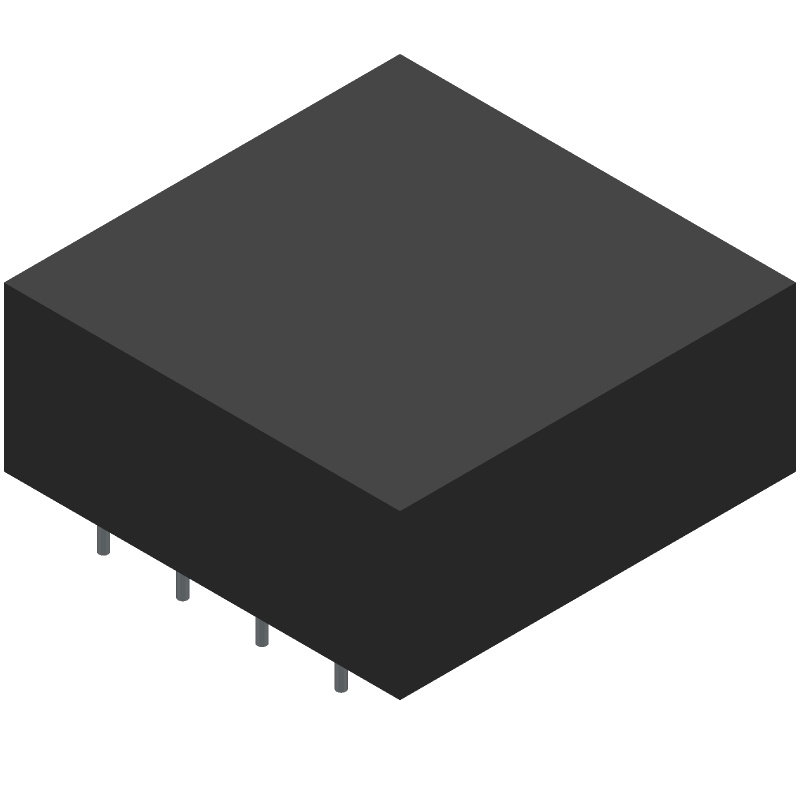

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TKA30B-B by Mean Well
Results Overview of TKA30B-B by Mean Well
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
TKA30B-B Information
TKA30B-B by Mean Well is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for TKA30B-B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1866-4916-ND
|
DigiKey | DC DC CONVERTER +/-12V 7.4W Min Qty: 1 Lead time: 12 Weeks Container: Tube | Temporarily Out of Stock |
|
$32.1210 / $33.9100 | Buy Now |
|
DISTI #
TKA30B-B
|
Avnet Americas | - Boxed Product (Development Kits) (Alt: TKA30B-B) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 19 Weeks, 3 Days Container: Box | 0 |
|
$25.4720 / $33.7400 | Buy Now |
|
DISTI #
709-TKA30B-B
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 25W 18-36Vin, +/-12V +/-31-+/-3100mA, EMI RoHS: Compliant | 0 |
|
$28.8100 / $48.1100 | Order Now |
|
DISTI #
72094498
|
RS | DC-DC Converter, +/-12V 7.4W, 310mA, 310mA, TKA30 Series Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$25.0700 / $27.8500 | RFQ |
|
|
Onlinecomponents.com | Module DC-DC 2-OUT 12V/-12V 0.31A/-0.31A 25W 7-Pin RoHS: Compliant |
68 In Stock |
|
$29.7300 / $52.2100 | Buy Now |
|
DISTI #
51745481
|
Verical | Module DC-DC 2-OUT -12V/12V -0.31A/0.31A 25W 7-Pin Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1936 | Americas - 68 |
|
$34.2907 / $65.5082 | Buy Now |
|
DISTI #
TKA30B-B
|
TME | Converter: DC/DC, 25W, Uin: 18÷36VDC, Uout: 5VDC, Uout2: 12VDC, 2"x2" Min Qty: 1 | 0 |
|
$26.5600 / $40.3900 | RFQ |
|
DISTI #
000000000003773080
|
Sager | Isolated DC/DC Converters - Through Hole 25W 18-36Vin, +/-12V +/-31-+/-3100mA, EMI Min Qty: 1 | 0 |
|
$23.8200 / $33.2300 | Buy Now |
|
|
Master Electronics | Module DC-DC 2-OUT 12V/-12V 0.31A/-0.31A 25W 7-Pin RoHS: Compliant |
68 In Stock |
|
$29.7300 / $52.2100 | Buy Now |
|
|
Neutron USA | Isolated DC/DC Converters 25W 18-36Vin, +/-12V +/-31-+/-3100mA, EMI | 50 |
|
$64.9900 | Buy Now |
Part Details for TKA30B-B
TKA30B-B CAD Models
TKA30B-B Part Data Attributes
|
|
TKA30B-B
Mean Well
Buy Now
Datasheet
|
Compare Parts:
TKA30B-B
Mean Well
Analog Circuit
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MEAN WELL ENTERPRISES CO LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 19 Weeks, 3 Days | |
| Samacsys Manufacturer | Mean Well | |
| Additional Feature | IT ALSO HAS -12V OUTPUT | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | CE, EAC, FCC, UKCA | |
| Efficiency (Main Output) | 82% | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 18 V | |
| JESD-30 Code | S-PDMA-P8 | |
| Length | 50.8 mm | |
| Line Regulation-Max | 1% | |
| Load Regulation-Max | 5% | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.31 A | |
| Output Voltage-Max | 12.6 V | |
| Output Voltage-Min | 11.4 V | |
| Output Voltage-Nom | 12 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DMA | |
| Package Shape | SQUARE | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Protections | OVER LOAD; SHORT CIRCUIT | |
| Ripple Voltage (Main Out) | 0.03535 Vrms | |
| Seated Height-Max | 21 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Terminal Form | PIN/PEG | |
| Terminal Position | DUAL | |
| Total Power Output-Max | 25 W | |
| Trim/Adjustable Output | NO | |
| Width | 50.8 mm |
