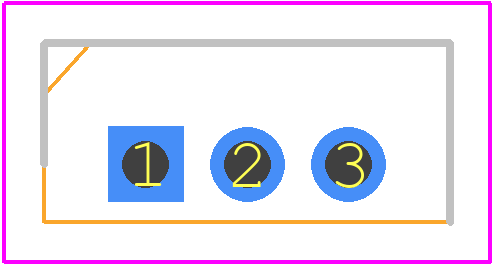

Footprint
-

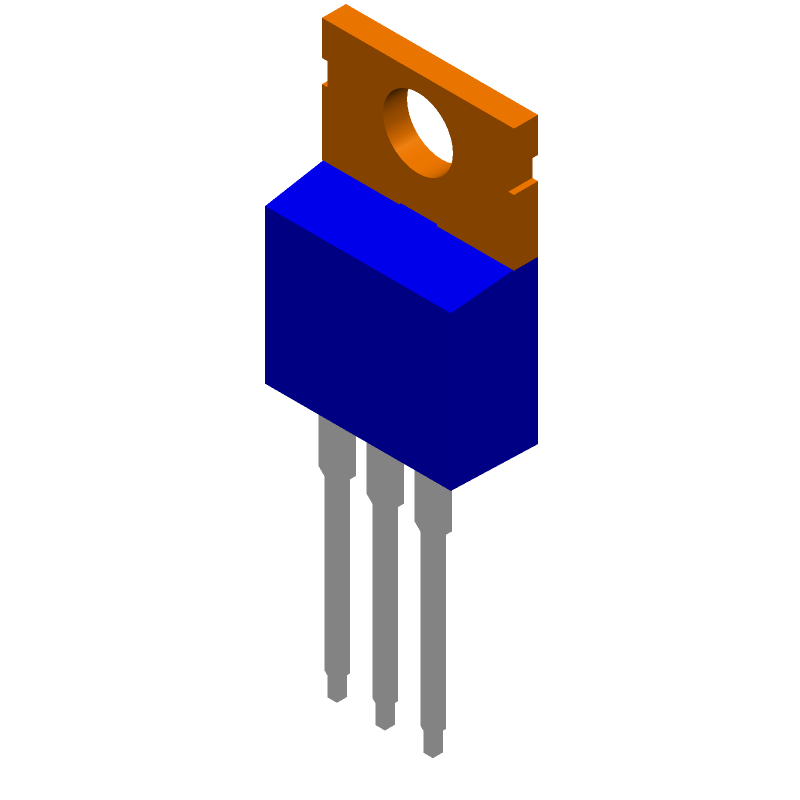

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TK3R1E04PL by Toshiba America Electronic Components
Results Overview of TK3R1E04PL by Toshiba America Electronic Components
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
TK3R1E04PL Information
TK3R1E04PL by Toshiba America Electronic Components is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for TK3R1E04PL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TK3R1E04PL,S1X(S
|
Avnet Asia | Transistor MOSFET N-CH 40V 128A 3-Pin TO-220 Tube (Alt: TK3R1E04PL,S1X(S) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 24 Weeks, 0 Days | 250 |
|
$1.4601 / $2.0685 | Buy Now |
Part Details for TK3R1E04PL
TK3R1E04PL CAD Models
TK3R1E04PL Part Data Attributes
|
|
TK3R1E04PL
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
TK3R1E04PL
Toshiba America Electronic Components
Power Field-Effect Transistor
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Package Description | FLANGE MOUNT, R-PSFM-T3 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2016-09-20 | |
| Samacsys Manufacturer | Toshiba | |
| Avalanche Energy Rating (Eas) | 35 mJ | |
| Case Connection | DRAIN | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 40 V | |
| Drain Current-Max (ID) | 100 A | |
| Drain-source On Resistance-Max | 0.0031 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Polarity/Channel Type | N-CHANNEL | |
| Pulsed Drain Current-Max (IDM) | 400 A | |
| Surface Mount | NO | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
Alternate Parts for TK3R1E04PL
This table gives cross-reference parts and alternative options found for TK3R1E04PL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TK3R1E04PL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| IPB100N04S2-04 | Infineon Technologies AG | Check for Price | Power Field-Effect Transistor, 100A I(D), 40V, 0.0033ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB, GREEN, PLASTIC, TO-263, 3 PIN | TK3R1E04PL vs IPB100N04S2-04 |
| IPB100N04S3-03 | Infineon Technologies AG | Check for Price | Power Field-Effect Transistor, 100A I(D), 40V, 0.0028ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB, GREEN, PLASTIC, TO-263, 3 PIN | TK3R1E04PL vs IPB100N04S3-03 |
| IPB100N04S204ATMA1 | Infineon Technologies AG | Check for Price | Power Field-Effect Transistor, 100A I(D), 40V, 0.0033ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-263AB, GREEN, PLASTIC, TO-263, 3 PIN | TK3R1E04PL vs IPB100N04S204ATMA1 |
| 934058038127 | NXP Semiconductors | Check for Price | 100A, 40V, 0.0035ohm, N-CHANNEL, Si, POWER, MOSFET, TO-262AA, PLASTIC, TO-262, I2PAK-3 | TK3R1E04PL vs 934058038127 |
| 934066421127 | NXP Semiconductors | Check for Price | 100A, 40V, 0.0032ohm, N-CHANNEL, Si, POWER, MOSFET, TO-220AB, PLASTIC, SC-46, 3 PIN | TK3R1E04PL vs 934066421127 |
| NP100N04NUJ-S18-AY | Renesas Electronics Corporation | Check for Price | NP100N04NUJ-S18-AY | TK3R1E04PL vs NP100N04NUJ-S18-AY |
