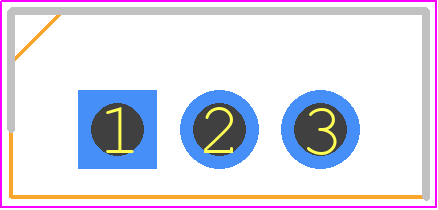

Footprint
-

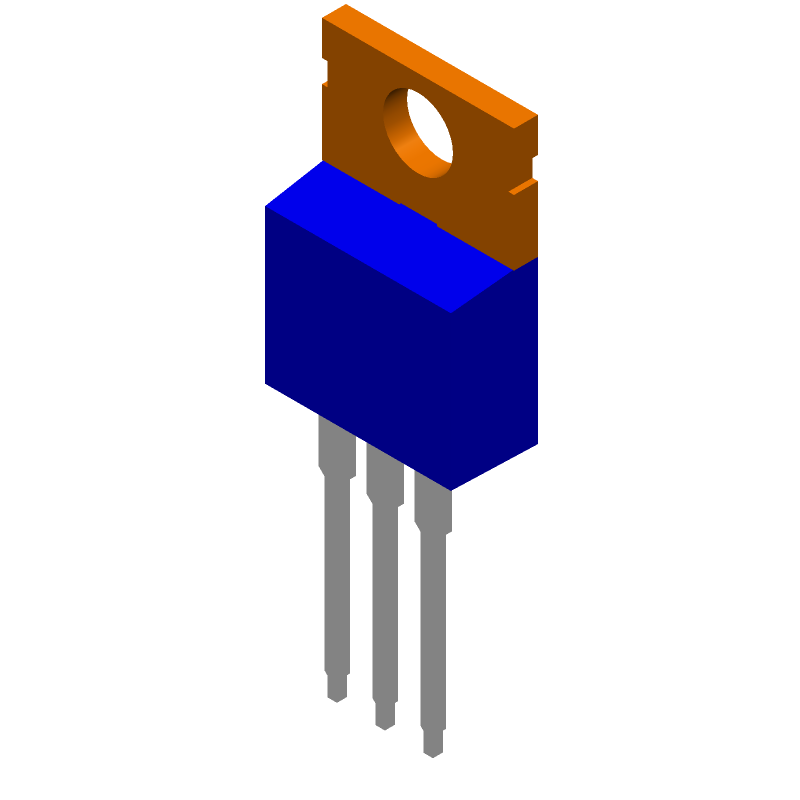

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TK34E10N1,S1X(S by Toshiba America Electronic Components
Results Overview of TK34E10N1,S1X(S by Toshiba America Electronic Components
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TK34E10N1,S1X(S Information
TK34E10N1,S1X(S by Toshiba America Electronic Components is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for TK34E10N1,S1X(S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
72AK4512
|
Newark | Mosfet, N-Ch, 100V, 75A, To-220, Channel Type:N Channel, Drain Source Voltage Vds:100V, Continuous Drain Current Id:75A, Transistor Mounting:Through Hole, Rds(On) Test Voltage:10V, Gate Source Threshold Voltage Max:4V Rohs Compliant: Yes |Toshiba TK34E10N1,S1X(S RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 40 |
|
$0.6970 / $1.3800 | Buy Now |
|
DISTI #
TK34E10N1
|
TME | Transistor: N-MOSFET, unipolar, 100V, 75A, 103W, TO220 Min Qty: 1 | 746 |
|
$0.7300 / $1.0200 | Buy Now |
|
DISTI #
TK34E10N1,S1X(S
|
EBV Elektronik | Trans MOSFET N 100V 75A 3Pin TO220 Tube (Alt: TK34E10N1,S1X(S) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 19 Weeks, 0 Days | EBV - 400 |
|
Buy Now | |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 50 | 300 |
|
$2.0800 / $2.2500 | Buy Now |
