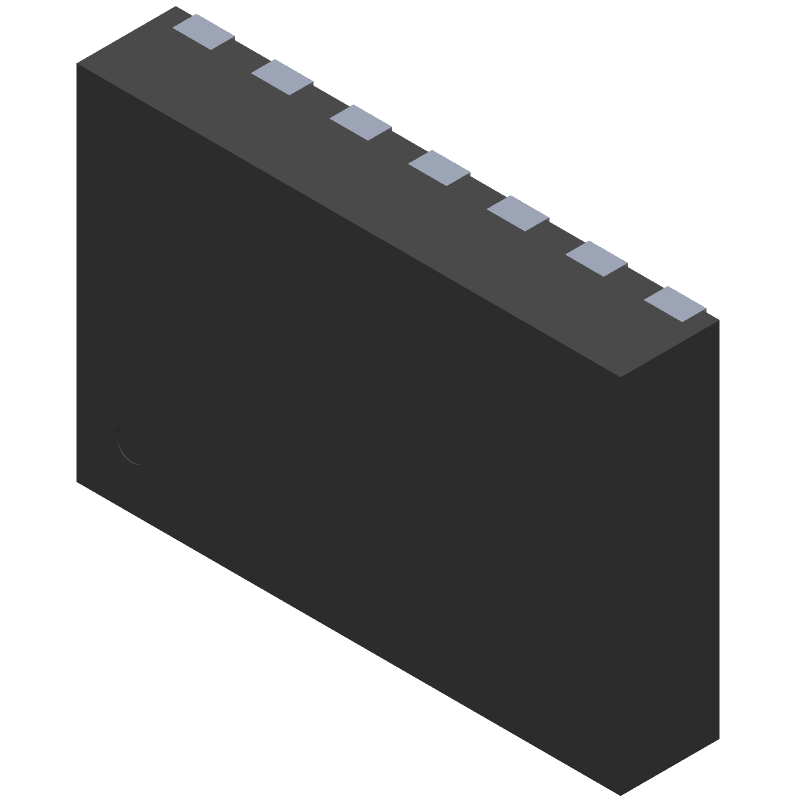

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TJA1145ATK/FD by NXP Semiconductors
Results Overview of TJA1145ATK/FD by NXP Semiconductors
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TJA1145ATK/FD Information
TJA1145ATK/FD by NXP Semiconductors is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for TJA1145ATK/FD
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Chip Stock | 16050 |
|
RFQ | ||
|
|
Vyrian | Telecommunications | 346 |
|
RFQ |
Part Details for TJA1145ATK/FD
TJA1145ATK/FD CAD Models
TJA1145ATK/FD Part Data Attributes
|
|
TJA1145ATK/FD
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
TJA1145ATK/FD
NXP Semiconductors
Interface Circuit
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Package Description | HVSON-14 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | NXP | |
| Data Rate | 5000 Mbps | |
| JESD-30 Code | R-PDSO-N14 | |
| Length | 3 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 14 | |
| Number of Transceivers | 1 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVSON | |
| Package Equivalence Code | SOLCC14,.12,25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1 mm | |
| Supply Current-Max | 65 mA | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Telecom IC Type | CAN FD TRANSCEIVER | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 4.5 mm |
