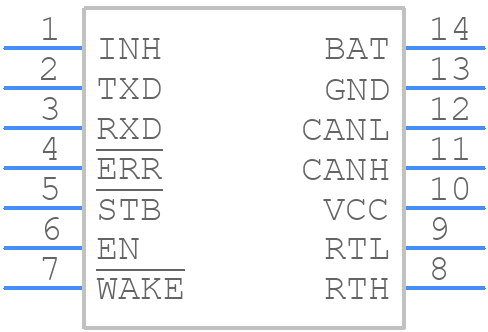

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TJA1055T by NXP Semiconductors
Results Overview of TJA1055T by NXP Semiconductors
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TJA1055T Information
TJA1055T by NXP Semiconductors is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for TJA1055T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 2236 |
|
RFQ | |
|
|
Win Source Electronics | Enhanced fault-tolerant CAN transceiver | 52490 |
|
$3.2652 / $4.8972 | Buy Now |
Part Details for TJA1055T
TJA1055T CAD Models
TJA1055T Part Data Attributes
|
|
TJA1055T
NXP Semiconductors
Buy Now
Datasheet
|
Compare Parts:
TJA1055T
NXP Semiconductors
IC DATACOM, INTERFACE CIRCUIT, PDSO14, 3.90 MM, PLASTIC, SOT-108-1, MS-012, SOP-14, Network Interface
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NXP SEMICONDUCTORS | |
| Part Package Code | SOIC | |
| Package Description | 3.90 MM, PLASTIC, SOT-108-1, MS-012, SOP-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | NXP | |
| JESD-30 Code | R-PDSO-G14 | |
| Length | 8.65 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 14 | |
| Number of Transceivers | 1 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 0.021 mA | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Telecom IC Type | INTERFACE CIRCUIT | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Width | 3.9 mm |
Alternate Parts for TJA1055T
This table gives cross-reference parts and alternative options found for TJA1055T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TJA1055T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TJA1055T/3/C,518 | NXP Semiconductors | $1.0772 | TJA1055 - Enhanced fault-tolerant CAN transceiver SOIC 14-Pin | TJA1055T vs TJA1055T/3/C,518 |
| 935285401518 | NXP Semiconductors | Check for Price | IC DATACOM, INTERFACE CIRCUIT, PDSO14, 3.90 MM, PLASTIC, MS-012, SOT-108-1, SOP-14, Network Interface | TJA1055T vs 935285401518 |
| TJA1055T/3/C,512 | NXP Semiconductors | Check for Price | TJA1055 - Enhanced fault-tolerant CAN transceiver SOIC 14-Pin | TJA1055T vs TJA1055T/3/C,512 |
| 935280277512 | NXP Semiconductors | Check for Price | IC DATACOM, INTERFACE CIRCUIT, PDSO14, 3.90 MM, PLASTIC, MS-012, SOT-108-1, SOP-14, Network Interface | TJA1055T vs 935280277512 |
| TJA1055T/3,518 | NXP Semiconductors | Check for Price | TJA1055 - Enhanced fault-tolerant CAN transceiver SOIC 14-Pin | TJA1055T vs TJA1055T/3,518 |
| TJA1055T,518 | NXP Semiconductors | Check for Price | TJA1055 - Enhanced fault-tolerant CAN transceiver SOIC 14-Pin | TJA1055T vs TJA1055T,518 |
| 935280281518 | NXP Semiconductors | Check for Price | IC DATACOM, INTERFACE CIRCUIT, PDSO14, 3.90 MM, PLASTIC, MS-012, SOT-108-1, SOP-14, Network Interface | TJA1055T vs 935280281518 |
| TJA1055T/C | NXP Semiconductors | Check for Price | IC DATACOM, INTERFACE CIRCUIT, PDSO14, 3.90 MM, ROHS COMPLIANT, PLASTIC, MS-012, SOT-108-1, SOP-14, Network Interface | TJA1055T vs TJA1055T/C |
| 935280277518 | NXP Semiconductors | Check for Price | IC DATACOM, INTERFACE CIRCUIT, PDSO14, 3.90 MM, PLASTIC, MS-012, SOT-108-1, SOP-14, Network Interface | TJA1055T vs 935280277518 |
TJA1055T Frequently Asked Questions (FAQ)
-
NXP provides a recommended PCB layout in the application note AN11524, which includes guidelines for component placement, routing, and thermal management to minimize electromagnetic interference (EMI) and ensure reliable operation.
-
The TJA1055T is a flexible transceiver that can be configured for various CAN bus topologies, including star, bus, and tree topologies. The configuration depends on the specific application requirements and can be achieved through the selection of external components, such as resistors and capacitors, and the configuration of the device's pins.
-
The maximum cable length supported by the TJA1055T depends on the specific application and the characteristics of the cable. In general, the TJA1055T can support cable lengths up to 1 km, but this may vary depending on the signal frequency, cable capacitance, and other factors. NXP provides guidelines for cable length calculation in the application note AN11524.
-
The TJA1055T has built-in common-mode voltage fault detection and protection. In the event of a common-mode voltage fault, the device will enter a high-impedance state to prevent damage to the transceiver and the connected microcontroller. The device will automatically recover when the fault is removed.
-
Yes, the TJA1055T is designed to operate in high-temperature environments, with a specified operating temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, and additional thermal management measures may be required to ensure reliable operation.
