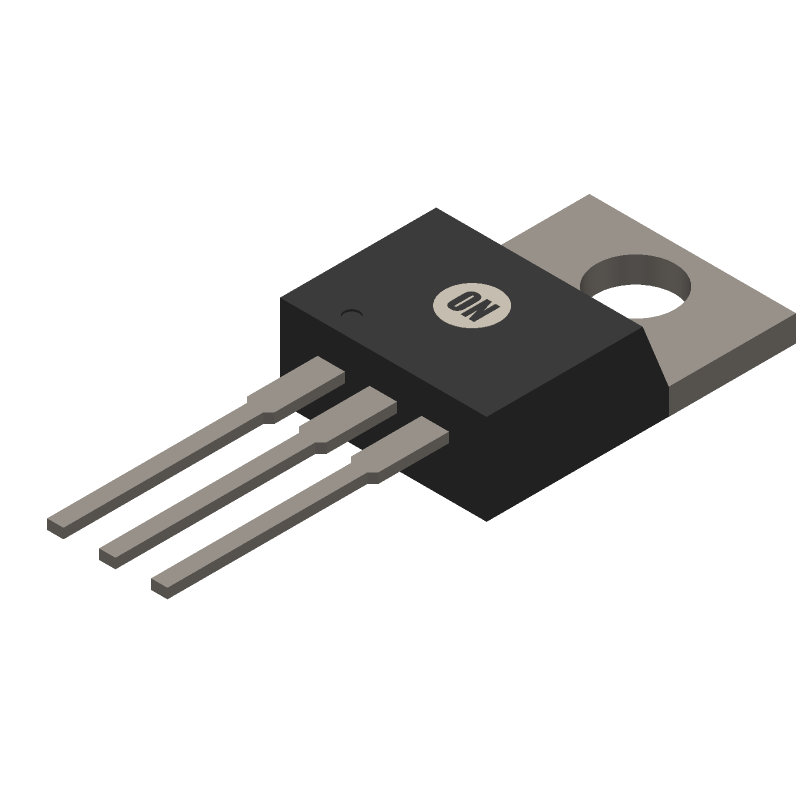

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TIP41CG by onsemi
Results Overview of TIP41CG by onsemi
- Distributor Offerings: (27 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
TIP41CG Information
TIP41CG by onsemi is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for TIP41CG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26M4157
|
Newark | Transistor, Npn, 100V, 6A, To-220, Transistor Polarity:Npn, Collector Emitter Voltage Max:100V, Continuous Collector Current:6A, Power Dissipation:65W, Transistor Mounting:Through Hole, No. Of Pins:3Pins, Transition Frequency:3Mhz Rohs Compliant: Yes |Onsemi TIP41CG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 6947 |
|
$0.6850 / $1.5200 | Buy Now |
|
DISTI #
TIP41CGOS-ND
|
DigiKey | TRANS NPN 100V 6A TO-220 Min Qty: 1 Lead time: 11 Weeks Container: Tube |
11068 In Stock |
|
$0.4343 / $1.7400 | Buy Now |
|
DISTI #
TIP41CG
|
Avnet Americas | Transistor GP BJT NPN 100V 6A 3-Pin TO-220AB Rail - Rail/Tube (Alt: TIP41CG) RoHS: Compliant Min Qty: 50 Package Multiple: 1 Lead time: 11 Weeks, 0 Days Container: Tube | 1059 |
|
$0.4289 / $0.4695 | Buy Now |
|
DISTI #
863-TIP41CG
|
Mouser Electronics | Bipolar Transistors - BJT 6A 100V 65W NPN RoHS: Compliant | 2693 |
|
$0.4470 / $1.5500 | Buy Now |
|
DISTI #
V36:1790_07311380
|
Arrow Electronics | Trans GP BJT NPN 100V 6A 2000mW 3-Pin(3+Tab) TO-220AB Tube Min Qty: 50 Package Multiple: 50 Lead time: 11 Weeks Date Code: 2351 | Americas - 8431 |
|
$0.4163 / $0.6213 | Buy Now |
|
|
Future Electronics | TIP Series 100 V 6 A NPN Complementary Silicon Plastic Power Transistor TO-220AB RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks Container: Tube | 17243Tube |
|
$0.4350 / $0.4900 | Buy Now |
|
|
Future Electronics | TIP Series 100 V 6 A NPN Complementary Silicon Plastic Power Transistor TO-220AB RoHS: Compliant pbFree: Yes Min Qty: 2100 Package Multiple: 50 Lead time: 11 Weeks Container: Tube | 0Tube |
|
$0.4000 / $0.4550 | Buy Now |
|
|
Future Electronics | TIP Series 100 V 6 A NPN Complementary Silicon Plastic Power Transistor TO-220AB RoHS: Compliant pbFree: Yes Min Qty: 2350 Package Multiple: 50 Lead time: 11 Weeks Container: Tube | 0Tube |
|
$0.4000 / $0.4450 | Buy Now |
|
|
Onlinecomponents.com | NPN Bipolar Power Transistor 100 V RoHS: Compliant |
4050 In Stock |
|
$0.3729 / $0.7740 | Buy Now |
|
DISTI #
88073434
|
Verical | Trans GP BJT NPN 100V 6A 2000mW 3-Pin(3+Tab) TO-220AB Tube Min Qty: 100 Package Multiple: 50 Date Code: 2415 | Americas - 9500 |
|
$1.4896 | Buy Now |
Part Details for TIP41CG
TIP41CG CAD Models
TIP41CG Part Data Attributes
|
|
TIP41CG
onsemi
Buy Now
Datasheet
|
Compare Parts:
TIP41CG
onsemi
NPN Bipolar Power Transistor 100 V, TO-220 3 LEAD STANDARD, 50-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-220 3 LEAD STANDARD | |
| Pin Count | 3 | |
| Manufacturer Package Code | 221A | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.29.00.95 | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | LEADFORM OPTIONS ARE AVAILABLE | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 6 A | |
| Collector-Emitter Voltage-Max | 100 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 15 | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 65 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 3 MHz |
Alternate Parts for TIP41CG
This table gives cross-reference parts and alternative options found for TIP41CG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TIP41CG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| BD680ALEADFREE | Central Semiconductor Corp | Check for Price | Power Bipolar Transistor, 4A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-126, Plastic/Epoxy, 3 Pin, | TIP41CG vs BD680ALEADFREE |
| JAN2N5666S | Microsemi Corporation | Check for Price | Power Bipolar Transistor, 5A I(C), 200V V(BR)CEO, 1-Element, NPN, Silicon, TO-5, Metal, 2 Pin, TO-5, 2 PIN | TIP41CG vs JAN2N5666S |
| BD678A | STMicroelectronics | Check for Price | COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS | TIP41CG vs BD678A |
| BD788G | onsemi | Check for Price | 4.0 A, 60 V PNP Bipolar Power Transistor, TO-225, 500-BLKBX | TIP41CG vs BD788G |
| BD682 | onsemi | Check for Price | 4.0 A, 100 V PNP Darlington Bipolar Power Transistor, TO-225, 500-BLKBX | TIP41CG vs BD682 |
| MJE701 | Fairchild Semiconductor Corporation | Check for Price | Power Bipolar Transistor, 4A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-126, Plastic/Epoxy, 3 Pin | TIP41CG vs MJE701 |
| TIP137G | onsemi | Check for Price | Darlington Complementary Silicon Power Transistor, TO-220 3 LEAD STANDARD, 50-TUBE | TIP41CG vs TIP137G |
| BD680G | onsemi | Check for Price | 4.0 A, 80 V PNP Darlington Bipolar Power Transistor, TO-225, 500-BLKBX | TIP41CG vs BD680G |
| BD680AG | onsemi | Check for Price | 4.0 A, 80 V PNP Darlington Bipolar Power Transistor, TO-225, 500-BLKBX | TIP41CG vs BD680AG |
| TIP126AU | onsemi | Check for Price | 5A, 80V, PNP, Si, POWER TRANSISTOR, PLASTIC, TO-220AB, 3 PIN | TIP41CG vs TIP126AU |
TIP41CG Frequently Asked Questions (FAQ)
-
The maximum SOA for the TIP41CG is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal resistance and maximum junction temperature. A safe operating area can be assumed to be around 10A and 80V.
-
To ensure linear operation, the TIP41CG should be biased in the active region, with a base-emitter voltage (Vbe) between 0.6V and 0.8V, and a collector-emitter voltage (Vce) greater than 1V. The base current should be limited to prevent saturation.
-
The maximum switching frequency for the TIP41CG is not explicitly stated in the datasheet, but it can be estimated based on the device's transition frequency (ft) and rise/fall times. A safe switching frequency can be assumed to be around 100 kHz to 200 kHz.
-
To protect the TIP41CG from ESD, handle the device by the body or use an anti-static wrist strap, and ensure the workspace is ESD-protected. Use ESD-sensitive devices and materials, and avoid touching the device's pins or leads.
-
The thermal resistance of the TIP41CG in a real-world application depends on the device's package, PCB layout, and cooling conditions. A typical thermal resistance for the TIP41CG in a TO-220 package can be estimated to be around 2°C/W to 5°C/W.
