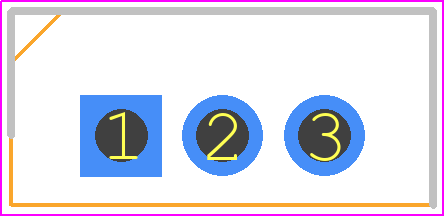

Footprint
-

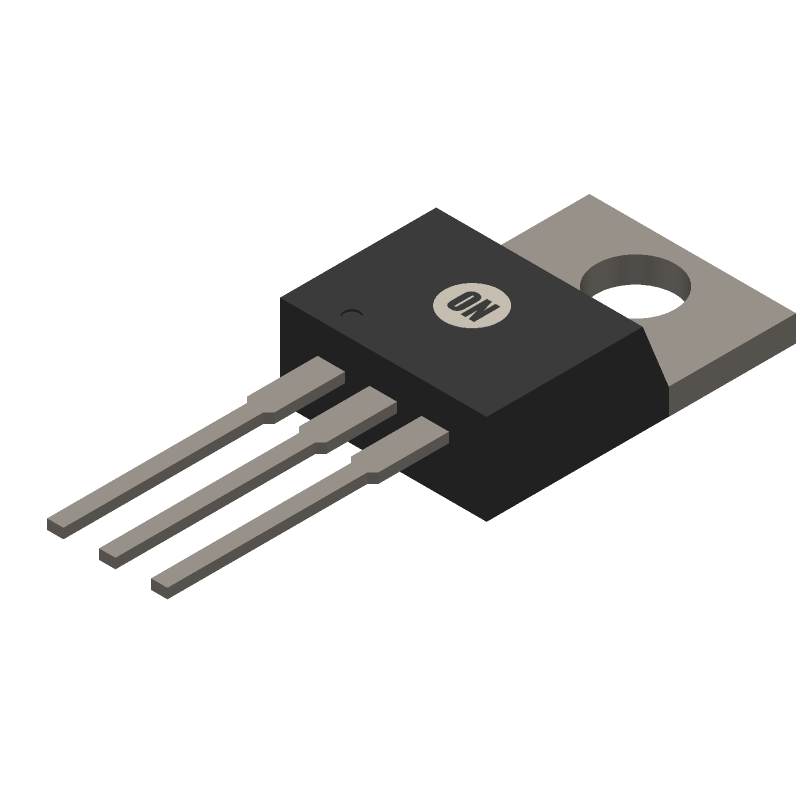

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TIP32CG by onsemi
Results Overview of TIP32CG by onsemi
- Distributor Offerings: (25 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TIP32CG Information
TIP32CG by onsemi is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for TIP32CG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26M4154
|
Newark | Transistor, Pnp, 100V, 3A, To-220Ab, Transistor Polarity:Pnp, Collector Emitter Voltage Max:100V, Continuous Collector Current:3A, Power Dissipation:40W, Transistor Mounting:Through Hole, No. Of Pins:3Pins, Transition Frequency:3Mhz Rohs Compliant: Yes |Onsemi TIP32CG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 6324 |
|
$0.3470 / $0.7950 | Buy Now |
|
DISTI #
TIP32CGOS-ND
|
DigiKey | TRANS PNP 100V 3A TO-220 Min Qty: 1 Lead time: 11 Weeks Container: Tube |
2533 In Stock |
|
$0.2160 / $1.0100 | Buy Now |
|
DISTI #
TIP32CG
|
Avnet Americas | Bipolar (BJT) Single Transistor, General Purpose, PNP, 100 V, 3 A, 40 W, TO-220AB, Through Hole - Rail/Tube (Alt: TIP32CG) RoHS: Compliant Min Qty: 50 Package Multiple: 1 Lead time: 11 Weeks, 0 Days Container: Tube | 0 |
|
$0.1838 / $0.2079 | Buy Now |
|
DISTI #
863-TIP32CG
|
Mouser Electronics | Bipolar Transistors - BJT 3A 100V 40W PNP RoHS: Compliant | 4431 |
|
$0.2170 / $0.7700 | Buy Now |
|
DISTI #
V36:1790_07323017
|
Arrow Electronics | Trans GP BJT PNP 100V 3A 2000mW 3-Pin(3+Tab) TO-220AB Rail Min Qty: 50 Package Multiple: 50 Lead time: 11 Weeks Date Code: 2420 | Americas - 14926 |
|
$0.2018 / $0.4323 | Buy Now |
|
DISTI #
E02:0323_00018775
|
Arrow Electronics | Trans GP BJT PNP 100V 3A 2000mW 3-Pin(3+Tab) TO-220AB Rail Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks Date Code: 2422 | Europe - 2600 |
|
$0.2076 / $0.4637 | Buy Now |
|
|
Future Electronics | TIP Series 100 V 3 A PNP Complementary Silicon Plastic Power Transistor TO-220AB RoHS: Not Compliant pbFree: Yes Min Qty: 50 Package Multiple: 50 Lead time: 11 Weeks Container: Tube | 3500Tube |
|
$0.2000 / $0.2200 | Buy Now |
|
|
Future Electronics | TIP Series 100 V 3 A PNP Complementary Silicon Plastic Power Transistor TO-220AB RoHS: Not Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks Container: Tube | 2350Tube |
|
$0.2000 / $0.2250 | Buy Now |
|
|
Onlinecomponents.com | Trans GP BJT PNP 100V 3A 3-Pin(3+Tab) TO-220AB Rail RoHS: Compliant |
2500 In Stock |
|
$0.1932 / $0.3681 | Buy Now |
|
DISTI #
81054151
|
Verical | Trans GP BJT PNP 100V 3A 2000mW 3-Pin(3+Tab) TO-220AB Rail Min Qty: 50 Package Multiple: 50 Date Code: 2420 | Americas - 14900 |
|
$0.2018 / $0.4323 | Buy Now |
Part Details for TIP32CG
TIP32CG CAD Models
TIP32CG Part Data Attributes
|
|
TIP32CG
onsemi
Buy Now
Datasheet
|
Compare Parts:
TIP32CG
onsemi
PNP Bipolar Power Transistor, TO-220 3 LEAD STANDARD, 50-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-220 3 LEAD STANDARD | |
| Pin Count | 3 | |
| Manufacturer Package Code | 221A | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.29.00.95 | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 3 A | |
| Collector-Emitter Voltage-Max | 100 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 10 | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | PNP | |
| Power Dissipation-Max (Abs) | 40 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 3 MHz |
Alternate Parts for TIP32CG
This table gives cross-reference parts and alternative options found for TIP32CG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TIP32CG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TIP32C | STMicroelectronics | Check for Price | COMPLEMENTARY SILICON POWER TRANSISTORS | TIP32CG vs TIP32C |
| TIP32C | Central Semiconductor Corp | Check for Price | Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN | TIP32CG vs TIP32C |
| TIP32C | Continental Device India Ltd | Check for Price | Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN | TIP32CG vs TIP32C |
| TIP32C | Microsemi Corporation | Check for Price | Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, PNP, Silicon, TO-220, Plastic/Epoxy, 2 Pin | TIP32CG vs TIP32C |
| TIP32C | onsemi | Check for Price | PNP Bipolar Power Transistor, 1200-BLKBG | TIP32CG vs TIP32C |
| TIP32C | Baneasa SA | Check for Price | Power Bipolar Transistor, 3A I(C), 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN | TIP32CG vs TIP32C |
| TIP32C | Crimson Semiconductor Inc | Check for Price | Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN | TIP32CG vs TIP32C |
| TIP32C | SPC Multicomp | Check for Price | Power Bipolar Transistor, | TIP32CG vs TIP32C |
| TIP32C | Bourns Inc | Check for Price | Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, PLASTIC, TO-220, FM-3 | TIP32CG vs TIP32C |
| TIP32C | Power Innovations International, Inc. | Check for Price | Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN | TIP32CG vs TIP32C |
TIP32CG Frequently Asked Questions (FAQ)
-
The maximum SOA for the TIP32CG is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal resistance and maximum junction temperature. A safe operating area can be determined by plotting the device's voltage and current ratings against the thermal resistance and maximum junction temperature.
-
To ensure the TIP32CG is properly biased for linear operation, the base-emitter voltage (VBE) should be set between 0.6V to 0.8V, and the collector-emitter voltage (VCE) should be set between 1V to 5V. Additionally, the base current should be limited to prevent overheating and ensure a stable operating point.
-
The recommended heatsink design for the TIP32CG depends on the specific application and power dissipation requirements. However, a general guideline is to use a heatsink with a thermal resistance of less than 10°C/W and a surface area of at least 10 cm². The heatsink should also be designed to minimize thermal resistance and ensure good thermal contact with the device.
-
While the TIP32CG is primarily designed for linear applications, it can be used in switching applications with some limitations. The device's switching speed is relatively slow, with a turn-on time of around 10 μs and a turn-off time of around 20 μs. However, the TIP32CG can be used in low-frequency switching applications, such as in power supplies or motor control circuits, with proper design considerations.
-
To protect the TIP32CG from ESD, it is recommended to handle the device with anti-static precautions, such as using an anti-static wrist strap or mat. The device should also be stored in an anti-static package or bag when not in use. Additionally, the circuit design should include ESD protection components, such as TVS diodes or ESD protection arrays, to prevent damage from electrostatic discharge.
