Transistors / Power Bipolar Transistors / TIP32C-BP
Datasheets
TIP32C-BP by: Micro Commercial Components

Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, ROHS COMPLIANT, PLASTIC, TO-220, 3 PIN

Part Details for TIP32C-BP by Micro Commercial Components

Results Overview of TIP32C-BP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TIP32C-BP Information

TIP32C-BP by Micro Commercial Components is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for TIP32C-BP

Part # Distributor Description Stock Price Buy
DISTI # TIP32C-BP-ND
DigiKey TRANS PNP 100V 3A TO-220AB Min Qty: 1 Lead time: 24 Weeks Container: Tube 2411
In Stock
  • 1 $1.2900
  • 50 $0.6052
  • 100 $0.5377
  • 500 $0.4189
  • 1,000 $0.3807
  • 2,000 $0.3485
  • 5,000 $0.3137
  • 10,000 $0.2922
$0.2922 / $1.2900 Buy Now
DISTI # 833-TIP32C-BP
Mouser Electronics Bipolar Transistors - BJT PNP -100V -3A 40W RoHS: Compliant 2938
  • 1 $1.2500
  • 10 $1.1400
  • 25 $0.6060
  • 100 $0.5300
  • 500 $0.4190
  • 1,000 $0.3490
  • 2,500 $0.3420
  • 5,000 $0.3130
$0.3130 / $1.2500 Buy Now
Vyrian Transistors 3883
RFQ

Part Details for TIP32C-BP

TIP32C-BP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

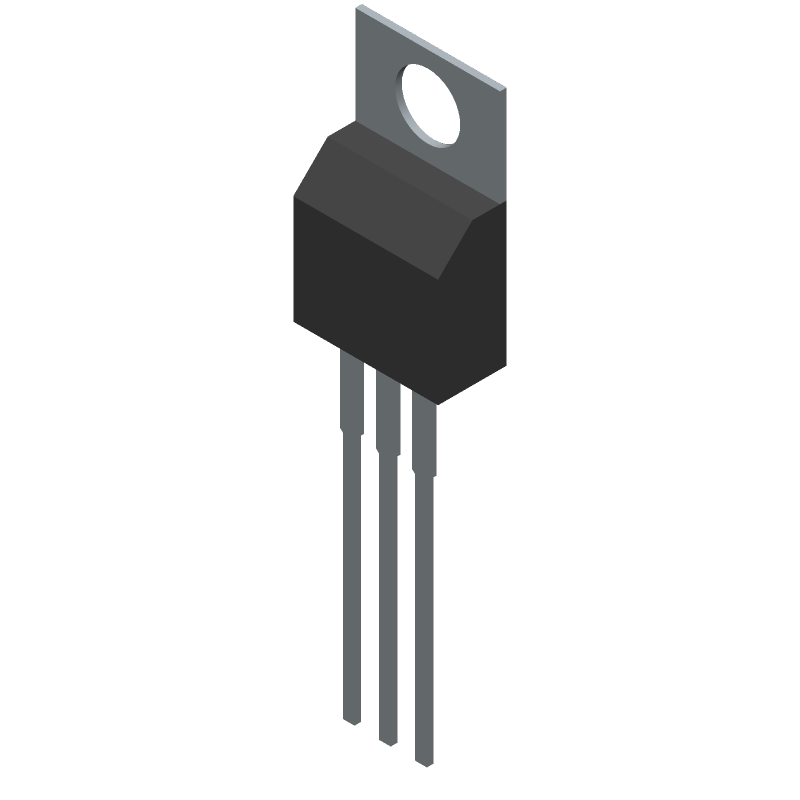

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TIP32C-BP Part Data Attributes

Parametric Data
TIP32C-BP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
TIP32C-BP Micro Commercial Components Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, ROHS COMPLIANT, PLASTIC, TO-220, 3 PIN
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Part Package Code TO-220AB
Package Description TO-220, 3 PIN
Pin Count 3
Reach Compliance Code not_compliant
ECCN Code EAR99
Samacsys Manufacturer MCC
Collector Current-Max (IC) 3 A
Collector-Emitter Voltage-Max 100 V
Configuration SINGLE
DC Current Gain-Min (hFE) 25
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 3
Operating Temperature-Max 150 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) 260
Polarity/Channel Type PNP
Qualification Status Not Qualified
Surface Mount NO
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 10
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 3 MHz

Alternate Parts for TIP32C-BP

This table gives cross-reference parts and alternative options found for TIP32C-BP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TIP32C-BP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TIP32C Fairchild Semiconductor Corporation $0.1889 Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN TIP32C-BP vs TIP32C
BD242C Fairchild Semiconductor Corporation Check for Price Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN TIP32C-BP vs BD242C
TIP32CJ69Z Fairchild Semiconductor Corporation Check for Price Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN TIP32C-BP vs TIP32CJ69Z
BD242CTU Fairchild Semiconductor Corporation Check for Price Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN TIP32C-BP vs BD242CTU
TIP32C Galaxy Microelectronics Check for Price Medium Power PNP Bipolar Transistor; Polarity: PNP; V(BR)CEO Min (V): 100V; IC (A): 3A; HFE Min: 10; HFE Max: 50; VCE (V): 4V; IC (mA): 3000mA; VCE(SAT) (V): 1.2V; IC (mA)1: 3000mA; IB (mA): 375mA; FT Min (MHz): 3 MHz; PTM Max (W): 2W; Package: TO-220AB; package_code: TO-220AB; mfr_package_code: TO-220AB TIP32C-BP vs TIP32C
TIP32C Taitron Components Inc Check for Price Power Bipolar Transistor, TIP32C-BP vs TIP32C
TIP32C Samsung Semiconductor Check for Price Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN TIP32C-BP vs TIP32C
TIP32C Micro Commercial Components Check for Price Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, PLASTIC, TO-220, 3 PIN TIP32C-BP vs TIP32C
TIP32CTU Fairchild Semiconductor Corporation Check for Price Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, PLASTIC PACKAGE-3 TIP32C-BP vs TIP32CTU
