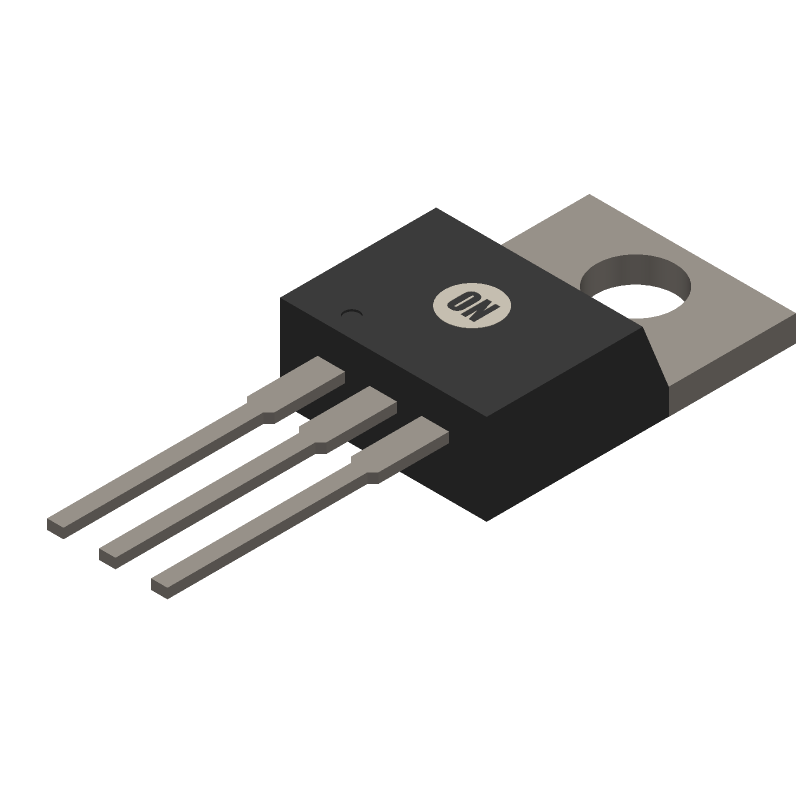

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TIP32AG by onsemi
Results Overview of TIP32AG by onsemi
- Distributor Offerings: (23 listings)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TIP32AG Information
TIP32AG by onsemi is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for TIP32AG
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
97Y9659
|
Newark | Transistor, Pnp, -60V, 40W, To-220, Transistor Polarity:Pnp, Collector Emitter Voltage V(Br)Ceo:-60V, Transition Frequency Ft:3Mhz, Power Dissipation Pd:40W, Dc Collector Current:-3A, Dc Current Gain Hfe:10Hfe, Transistor Case Rohs Compliant: Yes |Onsemi TIP32AG RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 3322 |
|
$0.5280 / $1.2900 | Buy Now |
|
DISTI #
TIP32AGOS-ND
|
DigiKey | TRANS PNP 60V 3A TO-220 Min Qty: 1 Lead time: 8 Weeks Container: Tube |
6171 In Stock |
|
$0.3095 / $1.3600 | Buy Now |
|
DISTI #
TIP32AG
|
Avnet Americas | Bipolar (BJT) Single Transistor, PNP, 60 V, 3 A, 40 W, TO-220, Through Hole - Rail/Tube (Alt: TIP32AG) RoHS: Compliant Min Qty: 2050 Package Multiple: 50 Lead time: 8 Weeks, 0 Days Container: Tube | 0 |
|
$0.2925 / $0.3150 | Buy Now |
|
DISTI #
863-TIP32AG
|
Mouser Electronics | Bipolar Transistors - BJT 3A 60V 40W PNP RoHS: Compliant | 420 |
|
$0.3090 / $1.3600 | Buy Now |
|
|
Onlinecomponents.com | PNP Bipolar Power Transistor 60 V RoHS: Compliant |
1650 In Stock |
|
$0.2972 / $0.3667 | Buy Now |
|
DISTI #
86044530
|
Verical | Trans GP BJT PNP 60V 3A 2000mW 3-Pin(3+Tab) TO-220AB Tube Min Qty: 802 Package Multiple: 1 Date Code: 1401 | Americas - 3539 |
|
$0.4318 / $0.4681 | Buy Now |
|
DISTI #
86044102
|
Verical | Trans GP BJT PNP 60V 3A 2000mW 3-Pin(3+Tab) TO-220AB Tube Min Qty: 802 Package Multiple: 1 Date Code: 1501 | Americas - 2500 |
|
$0.4318 / $0.4681 | Buy Now |
|
DISTI #
84355826
|
Verical | Trans GP BJT PNP 60V 3A 2000mW 3-Pin(3+Tab) TO-220AB Tube Min Qty: 150 Package Multiple: 50 Date Code: 2425 | Americas - 1650 |
|
$0.3900 / $0.4314 | Buy Now |
|
|
Bristol Electronics | 16720 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 7 | 50 |
|
$0.4875 / $0.7500 | Buy Now |
Part Details for TIP32AG
TIP32AG CAD Models
TIP32AG Part Data Attributes
|
|
TIP32AG
onsemi
Buy Now
Datasheet
|
Compare Parts:
TIP32AG
onsemi
PNP Bipolar Power Transistor 60 V, TO-220 3 LEAD STANDARD, 50-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-220 3 LEAD STANDARD | |
| Pin Count | 3 | |
| Manufacturer Package Code | 221A | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.29.00.95 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 3 A | |
| Collector-Emitter Voltage-Max | 60 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 10 | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | PNP | |
| Power Dissipation-Max (Abs) | 40 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 3 MHz |
Alternate Parts for TIP32AG
This table gives cross-reference parts and alternative options found for TIP32AG. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TIP32AG, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TIP32A | Bourns Inc | Check for Price | Power Bipolar Transistor, 3A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, PLASTIC, TO-220, FM-3 | TIP32AG vs TIP32A |
| TIP32A | Central Semiconductor Corp | Check for Price | Power Bipolar Transistor, 3A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN | TIP32AG vs TIP32A |
| TIP32ATIN/LEAD | Central Semiconductor Corp | Check for Price | Power Bipolar Transistor, | TIP32AG vs TIP32ATIN/LEAD |
| TIP32A | ABB Industrial Connection and Solution | Check for Price | Power Bipolar Transistor | TIP32AG vs TIP32A |
| TIP32A | Power Innovations International, Inc. | Check for Price | Power Bipolar Transistor, 3A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN | TIP32AG vs TIP32A |
| D45C8 | onsemi | Check for Price | PNP Power Amplifier, TO-220-3, 300-BLKBG | TIP32AG vs D45C8 |
| TIP32A | General Transistor Corp | Check for Price | Power Bipolar Transistor, 3A I(C), PNP | TIP32AG vs TIP32A |
TIP32AG Frequently Asked Questions (FAQ)
-
The maximum SOA for the TIP32AG is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal resistance and maximum junction temperature. A safe operating area can be assumed to be around 10A and 30V.
-
To ensure linear operation, the TIP32AG should be biased in the active region, with a base-emitter voltage (Vbe) between 0.6V and 0.8V, and a collector-emitter voltage (Vce) greater than 1V. The base current should be limited to prevent saturation.
-
The recommended heatsink for the TIP32AG depends on the application and power dissipation requirements. A heatsink with a thermal resistance of around 10°C/W or lower is recommended. The TO-220 package of the TIP32AG has a thermal pad that should be connected to the heatsink.
-
While the TIP32AG is primarily designed for linear applications, it can be used in switching applications with some limitations. The device's switching speed is relatively slow, with a turn-on time of around 10μs and a turn-off time of around 20μs. The maximum switching frequency is around 10kHz.
-
To protect the TIP32AG from ESD, handle the device by the body or use an anti-static wrist strap. Ensure the workspace is ESD-safe, and use ESD-protective packaging and storage materials. Avoid touching the device's pins or leads, and use a soldering iron with an ESD-safe tip.
