Transistors / Power Bipolar Transistors / TIP31C
Datasheets
TIP31C by:

Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN

Part Details for TIP31C by Bourns Inc

Results Overview of TIP31C by Bourns Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TIP31C Information

TIP31C by Bourns Inc is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Part Details for TIP31C

TIP31C CAD Models

  • Part Symbol

    Part Symbol

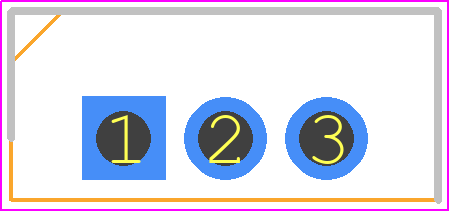

  • Footprint

    footprint

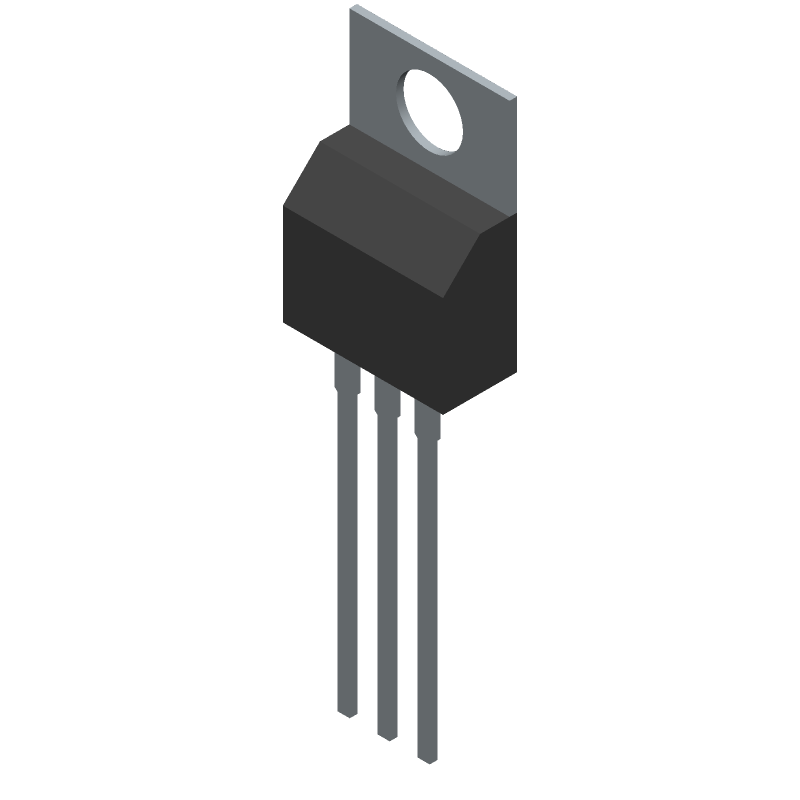

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TIP31C Part Data Attributes

Parametric Data
TIP31C Bourns Inc
Buy Now Datasheet
Compare Parts:
TIP31C Bourns Inc Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN
Pbfree Code No
Rohs Code No
Part Life Cycle Code Obsolete
Ihs Manufacturer BOURNS INC
Part Package Code TO-220AB
Package Description TO-220, 3 PIN
Pin Count 3
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer Bourns
Case Connection COLLECTOR
Collector Current-Max (IC) 3 A
Collector-Emitter Voltage-Max 100 V
Configuration SINGLE
DC Current Gain-Min (hFE) 10
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
Number of Elements 1
Number of Terminals 3
Operating Temperature-Max 150 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type NPN
Power Dissipation-Max (Abs) 40 W
Qualification Status Not Qualified
Surface Mount NO
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application SWITCHING
Transistor Element Material SILICON

Alternate Parts for TIP31C

This table gives cross-reference parts and alternative options found for TIP31C. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TIP31C, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TIP31CW Motorola Semiconductor Products Check for Price Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin TIP31C vs TIP31CW
TIP31C Secos Corporation Check for Price Power Bipolar Transistor TIP31C vs TIP31C
TIP31C-R STMicroelectronics Check for Price POWER TRANSISTOR TIP31C vs TIP31C-R
TIP31C-DR6260 Intersil Corporation Check for Price 5A, 100V, NPN, Si, POWER TRANSISTOR, TO-220AB TIP31C vs TIP31C-DR6260
TIP31CBS onsemi Check for Price 3A, 100V, NPN, Si, POWER TRANSISTOR, PLASTIC, TO-220AB, 3 PIN TIP31C vs TIP31CBS
TIP31-C Secos Corporation Check for Price Power Bipolar Transistor TIP31C vs TIP31-C
TIP31C Microsemi Corporation Check for Price Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, NPN, Silicon, TO-220, Plastic/Epoxy, 3 Pin, PLASTIC, TO-220, 3 PIN TIP31C vs TIP31C
TIP31CBV onsemi Check for Price 3A, 100V, NPN, Si, POWER TRANSISTOR, PLASTIC, TO-220AB, 3 PIN TIP31C vs TIP31CBV
TIP31CBU onsemi Check for Price 3A, 100V, NPN, Si, POWER TRANSISTOR, PLASTIC, TO-220AB, 3 PIN TIP31C vs TIP31CBU
Part Number Manufacturer Composite Price Description Compare
TIP31CS Motorola Mobility LLC Check for Price 3A, 100V, NPN, Si, POWER TRANSISTOR, TO-220AB TIP31C vs TIP31CS
TIP31C-DR6280 Intersil Corporation Check for Price 5A, 100V, NPN, Si, POWER TRANSISTOR, TO-220AB TIP31C vs TIP31C-DR6280
TIP31CUA Motorola Mobility LLC Check for Price 3A, 100V, NPN, Si, POWER TRANSISTOR, TO-220AB TIP31C vs TIP31CUA
TIP31C-6258 Intersil Corporation Check for Price 5A, 100V, NPN, Si, POWER TRANSISTOR, TO-220AB TIP31C vs TIP31C-6258
TIP31C-6263 Harris Semiconductor Check for Price Power Bipolar Transistor, 5A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin TIP31C vs TIP31C-6263
TIP31CTIN/LEAD Central Semiconductor Corp Check for Price Power Bipolar Transistor, TIP31C vs TIP31CTIN/LEAD
TIP31C Continental Device India Ltd Check for Price Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN TIP31C vs TIP31C
TIP31C SPC Multicomp Check for Price Power Bipolar Transistor, TIP31C vs TIP31C
TIP31C-6226 Intersil Corporation Check for Price 5A, 100V, NPN, Si, POWER TRANSISTOR, TO-220AB TIP31C vs TIP31C-6226
TIP31CAJ Motorola Mobility LLC Check for Price 3A, 100V, NPN, Si, POWER TRANSISTOR, TO-220AB TIP31C vs TIP31CAJ
