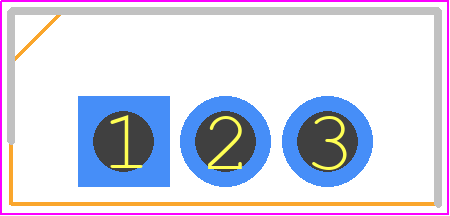

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TIP31C-BP by Micro Commercial Components
Results Overview of TIP31C-BP by Micro Commercial Components
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TIP31C-BP Information
TIP31C-BP by Micro Commercial Components is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for TIP31C-BP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TIP31C-BP-ND
|
DigiKey | TRANS NPN 100V 3A TO-220AB Min Qty: 1 Lead time: 24 Weeks Container: Tube |
1119 In Stock |
|
$0.3032 / $1.3300 | Buy Now |
|
DISTI #
833-TIP31C-BP
|
Mouser Electronics | Bipolar Transistors - BJT NPN 100V 3A 40W RoHS: Compliant | 2701 |
|
$0.3030 / $1.1900 | Buy Now |
|
|
Vyrian | Transistors | 1528 |
|
RFQ |
Part Details for TIP31C-BP
TIP31C-BP CAD Models
TIP31C-BP Part Data Attributes
|
|
TIP31C-BP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
TIP31C-BP
Micro Commercial Components
Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, ROHS COMPLIANT, PLASTIC, TO-220, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Part Package Code | TO-220AB | |
| Package Description | TO-220, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | MCC | |
| Collector Current-Max (IC) | 3 A | |
| Collector-Emitter Voltage-Max | 100 V | |
| Configuration | SINGLE | |
| DC Current Gain-Min (hFE) | 25 | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 3 MHz |
Alternate Parts for TIP31C-BP
This table gives cross-reference parts and alternative options found for TIP31C-BP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TIP31C-BP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TIP31CTU | onsemi | $0.3182 | NPN Bipolar Power Transistor, TO-220-3, 1000-TUBE | TIP31C-BP vs TIP31CTU |
| TIP31CL-T6S-K | Unisonic Technologies Co Ltd | Check for Price | Power Bipolar Transistor | TIP31C-BP vs TIP31CL-T6S-K |
| BD241C | Samsung Semiconductor | Check for Price | Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN | TIP31C-BP vs BD241C |
| TIP31CTU | Fairchild Semiconductor Corporation | Check for Price | NPN Epitaxial Silicon Transistor, TO-220, MOLDED, 3LEAD, JEDEC VARIATION AB, 1000/RAIL | TIP31C-BP vs TIP31CTU |
TIP31C-BP Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the TIP31C-BP is -55°C to 150°C.
-
Yes, the TIP31C-BP is suitable for switching applications due to its high current gain and fast switching times.
-
The maximum collector-emitter voltage (Vce) rating for the TIP31C-BP is 100V.
-
To ensure reliable operation of the TIP31C-BP in high-temperature environments, it is recommended to derate the power dissipation according to the temperature derating curve provided in the datasheet.
-
Yes, the TIP31C-BP can be used in linear amplifier applications due to its high current gain and low saturation voltage.
