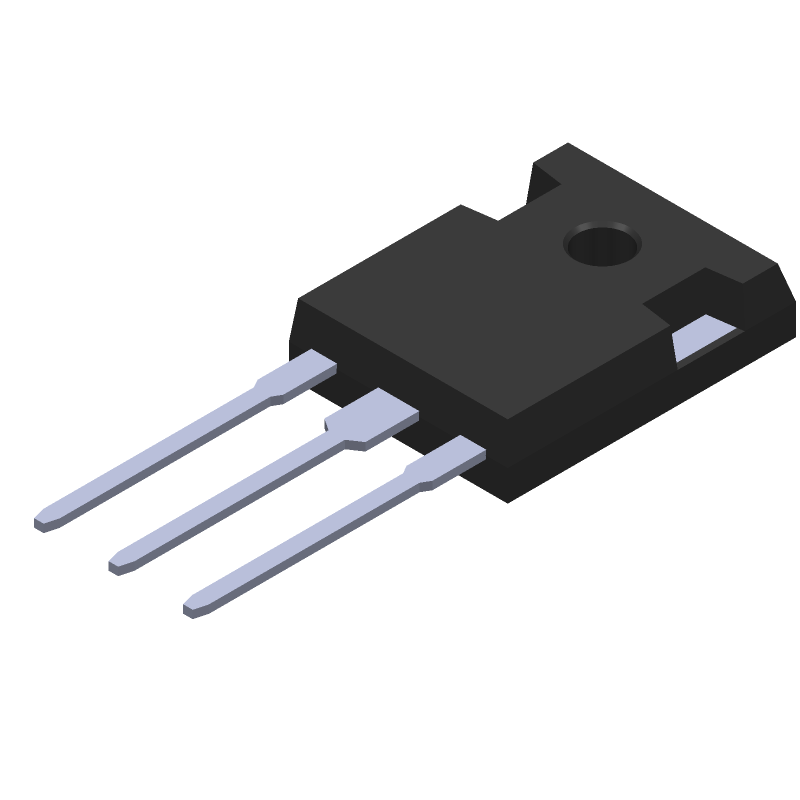

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TIP140G by onsemi
Results Overview of TIP140G by onsemi
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TIP140G Information
TIP140G by onsemi is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for TIP140G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TIP140G
|
Avnet Silica | Transistor Darlington NPN 60V 10A 3Pin TO247 Rail (Alt: TIP140G) RoHS: Compliant Min Qty: 30 Package Multiple: 30 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
TIP140G
|
EBV Elektronik | Transistor Darlington NPN 60V 10A 3Pin TO247 Rail (Alt: TIP140G) RoHS: Compliant Min Qty: 30 Package Multiple: 30 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Flip Electronics | Stock, ship today | 52 |
|
RFQ | |
|
|
Vyrian | Transistors | 33 |
|
RFQ |
Part Details for TIP140G
TIP140G CAD Models
TIP140G Part Data Attributes
|
|
TIP140G
onsemi
Buy Now
Datasheet
|
Compare Parts:
TIP140G
onsemi
10 A, 60 V NPN Darlington Bipolar Power Transistor, TO-247, 30-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-247 | |
| Package Description | LEAD FREE, CASE 340D-02, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 340D-02 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 2 Days | |
| Samacsys Manufacturer | onsemi | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 10 A | |
| Collector-Emitter Voltage-Max | 60 V | |
| Configuration | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | |
| DC Current Gain-Min (hFE) | 500 | |
| JEDEC-95 Code | TO-247 | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 125 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 4 MHz |
Alternate Parts for TIP140G
This table gives cross-reference parts and alternative options found for TIP140G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TIP140G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TIP140 | Fairchild Semiconductor Corporation | Check for Price | Power Bipolar Transistor, 10A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, TO-3P, 3 PIN | TIP140G vs TIP140 |
| TIP140 | Bourns Inc | Check for Price | Power Bipolar Transistor, 10A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, PLASTIC, SOT-93, 3 PIN | TIP140G vs TIP140 |
| TIP140 | Texas Instruments | Check for Price | 10A, 60V, NPN, Si, POWER TRANSISTOR | TIP140G vs TIP140 |
| TIP140 | STMicroelectronics | Check for Price | 10A, 60V, NPN, Si, POWER TRANSISTOR, TO-218 | TIP140G vs TIP140 |
TIP140G Frequently Asked Questions (FAQ)
-
The maximum safe operating area (SOA) for the TIP140G is not explicitly stated in the datasheet, but it can be determined by consulting the onsemi application note AND8193/D, which provides guidance on SOA calculations for power transistors.
-
To ensure the TIP140G is properly biased for linear operation, follow the recommended biasing scheme outlined in the datasheet, and consider using a voltage regulator to maintain a stable Vcc. Additionally, ensure the base-emitter voltage (Vbe) is within the recommended range (typically 0.6-0.8V) to maintain linear operation.
-
The recommended heatsink design for the TIP140G involves using a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K, and a heatsink with a thermal resistance of less than 10°C/W. Consult the onsemi application note AND8194/D for more detailed guidance on heatsink design.
-
While the TIP140G is primarily designed for linear applications, it can be used in switching applications with proper design considerations. However, the transistor's switching characteristics, such as turn-on and turn-off times, may not be optimized for high-frequency switching. Consult the datasheet and onsemi application notes for guidance on using the TIP140G in switching applications.
-
To protect the TIP140G from electrostatic discharge (ESD), follow proper handling and storage procedures, such as using anti-static bags, wrist straps, and mats. Additionally, consider using ESD protection devices, such as TVS diodes, in the circuit design to protect the transistor from ESD events.
