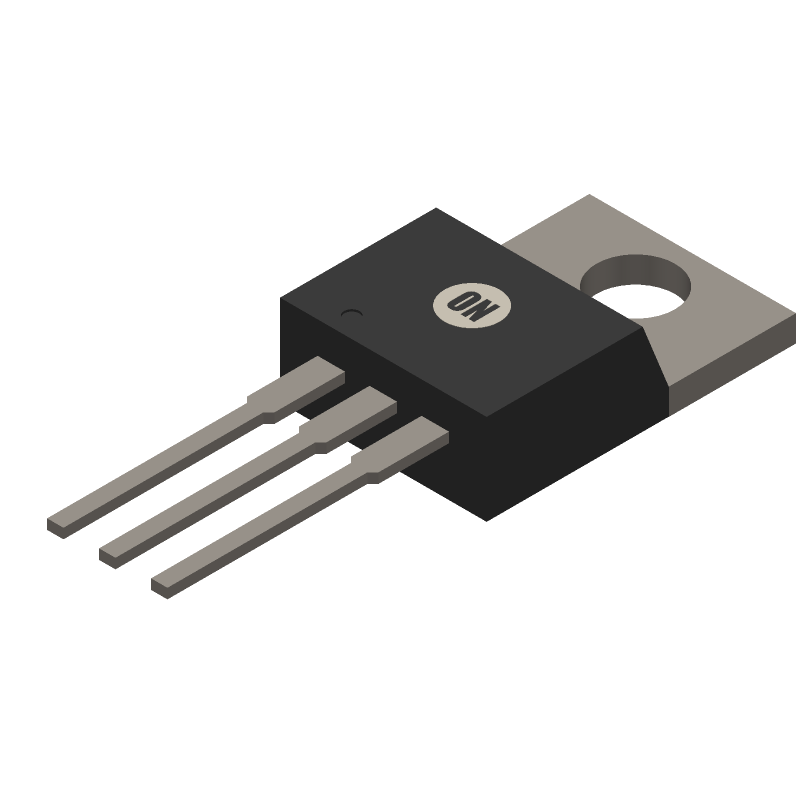

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TIP127G by onsemi
Results Overview of TIP127G by onsemi
- Distributor Offerings: (21 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TIP127G Information
TIP127G by onsemi is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for TIP127G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
82AC0255
|
Newark | Bip T0220 Pnp 8A 100V Rohs Compliant: Yes |Onsemi TIP127G RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.3280 | Buy Now |
|
DISTI #
TIP127GOS-ND
|
DigiKey | TRANS PNP DARL 100V 5A TO-220 Min Qty: 1 Lead time: 11 Weeks Container: Tube |
2175 In Stock |
|
$0.3204 / $1.4000 | Buy Now |
|
DISTI #
TIP127G
|
Avnet Americas | Darlington Transistor, PNP, 3 Pins - Rail/Tube (Alt: TIP127G) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks, 0 Days Container: Tube | 0 |
|
$0.3165 / $0.3278 | Buy Now |
|
DISTI #
863-TIP127G
|
Mouser Electronics | Darlington Transistors 5A 100V Bipolar Power PNP RoHS: Compliant | 7532 |
|
$0.3320 / $1.3900 | Buy Now |
|
DISTI #
E02:0323_00078485
|
Arrow Electronics | Trans Darlington PNP 100V 5A 2000mW 3-Pin(3+Tab) TO-220AB Tube Min Qty: 1 Package Multiple: 1 Lead time: 11 Weeks Date Code: 2429 | Europe - 7125 |
|
$0.3274 / $0.7776 | Buy Now |
|
DISTI #
V36:1790_07295890
|
Arrow Electronics | Trans Darlington PNP 100V 5A 2000mW 3-Pin(3+Tab) TO-220AB Tube Min Qty: 50 Package Multiple: 50 Lead time: 11 Weeks Date Code: 2412 | Americas - 29 |
|
$0.3065 / $0.5292 | Buy Now |
|
|
Onlinecomponents.com | 5.0 A, 100 V PNP Darlington Bipolar Power Transistor RoHS: Compliant |
50 In Stock |
|
$0.3093 / $0.3816 | Buy Now |
|
DISTI #
88071561
|
Verical | Trans Darlington PNP 100V 5A 2000mW 3-Pin(3+Tab) TO-220AB Tube Min Qty: 100 Package Multiple: 50 | Americas - 20850 |
|
$0.3216 | Buy Now |
|
DISTI #
83685472
|
Verical | Trans Darlington PNP 100V 5A 2000mW 3-Pin(3+Tab) TO-220AB Tube Min Qty: 18 Package Multiple: 1 Date Code: 2429 | Americas - 7125 |
|
$0.3292 / $0.7220 | Buy Now |
|
DISTI #
87893130
|
Verical | Trans Darlington PNP 100V 5A 2000mW 3-Pin(3+Tab) TO-220AB Tube Min Qty: 78 Package Multiple: 1 | Americas - 102 |
|
$0.9090 / $1.2400 | Buy Now |
Part Details for TIP127G
TIP127G CAD Models
TIP127G Part Data Attributes
|
|
TIP127G
onsemi
Buy Now
Datasheet
|
Compare Parts:
TIP127G
onsemi
5.0 A, 100 V PNP Darlington Bipolar Power Transistor, TO-220 3 LEAD STANDARD, 50-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-220 3 LEAD STANDARD | |
| Package Description | LEAD FREE, PLASTIC, CASE 221A-09, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 221A | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.29.00.95 | |
| Factory Lead Time | 11 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Additional Feature | LEADFORM OPTIONS ARE AVAILABLE | |
| Case Connection | COLLECTOR | |
| Collector Current-Max (IC) | 5 A | |
| Collector-Emitter Voltage-Max | 100 V | |
| Configuration | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | |
| DC Current Gain-Min (hFE) | 1000 | |
| JEDEC-95 Code | TO-220AB | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | PNP | |
| Power Dissipation-Max (Abs) | 65 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 4 MHz |
Alternate Parts for TIP127G
This table gives cross-reference parts and alternative options found for TIP127G. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TIP127G, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TIP127 | General Transistor Corp | Check for Price | Power Bipolar Transistor, 5A I(C), PNP | TIP127G vs TIP127 |
| TIP127 | STMicroelectronics | Check for Price | Low voltage PNP power Darlington transistor | TIP127G vs TIP127 |
| TIP127 | SPC Multicomp | Check for Price | Power Bipolar Transistor, 5A I(C), 100V V(BR)CEO, 2-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN | TIP127G vs TIP127 |
| TIP127 | Rectron Semiconductor | Check for Price | Power Bipolar Transistor, 5A I(C), 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN | TIP127G vs TIP127 |
| TIP127 | KEC | Check for Price | Power Bipolar Transistor, 5A I(C), 120V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220AB, 3 PIN | TIP127G vs TIP127 |
TIP127G Frequently Asked Questions (FAQ)
-
The maximum safe operating area (SOA) for the TIP127G is not explicitly stated in the datasheet, but it can be estimated based on the device's thermal resistance and maximum junction temperature. As a general guideline, the SOA is typically limited by the device's thermal capabilities, and it's recommended to keep the device within the specified thermal boundaries to ensure reliable operation.
-
To ensure the TIP127G is properly biased for linear operation, it's essential to follow the recommended biasing scheme outlined in the datasheet. This typically involves setting the base-emitter voltage (VBE) to around 0.7V and the collector-emitter voltage (VCE) to a value that ensures the device operates within its linear region. Additionally, it's crucial to ensure the device is not over-driven or under-driven, as this can lead to non-linear operation or even device damage.
-
For optimal performance and reliability, it's recommended to follow good PCB layout practices, such as keeping the device away from heat sources, using a solid ground plane, and minimizing thermal resistance. A heat sink or thermal pad can be used to improve heat dissipation, and the device should be mounted on a PCB with a high thermal conductivity. The datasheet provides guidelines for thermal management, and it's essential to follow these recommendations to ensure the device operates within its specified temperature range.
-
Yes, the TIP127G can be used as a switch, but it's essential to consider the device's switching characteristics, such as its turn-on and turn-off times, and ensure that it's properly driven to minimize switching losses. The device's saturation voltage (VCE(sat)) and collector-emitter resistance (rCE) should also be considered to ensure efficient switching operation. Additionally, the device's thermal capabilities should be taken into account to prevent overheating during switching operations.
-
To protect the TIP127G from ESD and other forms of electrical overstress, it's recommended to follow standard ESD protection practices, such as using ESD-sensitive handling and storage procedures, and incorporating ESD protection devices, such as TVS diodes or ESD protection arrays, into the circuit design. Additionally, the device should be operated within its specified voltage and current ratings, and overvoltage protection devices, such as zener diodes or voltage regulators, should be used to prevent voltage transients from damaging the device.
