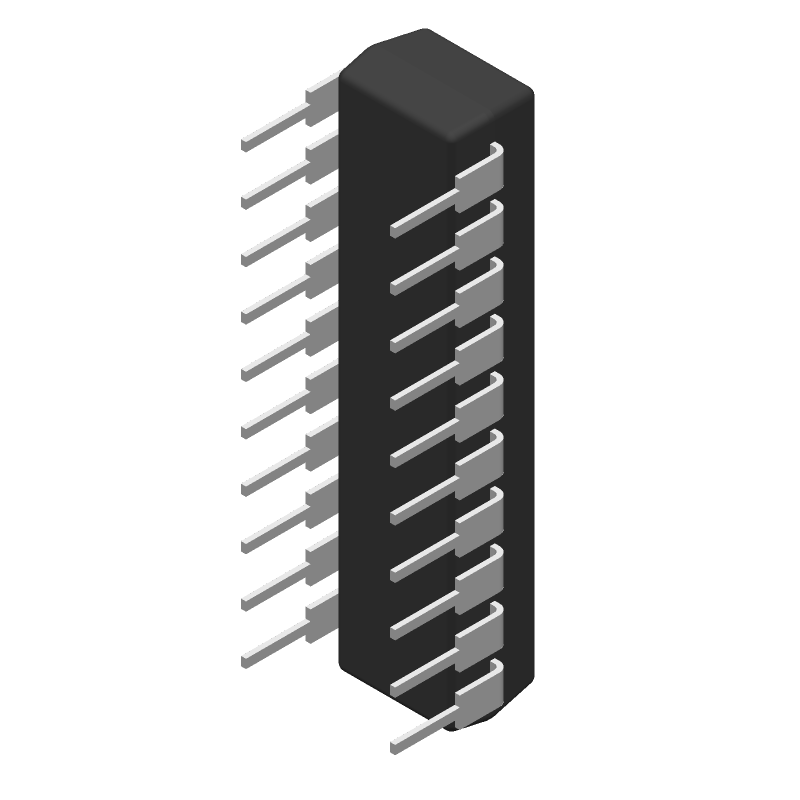

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TIBPAL16L8-15CN by Texas Instruments
Results Overview of TIBPAL16L8-15CN by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TIBPAL16L8-15CN Information
TIBPAL16L8-15CN by Texas Instruments is a Programmable Logic Device.
Programmable Logic Devices are under the broader part category of Programmable Logic Devices.
Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.
Price & Stock for TIBPAL16L8-15CN
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 37 |
|
RFQ | ||
|
|
Bristol Electronics | 20 |
|
RFQ | ||
|
|
Quest Components | OT PLD, 15ns, PDIP20 | 73 |
|
$2.6000 / $3.9000 | Buy Now |
|
|
Quest Components | OT PLD, 15ns, PDIP20 | 64 |
|
$2.6000 / $3.9000 | Buy Now |
|
DISTI #
SMC-TIBPAL16L8-15CN
|
Sensible Micro Corporation | Tibpal16L8-15Cn RoHS: Not Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days Container: Tubes | 20 |
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 116 |
|
RFQ | |
|
|
Vyrian | Peripheral ICs | 1373 |
|
RFQ |
Part Details for TIBPAL16L8-15CN
TIBPAL16L8-15CN CAD Models
TIBPAL16L8-15CN Part Data Attributes
|
|
TIBPAL16L8-15CN
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TIBPAL16L8-15CN
Texas Instruments
High-Performance Impact<TM> PAL<R> Circuits 20-PDIP 0 to 75
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Package Description | ROHS COMPLIANT, PLASTIC, MS-001AD, DIP-20 | |
| Pin Count | 20 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Architecture | PAL-TYPE | |
| JESD-30 Code | R-PDIP-T20 | |
| JESD-609 Code | e4 | |
| Length | 25.4 mm | |
| Number of Dedicated Inputs | 10 | |
| Number of I/O Lines | 6 | |
| Number of Inputs | 16 | |
| Number of Outputs | 8 | |
| Number of Product Terms | 64 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 75 °C | |
| Operating Temperature-Min | ||
| Organization | 10 DEDICATED INPUTS, 6 I/O | |
| Output Function | COMBINATORIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP20,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Programmable Logic Type | OT PLD | |
| Propagation Delay | 15 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 mm | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 4.75 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | NO | |
| Technology | TTL | |
| Temperature Grade | COMMERCIAL EXTENDED | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
Alternate Parts for TIBPAL16L8-15CN
This table gives cross-reference parts and alternative options found for TIBPAL16L8-15CN. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TIBPAL16L8-15CN, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 5962-85155092A | Philips Semiconductors | Check for Price | OT PLD, 17ns, CQCC20 | TIBPAL16L8-15CN vs 5962-85155092A |
| 5962-8515509RA | NXP Semiconductors | Check for Price | IC OT PLD, 17 ns, CDIP20, Programmable Logic Device | TIBPAL16L8-15CN vs 5962-8515509RA |
| PAL16L8BCJ | Monolithic Memories Inc (MMI) | Check for Price | OT PLD, 22ns, PAL-Type, TTL, CDIP20, DIP-20 | TIBPAL16L8-15CN vs PAL16L8BCJ |
| 5962-8515509RA | Signetics | Check for Price | OT PLD, 17ns, TTL, CDIP20 | TIBPAL16L8-15CN vs 5962-8515509RA |
| 5962-85155092X | AMD | Check for Price | OT PLD, 17ns, TTL, CQCC20 | TIBPAL16L8-15CN vs 5962-85155092X |
| 5962-8515509SX | NXP Semiconductors | Check for Price | IC OT PLD, 17 ns, CDFP20, Programmable Logic Device | TIBPAL16L8-15CN vs 5962-8515509SX |
| TIBPAL16L8-15MW | Texas Instruments | Check for Price | OT PLD, 15ns, CDFP20, CERAMIC, FP-20 | TIBPAL16L8-15CN vs TIBPAL16L8-15MW |
| PAL16L8BJM | Texas Instruments | Check for Price | OT PLD, 20ns, CDIP20, CERAMIC, DIP-20 | TIBPAL16L8-15CN vs PAL16L8BJM |
TIBPAL16L8-15CN Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for TIBPAL16L8-15CN is 4.5V to 5.5V.
-
The TIBPAL16L8-15CN can be programmed using a PAL programmer or a universal programmer that supports PAL devices. The programming process typically involves connecting the programmer to the device, selecting the device type, and uploading the desired configuration data.
-
The maximum clock frequency supported by TIBPAL16L8-15CN is 15 MHz.
-
While the recommended operating voltage range for TIBPAL16L8-15CN is 4.5V to 5.5V, it can be used in a 3.3V system with some limitations. However, the device's performance and functionality may be affected, and it's recommended to consult with a Texas Instruments representative or a qualified engineer to ensure compatibility.
-
The TIBPAL16L8-15CN is a 5V device, but it is not 3.3V tolerant. It's recommended to use level shifters or voltage translators if you need to interface with 3.3V devices.
