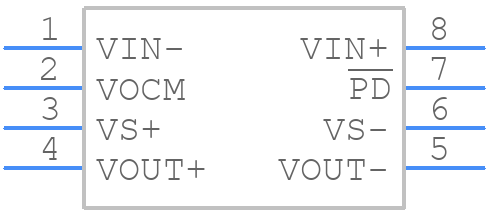

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for THS4531AIDGK by Texas Instruments
Results Overview of THS4531AIDGK by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
THS4531AIDGK Information
THS4531AIDGK by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for THS4531AIDGK
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-35600-5-ND
|
DigiKey | IC OPAMP DIFF 1 CIRCUIT 8VSSOP Min Qty: 1 Lead time: 6 Weeks Container: Tube |
9394 In Stock |
|
$1.8088 / $3.1100 | Buy Now |
|
DISTI #
595-THS4531AIDGK
|
Mouser Electronics | Differential Amplifiers Ultra Lo Pwr RRO Ful ly-Diff Amp A 595-THS4531AIDGKR RoHS: Compliant | 0 |
|
$1.9400 / $5.1400 | Order Now |
|
DISTI #
THS4531AIDGK
|
TME | IC: operational amplifier, 36MHz, Ch: 1, VSSOP8, tube Min Qty: 1 | 0 |
|
$2.4300 / $3.9300 | RFQ |
|
|
Ameya Holding Limited | IC OPAMP DIFF 27MHZ RRO 8VSSOP | 96330 |
|
RFQ | |
|
DISTI #
SMC-THS4531AIDGK
|
Sensible Micro Corporation | OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 1984 |
|
RFQ | |
|
|
Vyrian | Amplifiers | 3276 |
|
RFQ | |
|
|
Win Source Electronics | IC OPAMP DIFF 27MHZ RRO 8VSSOP | 29634 |
|
$1.6783 / $2.1678 | Buy Now |
Part Details for THS4531AIDGK
THS4531AIDGK CAD Models
THS4531AIDGK Part Data Attributes
|
|
THS4531AIDGK
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
THS4531AIDGK
Texas Instruments
Ultra Low Power, RRO, Fully-Differential Amplifier 8-VSSOP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SSOP | |
| Package Description | VSSOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Mentor OK | true | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.305 µA | |
| Bandwidth (3dB)-Nom | 2.7 MHz | |
| Bias Current-Max (IIB) @25C | 0.25 µA | |
| Common-mode Reject Ratio-Min | 90 dB | |
| Common-mode Reject Ratio-Nom | 116 dB | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.05 µA | |
| Input Offset Voltage-Max | 400 µV | |
| JESD-30 Code | S-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 3 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | YES | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP8,.19 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.1 mm | |
| Slew Rate-Nom | 220 V/us | |
| Supply Current-Max | 0.35 mA | |
| Supply Voltage Limit-Max | 5.5 V | |
| Supply Voltage-Nom (Vsup) | 2.7 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 27000 | |
| Voltage Gain-Min | 0.99 | |
| Wideband | NO | |
| Width | 3 mm |
Alternate Parts for THS4531AIDGK
This table gives cross-reference parts and alternative options found for THS4531AIDGK. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of THS4531AIDGK, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| THS4531IDGKT | Texas Instruments | Check for Price | IC OP-AMP, 25 MHz BAND WIDTH, PDSO8, GREEN, MSOP-8, Operational Amplifier | THS4531AIDGK vs THS4531IDGKT |
| THS4531IDGKR | Texas Instruments | Check for Price | Ultra low power 0.25mA, RRO, fully differential amplifier 8-VSSOP -40 to 125 | THS4531AIDGK vs THS4531IDGKR |
| THS4531IDGK | Texas Instruments | Check for Price | Ultra low power 0.25mA, RRO, fully differential amplifier 8-VSSOP -40 to 125 | THS4531AIDGK vs THS4531IDGK |
THS4531AIDGK Frequently Asked Questions (FAQ)
-
A good PCB layout for the THS4531AIDGK involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the input and output connectors. Additionally, it's recommended to use a low-ESR capacitor for the power supply decoupling.
-
To ensure stability, make sure to follow the recommended PCB layout, use a low-ESR capacitor for power supply decoupling, and avoid using long input and output traces. Additionally, ensure that the input and output impedances are matched to the device's input and output impedances.
-
The maximum power dissipation of the THS4531AIDGK is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is approximately 1.4W at 25°C ambient temperature.
-
Yes, the THS4531AIDGK can be used in a single-supply configuration. However, the input common-mode voltage range is limited to VCC-1.5V to VCC+0.5V, so the input signal should be biased accordingly.
-
The recommended input and output termination for the THS4531AIDGK is 50Ω. This ensures maximum power transfer and minimizes signal reflections.
