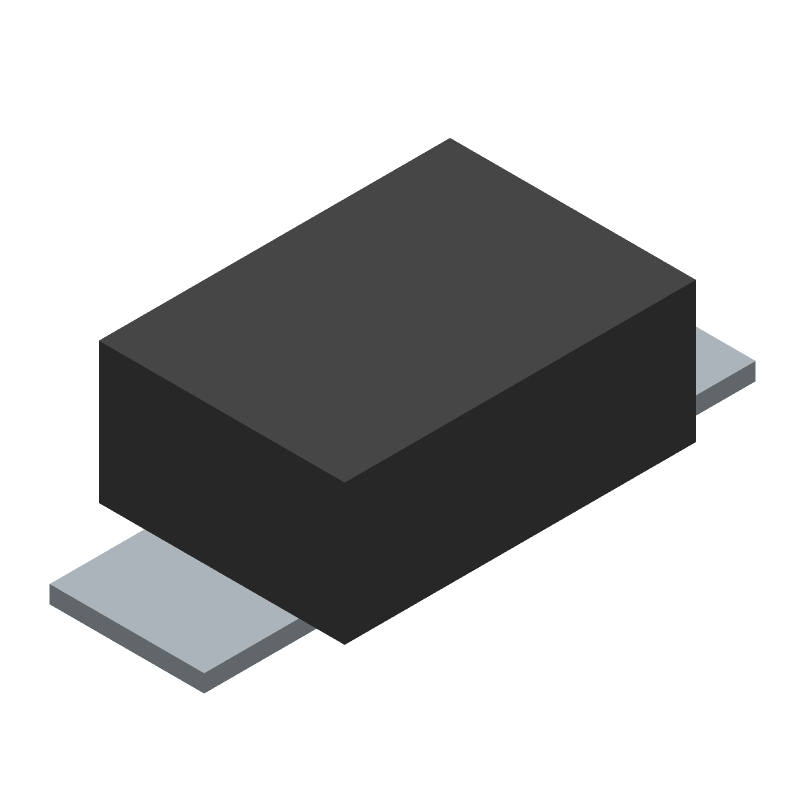

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TFZVTR2.7B by ROHM Semiconductor
Results Overview of TFZVTR2.7B by ROHM Semiconductor
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TFZVTR2.7B Information
TFZVTR2.7B by ROHM Semiconductor is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for TFZVTR2.7B
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
91Y7048
|
Newark | Zener Diode, 2.7V, 0.5W, Sod-323He, Zener Voltage Nom:2.7V, Power Dissipation:500Mw, Diode Case Style:Sod-323He, No. Of Pins:2Pins, Operating Temperature Max:150°C, Diode Mounting:Surface Mount, Product Range:Tfzv Series Rohs Compliant: Yes |Rohm TFZVTR2.7B RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 5 |
|
$0.0430 | Buy Now |
|
DISTI #
TFZVTR2.7BCT-ND
|
DigiKey | DIODE ZENER 2.7V 500MW TUMD2M Min Qty: 1 Lead time: 17 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3778 In Stock |
|
$0.0350 / $0.2300 | Buy Now |
|
DISTI #
91Y7048
|
Avnet Americas | Diode Zener Single 2.7V 500mW 2-Pin TUMD T/R - Product that comes on tape, but is not reeled (Alt: 91Y7048) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 24 Weeks, 4 Days Container: Ammo Pack | 5 Partner Stock |
|
$0.1070 / $0.2390 | Buy Now |
|
DISTI #
755-TFZVTR2.7B
|
Mouser Electronics | Zener Diodes Pd 500mW Iz(mA) Zener Diode RoHS: Compliant | 3488 |
|
$0.0410 / $0.2300 | Buy Now |
|
DISTI #
87805009
|
Verical | Zener Diode Single 2.7V 4% 100Ohm 500mW 2-Pin TUMD-M T/R RoHS: Compliant Min Qty: 1345 Package Multiple: 1 Date Code: 2049 | Americas - 5831 |
|
$0.0403 / $0.0681 | Buy Now |
|
DISTI #
61606606
|
Verical | Zener Diode Single 2.7V 4% 100Ohm 500mW 2-Pin TUMD-M T/R RoHS: Compliant Min Qty: 1112 Package Multiple: 1 Date Code: 2201 | Americas - 2752 |
|
$0.0638 / $0.0658 | Buy Now |
|
|
Quest Components | 2201 |
|
$0.1140 / $0.3800 | Buy Now |
Part Details for TFZVTR2.7B
TFZVTR2.7B CAD Models
TFZVTR2.7B Part Data Attributes
|
|
TFZVTR2.7B
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
TFZVTR2.7B
ROHM Semiconductor
Zener Diode,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Package Description | SC-108B, 2 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 24 Weeks, 4 Days | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Additional Feature | HIGH RELIABILITY | |
| Case Connection | CATHODE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | ZENER DIODE | |
| JESD-30 Code | R-PDSO-F2 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.5 W | |
| Reference Voltage-Nom | 2.7 V | |
| Surface Mount | YES | |
| Technology | ZENER | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tol-Max | 3.93% | |
| Working Test Current | 20 mA |
