Connectors / Headers and Edge Type Connectors / TFM-150-22-L-D
Datasheets
TFM-150-22-L-D by: Samtec Inc

Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Guide Slot, Black Insulator, ROHS COMPLIANT

Part Details for TFM-150-22-L-D by Samtec Inc

Results Overview of TFM-150-22-L-D by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TFM-150-22-L-D Information

TFM-150-22-L-D by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
LD09P24A4GV00LF Amphenol Communications Solutions D-Subminiature Economy Range, Input Output Connectors, Signal 9 way Pin Straight, Solder, 50 cycles, Harpoons + Female Screw UNC 4 - 40 + Elec cont., 1.6 mm PCB thickness
DB5W5P543M40LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 5W5 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Without Accessory, Back: Metal Brackets.
DCV8W8P543M30LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 8W8 Pin Right Angle Solder 30A, Europe Standard, 500 Cycles, Front: Female Screw Lock UNC 4.40, Back: Metal Brackets.

Price & Stock for TFM-150-22-L-D

Part # Distributor Description Stock Price Buy
DISTI # 10W6705
Newark High-Reliability Tiger Eye Terminal Strips |Samtec TFM-150-22-L-D RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $15.9800
  • 10 $14.8500
  • 25 $13.6000
  • 50 $11.6200
  • 100 $8.9800
$8.9800 / $15.9800 Buy Now
DISTI # TFM-150-22-L-D-ND
DigiKey CONN HEADER SMD 100POS 1.27MM Min Qty: 8 Lead time: 6 Weeks Container: Bulk Temporarily Out of Stock
  • 8 $11.5500
$11.5500 Buy Now
DISTI # TFM-150-22-L-D
Avnet Americas - Rail/Tube (Alt: TFM-150-22-L-D) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Tube 0
  • 1 $11.3190
  • 10 $10.8225
  • 30 $9.1202
  • 50 $8.9088
  • 100 $8.6208
$8.6208 / $11.3190 Buy Now
DISTI # 200-TFM-150-22-L-D
Mouser Electronics Headers & Wire Housings High-Reliability Tiger Eye(TM) Terminal Strips RoHS: Compliant 0
  • 1 $11.5500
  • 24 $11.1000
  • 56 $9.9600
  • 104 $9.0500
  • 256 $8.2300
  • 504 $7.3900
  • 1,000 $6.6300
$6.6300 / $11.5500 Order Now
Onlinecomponents.com   RoHS: Compliant 0
  • 5 $12.1900
  • 25 $11.0500
  • 50 $10.5500
  • 100 $9.5700
  • 250 $8.4500
  • 500 $7.5900
  • 1,000 $6.8900
$6.8900 / $12.1900 Buy Now
DISTI # 5cd92772cd7c1c4c3882a278
Samtec High-Reliability Tiger Eye™ Terminal Strips, .050" Pitch RoHS: Compliant Min Qty: 1 Lead time: 2 Weeks, 2 Days Container: Tube 0
  • 1 $11.5500
  • 10 $11.1000
  • 25 $10.5200
  • 50 $9.9600
  • 100 $9.0500
  • 250 $8.2300
  • 500 $7.3900
  • 1,000 $6.6300
$6.6300 / $11.5500 Buy Now
DISTI # 000000000003256645
Sager Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips, .050 Pitch Min Qty: 1 0
  • 1 $11.5500
  • 10 $11.1000
  • 25 $10.5200
  • 50 $9.9600
  • 100 $9.0500
  • 250 $8.2300
$8.2300 / $11.5500 Buy Now
Component Electronics, Inc IN STOCK SHIP TODAY 8
  • 1 $10.7700
  • 100 $8.0800
  • 1,000 $7.0000
$7.0000 / $10.7700 Buy Now
Master Electronics   RoHS: Compliant 0
  • 5 $12.1900
  • 25 $11.0500
  • 50 $10.5500
  • 100 $9.5700
  • 250 $8.4500
  • 500 $7.5900
  • 1,000 $6.8900
$6.8900 / $12.1900 Buy Now

Part Details for TFM-150-22-L-D

TFM-150-22-L-D CAD Models

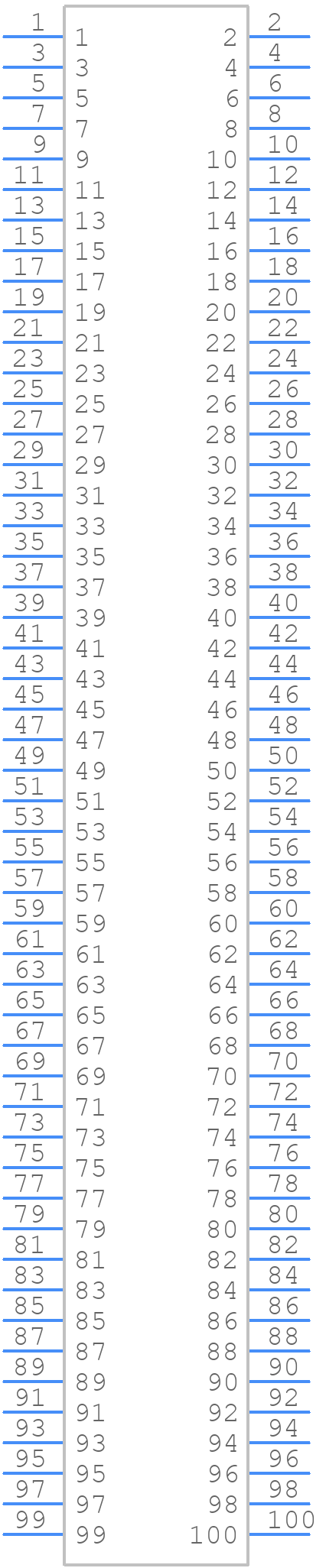

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TFM-150-22-L-D Part Data Attributes

Parametric Data
TFM-150-22-L-D Samtec Inc
Buy Now Datasheet
Compare Parts:
TFM-150-22-L-D Samtec Inc Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Guide Slot, Black Insulator, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Factory Lead Time 111 Weeks
Samacsys Manufacturer SAMTEC
Additional Feature ELP; TIGER EYE, SHROUDED
Body Breadth 0.225 inch
Body Length 2.625 inch
Connector Type BOARD CONNECTOR
Contact Finish Mating GOLD (15) OVER NICKEL (50)
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
JESD-609 Code e3
MIL Conformance NO
Mating Contact Pitch 0.05 inch
Mating Contact Row Spacing 0.05 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 GUIDE SLOT
Mounting Option 2 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 1.27 mm
Plating Thickness 15u inch
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 3.2 A
Reference Standard UL, CSA
Terminal Pitch 1.27 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 100
UL Flammability Code 94V-0

Alternate Parts for TFM-150-22-L-D

This table gives cross-reference parts and alternative options found for TFM-150-22-L-D. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TFM-150-22-L-D, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TFM-150-22-LM-D Samtec Inc $10.8931 Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Guide Slot, Black Insulator, TFM-150-22-L-D vs TFM-150-22-LM-D
TFM-150-22-S-D Samtec Inc $12.9203 Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Guide Slot, Black Insulator, Receptacle, ROHS COMPLIANT TFM-150-22-L-D vs TFM-150-22-S-D
TFM-150-22-F-D Samtec Inc $8.4619 Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Guide Slot, Black Insulator, TFM-150-22-L-D vs TFM-150-22-F-D
TFM-150-22-FM-D Samtec Inc $8.7501 Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Guide Slot, Black Insulator, TFM-150-22-L-D vs TFM-150-22-FM-D
TFM-150-22-STL-D Samtec Inc Check for Price Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Guide Slot, Black Insulator, TFM-150-22-L-D vs TFM-150-22-STL-D
