Resistors / Thin Film Resistors / TFCR0603-16W-C-1692BT
Datasheets
TFCR0603-16W-C-1692BT by: VENKEL LTD

Fixed Resistor, Thin Film, 0.063W, 16900ohm, 75V, 0.1% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT

Part Details for TFCR0603-16W-C-1692BT by VENKEL LTD

Results Overview of TFCR0603-16W-C-1692BT by VENKEL LTD

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TFCR0603-16W-C-1692BT Information

TFCR0603-16W-C-1692BT by VENKEL LTD is a Thin Film Resistor.
Thin Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for TFCR0603-16W-C-1692BT

Part # Distributor Description Stock Price Buy
DISTI # TFCR0603-16W-C-1692BT
Venkel Ltd. Thin Film CR, 0603, 1/16W, �50PPM, 16.9K, �0.1% RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Lead time: 6 Weeks, 3 Days Container: Reel 0
Buy Now

Part Details for TFCR0603-16W-C-1692BT

TFCR0603-16W-C-1692BT CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

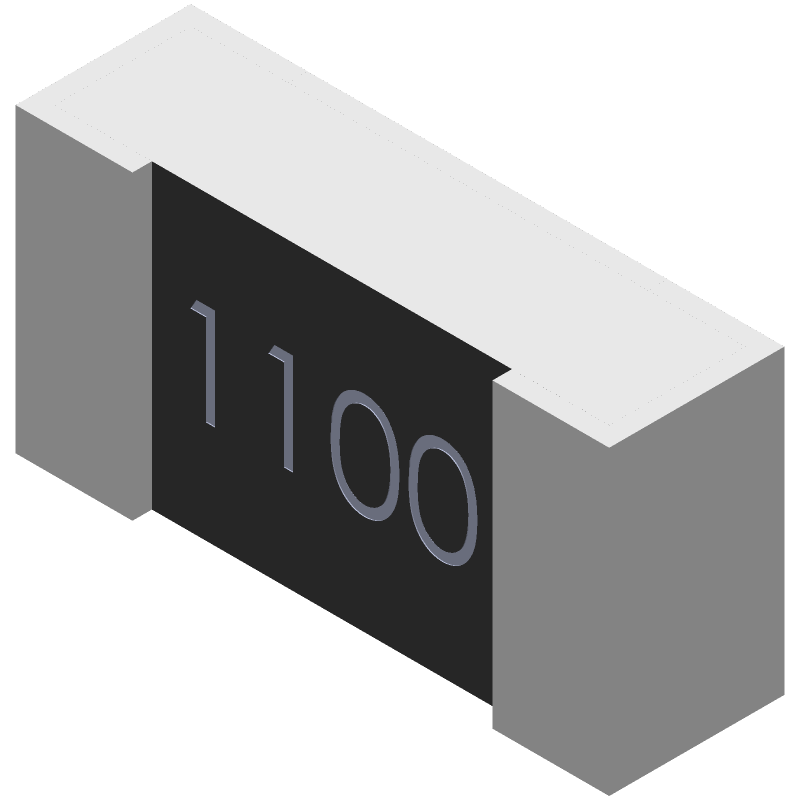

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TFCR0603-16W-C-1692BT Part Data Attributes

Parametric Data
TFCR0603-16W-C-1692BT VENKEL LTD
Buy Now Datasheet
Compare Parts:
TFCR0603-16W-C-1692BT VENKEL LTD Fixed Resistor, Thin Film, 0.063W, 16900ohm, 75V, 0.1% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VENKEL LTD
Package Description SMT, 0603
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Samacsys Manufacturer Venkel
Additional Feature PRECISION
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.45 mm
Package Length 1.55 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 0.8 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.063 W
Rated Temperature 70 °C
Resistance 16900 Ω
Resistor Type FIXED RESISTOR
Size Code 0603
Surface Mount YES
Technology THIN FILM
Temperature Coefficient 50 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 0.1%
Working Voltage 50 V

Alternate Parts for TFCR0603-16W-C-1692BT

This table gives cross-reference parts and alternative options found for TFCR0603-16W-C-1692BT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TFCR0603-16W-C-1692BT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ACPP060316K9B50PPM Ohmite Mfg Co Check for Price Fixed Resistor, Thin Film, 0.0625W, 16900ohm, 50V, 0.1% +/-Tol, -50,50ppm/Cel, 0603, TFCR0603-16W-C-1692BT vs ACPP060316K9B50PPM
RN73G1JTD1692A MERITEK Electronics Corporation Check for Price Fixed Resistor, Thin Film, 0.0625W, 16900ohm, 50V, 0.05% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP TFCR0603-16W-C-1692BT vs RN73G1JTD1692A
TC0350A1692ECE Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Thin Film, 0.0625W, 16900ohm, 50V, 0.05% +/-Tol, -50,50ppm/Cel, 0603, TFCR0603-16W-C-1692BT vs TC0350A1692ECE
RNC16T216K90.1% SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Thin Film, 0.0625W, 16900ohm, 0.1% +/-Tol, -50,50ppm/Cel, 0603, TFCR0603-16W-C-1692BT vs RNC16T216K90.1%
CAR060316.9KOHMS0.05%50PPM Riedon Check for Price Fixed Resistor, Thin Film, 0.0625W, 16900ohm, 50V, 0.05% +/-Tol, -50,50ppm/Cel, 0603, TFCR0603-16W-C-1692BT vs CAR060316.9KOHMS0.05%50PPM
TC0350B1692T4E Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Thin Film, 0.0625W, 16900ohm, 50V, 0.1% +/-Tol, -50,50ppm/Cel, 0603, TFCR0603-16W-C-1692BT vs TC0350B1692T4E
TC0350A1692T5E Royal Electronic Factory (Thailand) Co Ltd Check for Price Fixed Resistor, Thin Film, 0.0625W, 16900ohm, 50V, 0.05% +/-Tol, -50,50ppm/Cel, 0603, TFCR0603-16W-C-1692BT vs TC0350A1692T5E
NTR06A1692DTR1KF NIC Components Corp Check for Price Fixed Resistor, Thin Film, 0.063W, 16900ohm, 50V, 0.05% +/-Tol, -50,50ppm/Cel, 0603, TFCR0603-16W-C-1692BT vs NTR06A1692DTR1KF
NTRA06B1692DTR1KQYF NIC Components Corp Check for Price Fixed Resistor, Thin Film, 0.063W, 16900ohm, 50V, 0.1% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP TFCR0603-16W-C-1692BT vs NTRA06B1692DTR1KQYF
NTR06B1692DTRF NIC Components Corp Check for Price Fixed Resistor, Thin Film, 0.063W, 16900ohm, 50V, 0.1% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP TFCR0603-16W-C-1692BT vs NTR06B1692DTRF
