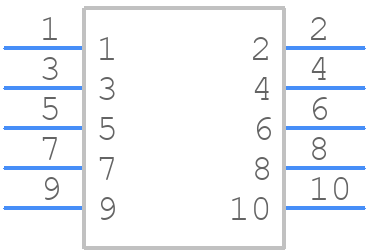

Part Symbol
-

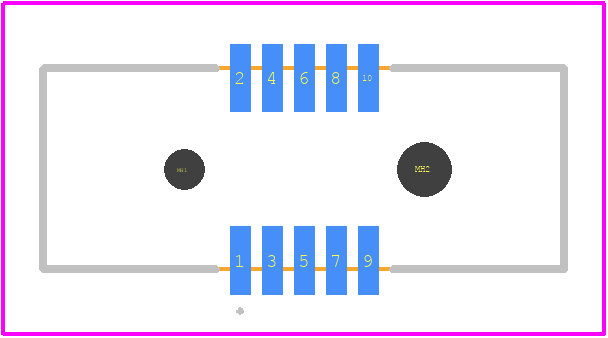

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TEMS-105-02-03.0-H-D-A-K-TR by Samtec Inc
Results Overview of TEMS-105-02-03.0-H-D-A-K-TR by Samtec Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TEMS-105-02-03.0-H-D-A-K-TR Information
TEMS-105-02-03.0-H-D-A-K-TR by Samtec Inc is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for TEMS-105-02-03.0-H-D-A-K-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
612-TEMS-105-02-03.0-H-D-A-K-TR-ND
|
DigiKey | 0.80 MM TIGER EYE MICRO TERMINAL Min Qty: 500 Lead time: 6 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$2.8680 | Buy Now |
|
DISTI #
TEMS-105-02-03.0-H
|
Avnet Americas | - Tape and Reel (Alt: TEMS-105-02-03.0-H) Min Qty: 500 Package Multiple: 500 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
$2.0739 / $3.2816 | Buy Now |
|
DISTI #
200-TEMS10502030HDAK
|
Mouser Electronics | Board to Board & Mezzanine Connectors 0.80 mm Tiger Eye(TM) Micro Terminal Strip | 774 |
|
$2.4800 / $6.2900 | Buy Now |
|
DISTI #
000000000005931743
|
Sager | Board to Board & Mezzanine Connectors 0.80 mm Tiger Eye Micro Terminal Strip, Slim Min Qty: 1 | 0 |
|
$2.2100 / $6.2900 | Buy Now |
|
DISTI #
TEMS-105-02-03.0-H-D-A-K-TR
|
Avnet Abacus | (Alt: TEMS-105-02-03.0-H-D-A-K-TR) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for TEMS-105-02-03.0-H-D-A-K-TR

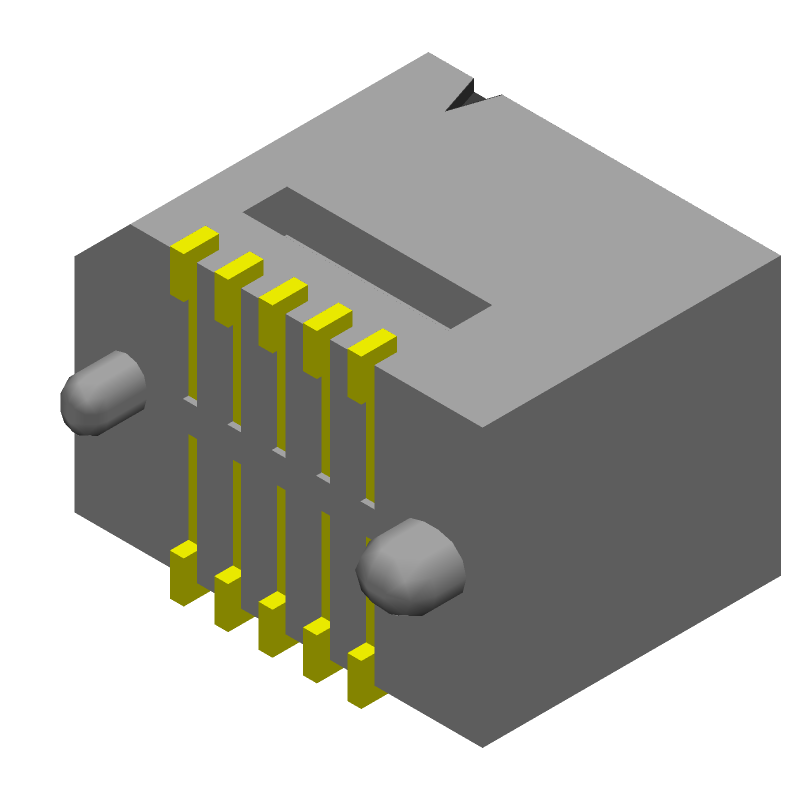

TEMS-105-02-03.0-H-D-A-K-TR CAD Models
TEMS-105-02-03.0-H-D-A-K-TR Part Data Attributes
|
|
TEMS-105-02-03.0-H-D-A-K-TR
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
TEMS-105-02-03.0-H-D-A-K-TR
Samtec Inc
Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.032 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMTEC INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | SAMTEC | |
| Board Mounting Option | PEG | |
| Body Breadth | 0.197 inch | |
| Body Depth | 0.212 inch | |
| Body Length | 0.289 inch | |
| Connector Type | BOARD CONNECTOR | |
| Contact Gender | MALE | |
| Contact Pattern | RECTANGULAR | |
| Contact Style | SQ PIN-SKT | |
| Filter Feature | NO | |
| Insulator Color | BLACK | |
| Insulator Material | LIQUID CRYSTAL POLYMER | |
| Mating Contact Pitch | 0.032 inch | |
| Mating Contact Row Spacing | 0.063 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 4.56 mm | |
| Plating Thickness | 30u inch | |
| Polarization Key | POLARIZED HOUSING | |
| Rated Current (Signal) | 2.9 A | |
| Terminal Pitch | 0.8 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 10 |
