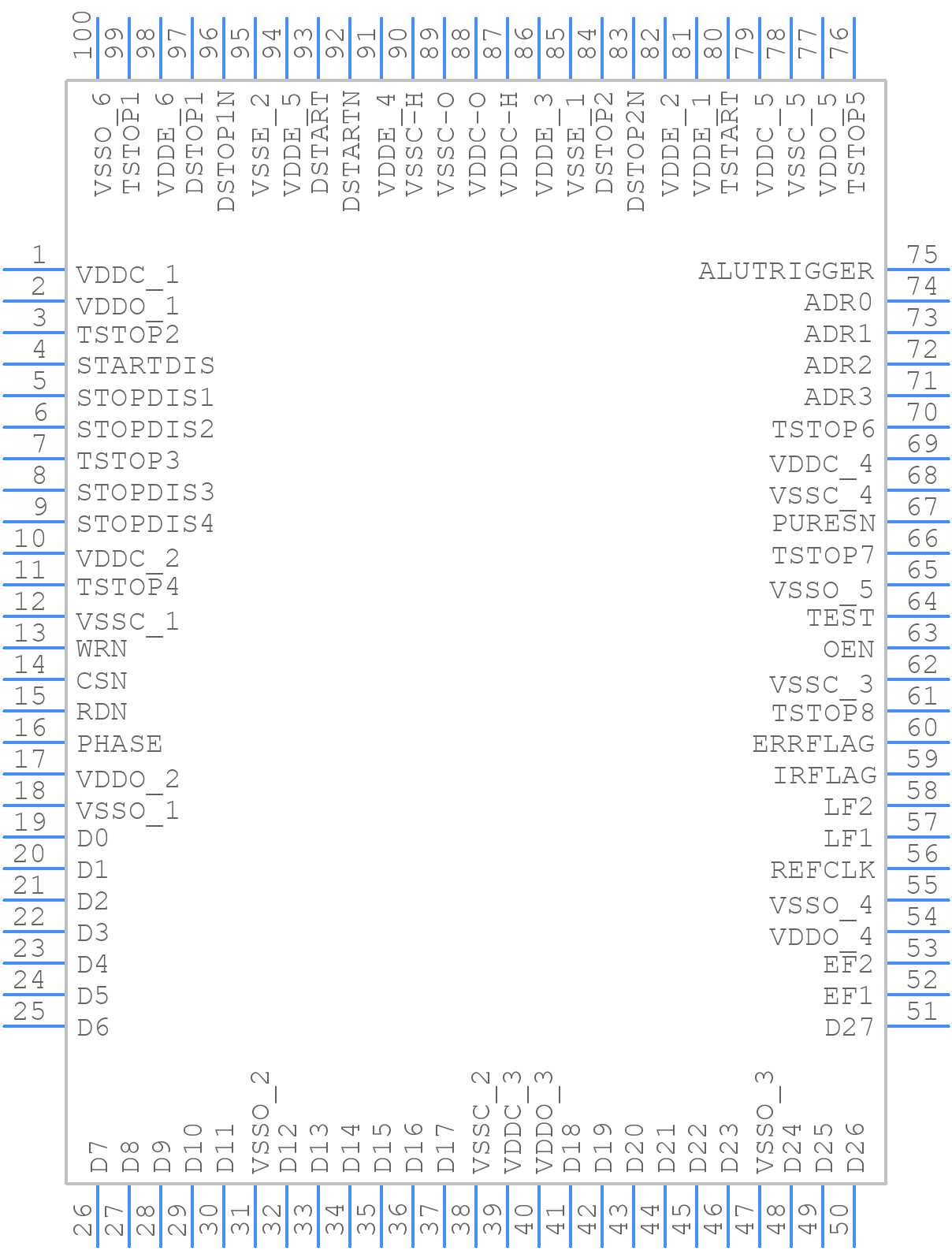

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TDC-GPX by ScioSense
Results Overview of TDC-GPX by ScioSense
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Aerospace and Defense
TDC-GPX Information
TDC-GPX by ScioSense is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for TDC-GPX
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TDC-GPX-ND
|
DigiKey | IC TIME TO DIGITAL CONV 100TQFP Min Qty: 90 Lead time: 4 Weeks Container: Tray | Temporarily Out of Stock |
|
$184.6272 | Buy Now |
|
DISTI #
985-TDC-GPX
|
Mouser Electronics | Data Acquisition ADCs/DACs - Specialized TDC-GPX TQFP100 LF TRA SPEED RoHS: Compliant | 518 |
|
$161.9100 | Buy Now |
|
DISTI #
SCSTDC-GPX
|
Heilind Electronics | TIME-TO-DIGITAL CONVRTR | Americas - 18 in Stock |
|
$217.6130 | Buy Now |
|
DISTI #
TDC-GPX
|
IBS Electronics | TDC-GPX: HIGH-END TIME-TO-DIGITAL CONVERTER GRADE B (ONE GREEN DOT) - TQFP-100 Min Qty: 75 Package Multiple: 1 | 0 |
|
$213.7460 / $224.4450 | Buy Now |
|
DISTI #
SCSTDC-GPX
|
Interstate Connecting Components | TIME-TO-DIGITAL CONVRTR | 6 |
|
$217.6130 | Buy Now |
|
DISTI #
501880002
|
EBV Elektronik | TDCGPX TQFP100 LF TRA SPEED (Alt: 501880002) RoHS: Compliant Min Qty: 90 Package Multiple: 90 Lead time: 44 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for TDC-GPX
TDC-GPX CAD Models
TDC-GPX Part Data Attributes
|
|
TDC-GPX
ScioSense
Buy Now
Datasheet
|
Compare Parts:
TDC-GPX
ScioSense
Analog Circuit,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Contact Manufacturer | |
| Ihs Manufacturer | SCIOSENSE BV | |
| Package Description | TQFP-100 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | ScioSense | |
| Additional Feature | ALSO AVAILABLE IN TFBGA-120 PACKAGE | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | S-PQFP-G100 | |
| Length | 14 mm | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 100 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TFQFP | |
| Package Equivalence Code | TQFP100,.63SQ | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, THIN PROFILE, FINE PITCH | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.3 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 14 mm |
TDC-GPX Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to first apply the analog supply voltage (AVDD) and then the digital supply voltage (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry.
-
To optimize performance in noisy environments, ensure proper PCB layout and grounding, use a low-pass filter on the input signal, and consider using a shielded enclosure. Additionally, adjust the input signal amplitude and offset to optimize the signal-to-noise ratio.
-
The maximum input signal frequency that the TDC-GPX can handle is 100 MHz. However, the device can also be used with higher frequencies by using an external frequency divider or a prescaler.
-
Calibration involves adjusting the internal delay lines to compensate for process variations. This can be done using the built-in calibration mode, which involves applying a known input signal and adjusting the delay lines to achieve the optimal timing.
-
The latency of the TDC-GPX is typically around 10-20 ns. This latency should be considered when designing the system, as it may affect the overall timing and synchronization of the system.
