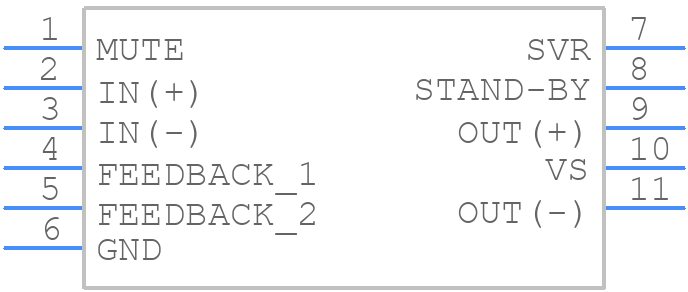

Part Symbol
-

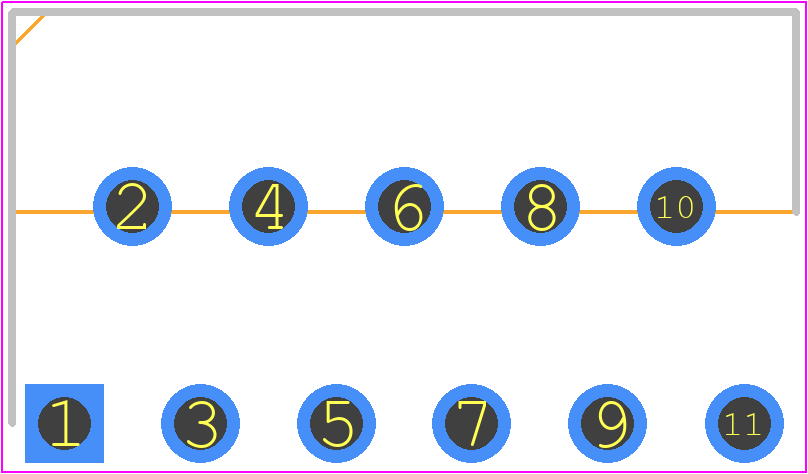

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TDA7256 by STMicroelectronics
Results Overview of TDA7256 by STMicroelectronics
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Entertainment and Gaming
Price & Stock for TDA7256
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
89K1052
|
Newark | Ic, Audio Pwr Amp, Ab, 30W, Multiwatt-11, Amplifier Class:Ab, No. Of Channels:1, Output Power:30W, Supply Voltage Range:8V To 18V, Load Impedance:2Ohm, Amplifier Case Style:Multiwatt11, No. Of Pins:11, Gain Db Max:36Db Rohs Compliant: Yes |Stmicroelectronics TDA7256 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
|
NexGen Digital | 1 |
|
RFQ |
Part Details for TDA7256
TDA7256 CAD Models
TDA7256 Part Data Attributes
|
|
TDA7256
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
TDA7256
STMicroelectronics
30W, 1 CHANNEL, AUDIO AMPLIFIER, PZFM11, MULTIWATT V-11
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | ZFM | |
| Package Description | MULTIWATT V-11 | |
| Pin Count | 11 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | STMicroelectronics | |
| Bandwidth-Nom | 22 kHz | |
| Consumer IC Type | AUDIO AMPLIFIER | |
| Gain | 36 dB | |
| Harmonic Distortion | 10% | |
| JESD-30 Code | R-PZIP-T11 | |
| JESD-609 Code | e0 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 11 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Power-Nom | 30 W | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | ZIP | |
| Package Equivalence Code | ZIP11,.2,.17,67TB | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Qualification Status | Not Qualified | |
| Supply Current-Max | 150 mA | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 8 V | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 1.7 mm | |
| Terminal Position | ZIG-ZAG |
