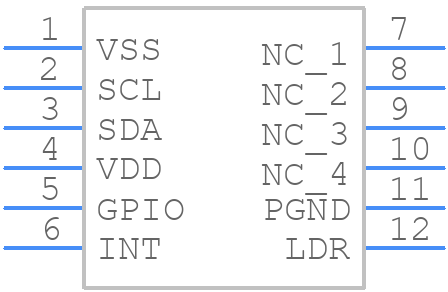

Part Symbol
-
Footprint
-

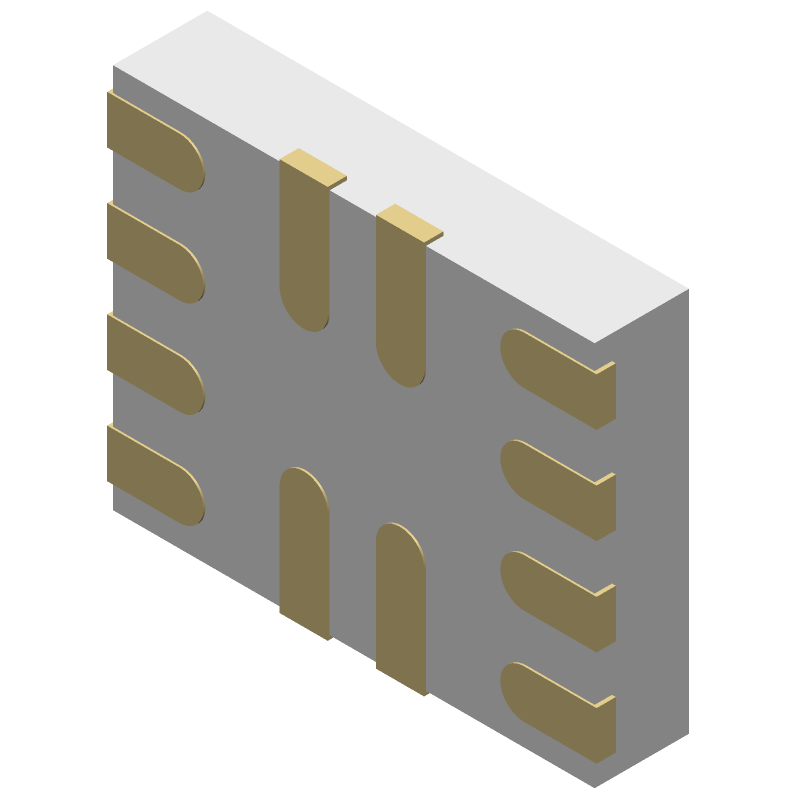

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TCS37013M by ams OSRAM Group
Results Overview of TCS37013M by ams OSRAM Group
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TCS37013M Information
TCS37013M by ams OSRAM Group is an Other Sensor/Transducer.
Other Sensors/Transducers are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for TCS37013M
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69AK5185
|
Newark | Ambient Light/Proximity Sensor, Oqfn-12, Supply Voltage Min:1.7V, Supply Voltage Max:2V, No. Of Pins:12Pins, Operating Temperature Min:-30°C, Operating Temperature Max:70°C, Product Range:Tcs3701 Series Rohs Compliant: Yes |Ams Osram Group TCS37013M RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1976 |
|
$0.9750 / $1.7400 | Buy Now |
|
DISTI #
TCS37013MCT-ND
|
DigiKey | SENSOR OPT AMBIENT 12 SMD Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2856 In Stock |
|
$0.8800 / $1.7700 | Buy Now |
|
DISTI #
Q65114A1159
|
Avnet Americas | Ambient Light/Proximity Sensor, 1.7 V to 2 V, -30?C to 70?C, OQFN-12, TCS3701 Series - Tape and Reel (Alt: Q65114A1159) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.8000 / $0.9024 | Buy Now |
|
DISTI #
985-TCS37013M
|
Mouser Electronics | Light to Digital Converters TCS COLOR+PROX RoHS: Compliant | 1672 |
|
$0.8930 / $1.6200 | Buy Now |
|
DISTI #
V72:2272_23255136
|
Arrow Electronics | Color and Proximity Sensor Module Digital Output 1.8V T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2012 Container: Cut Strips | Americas - 17 |
|
$0.8727 / $1.4971 | Buy Now |
|
DISTI #
37067078
|
Verical | Color and Proximity Sensor Module Digital Output 1.8V T/R RoHS: Compliant Min Qty: 8 Package Multiple: 1 Date Code: 2012 | Americas - 17 |
|
$0.8912 / $1.5269 | Buy Now |
|
DISTI #
TCS37013M
|
TTI | Light to Digital Converters TCS COLOR+PROX RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 1000 Container: Reel | Americas - 0 |
|
$0.8000 / $0.8800 | Buy Now |
|
DISTI #
TCS37013M
|
IBS Electronics | AMBIENT LIGHT/PROXIMITY SENSOR OQFN-12 ROHS COMPLIANT: YES |AMS OSRAM GROUP TCS37013M. Min Qty: 2000 Package Multiple: 1 | 0 |
|
$0.9750 / $1.0205 | Buy Now |
|
DISTI #
Q65114A1159
|
EBV Elektronik | Ambient LightProximity Sensor 17 V to 2 V 30C to 70C OQFN12 TCS3701 Series (Alt: Q65114A1159) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for TCS37013M
TCS37013M CAD Models
TCS37013M Part Data Attributes
TCS37013M Frequently Asked Questions (FAQ)
-
Ams OSRAM provides a recommended PCB layout in their application note AN000141, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
-
Calibration of the TCS37013M involves adjusting the gain and offset values for each color channel to match the specific application requirements. Ams OSRAM provides a calibration procedure in their application note AN000142, which includes a step-by-step guide and example code.
-
The TCS37013M can handle ambient light intensities up to 100,000 lux, making it suitable for use in a wide range of applications, including outdoor and high-brightness environments.
-
Yes, the TCS37013M has a built-in flicker detection feature that can measure the modulation frequency and depth of flickering light sources. This feature is enabled through the device's I2C interface and can be used to detect and measure flicker in a variety of applications.
-
The typical response time of the TCS37013M is around 2.5 ms, making it suitable for applications that require fast and accurate color and brightness measurements.
