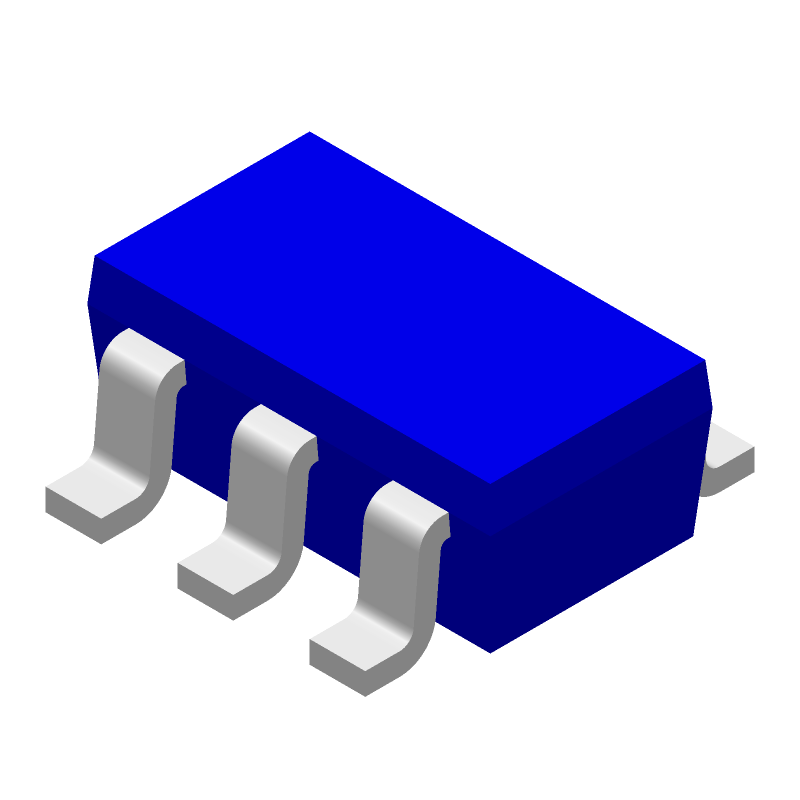

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TCR2LF32 by Toshiba America Electronic Components
Results Overview of TCR2LF32 by Toshiba America Electronic Components
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TCR2LF32 Information
TCR2LF32 by Toshiba America Electronic Components is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Part Details for TCR2LF32
TCR2LF32 CAD Models
TCR2LF32 Part Data Attributes
|
|
TCR2LF32
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
TCR2LF32
Toshiba America Electronic Components
LDO Regulators (Single Output CMOS Type)
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Package Description | SOT-25, 5 PIN | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Toshiba | |
| Dropout Voltage1-Max | 0.3 V | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 3.7 V | |
| JESD-30 Code | R-PDSO-G5 | |
| Length | 2.9 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Operating Temperature TJ-Max | 85 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Voltage1-Max | 3.232 V | |
| Output Voltage1-Min | 3.168 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 1.4 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 1.6 mm |
