Capacitors / Tantalum Capacitors / TCJY106M035R0070E
Datasheets
TCJY106M035R0070E by: Kyocera AVX Components

Tantalum Capacitor, Polarized, Tantalum, 35V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 2917, CHIP

Part Details for TCJY106M035R0070E by Kyocera AVX Components

Results Overview of TCJY106M035R0070E by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Audio and Video Systems Entertainment and Gaming

TCJY106M035R0070E Information

TCJY106M035R0070E by Kyocera AVX Components is a Tantalum Capacitor.
Tantalum Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for TCJY106M035R0070E

Part # Distributor Description Stock Price Buy
DISTI # 478-13340-1-ND
DigiKey CAP TANT POLY 10UF 35V 2917 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 1367
In Stock
  • 1 $1.8700
  • 10 $1.2530
  • 50 $1.0088
  • 100 $0.9335
  • 500 $0.8062
  • 1,000 $0.7668
  • 2,000 $0.7343
  • 3,000 $0.7181
  • 5,000 $0.7000
  • 7,000 $0.6895
  • 10,000 $0.6794
$0.6794 / $1.8700 Buy Now
DISTI # TCJY106M035R0070E
Avnet Americas Tantalum Polymer Capacitor, 10 uF, 35 V, ? 20%, Y, 70 mohm, 2917 [7343-20 Metric] - Tape and Reel (Alt: TCJY106M035R0070E) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel 0
  • 1,000 $0.9080
  • 2,000 $0.8968
  • 4,000 $0.8817
  • 6,000 $0.8704
  • 8,000 $0.8592
$0.8592 / $0.9080 Buy Now
DISTI # 581-TCJY106M35R0070E
Mouser Electronics Tantalum Capacitors - Polymer 35V 10uF 20% 2917 ES R=70mOhm Black Resin RoHS: Compliant 1233
  • 1 $1.8700
  • 10 $1.2600
  • 50 $1.0100
  • 100 $0.9340
  • 1,000 $0.9330
$0.9330 / $1.8700 Buy Now
Future Electronics Tantalum Capacitors Polymer 10uF 35VDC Y CASE 20% 0.07 Ohm E-black resin RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks Container: Reel 12000
Reel
  • 1,000 $0.6100
  • 2,000 $0.6000
  • 3,000 $0.5900
$0.5900 / $0.6100 Buy Now
DISTI # TCJY106M035R0070E
TTI Tantalum Capacitors - Polymer 35V 10uF 20% 2917 ES R=70mOhm Black Resin RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel Americas - 0
  • 1,000 $1.0000
  • 2,000 $0.9800
  • 3,000 $0.9600
  • 50,000 $0.9200
$0.9200 / $1.0000 Buy Now
Future Electronics Tantalum Capacitors Polymer 10uF 35VDC Y CASE 20% 0.07 Ohm E-black resin Min Qty: 1000 Package Multiple: 1000 12000
null
  • 1,000 $0.6100
  • 2,000 $0.6000
  • 3,000 $0.5900
$0.5900 / $0.6100 Buy Now
DISTI # TCJY106M035R0070E
TME Capacitor: tantalum-polymer, low ESR, 10uF, 35VDC, Y, 2917, TCJ, SMD Min Qty: 1000 0
  • 1,000 $0.6790
  • 2,000 $0.6410
  • 3,000 $0.6220
  • 5,000 $0.6000
  • 7,000 $0.5870
$0.5870 / $0.6790 RFQ
DISTI # TCJY106M035R0070E
Avnet Abacus Tantalum Polymer Capacitor 10 uF 35 V 20 Y 70 mohm 2917 734320 Metric - Tape and Reel (Alt: TCJY106M035R0070E) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now

Part Details for TCJY106M035R0070E

TCJY106M035R0070E CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

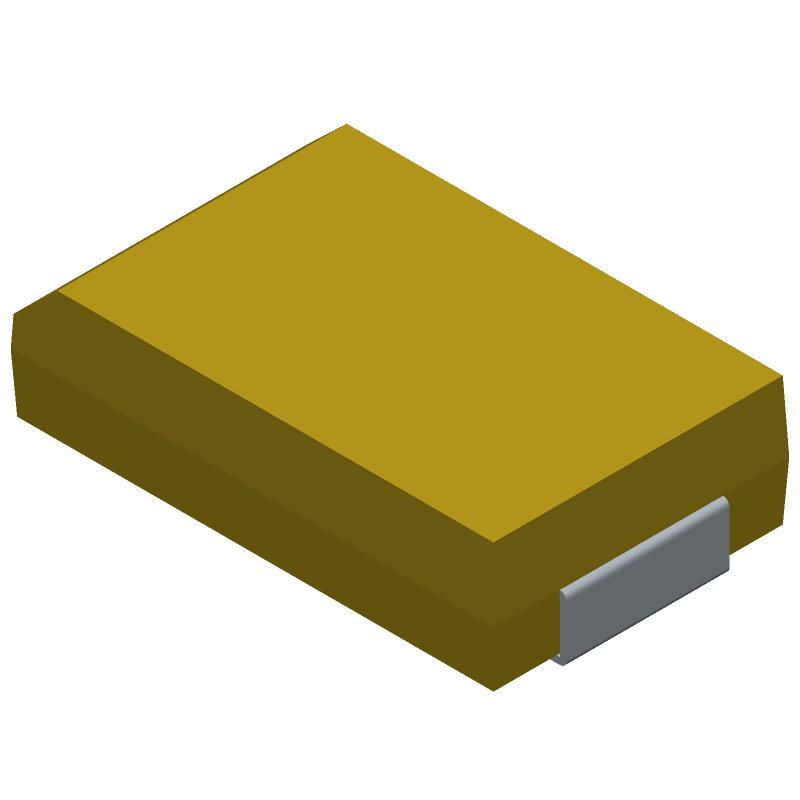

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TCJY106M035R0070E Part Data Attributes

Parametric Data
TCJY106M035R0070E Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
TCJY106M035R0070E Kyocera AVX Components Tantalum Capacitor, Polarized, Tantalum, 35V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 2917, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.21.00.50
Factory Lead Time 12 Weeks
Samacsys Manufacturer Kyocera AVX
Additional Feature ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
Capacitance 10 µF
Capacitor Type TANTALUM CAPACITOR
Dielectric Material TANTALUM (SOLID POLYMER)
ESR 70 mΩ
Height 2 mm
JESD-609 Code e3
Leakage Current 0.035 mA
Length 7.3 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Package Style SMT
Packing Method TR, PLASTIC, 7 INCH
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 35 V
Ripple Current 700 mA
Size Code 2917
Surface Mount YES
Tan Delta 0.06
Terminal Finish Tin (Sn)
Terminal Shape J BEND
Width 4.3 mm

Alternate Parts for TCJY106M035R0070E

This table gives cross-reference parts and alternative options found for TCJY106M035R0070E. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TCJY106M035R0070E, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TCJY106M035R0070 Kyocera AVX Components $1.2952 Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 35V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 2917, CHIP, ROHS COMPLIANT TCJY106M035R0070E vs TCJY106M035R0070
TCJY106M035S0070E Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum, 35V, 20% +Tol, 20% -Tol, 10uF, Surface Mount, 2917, CHIP TCJY106M035R0070E vs TCJY106M035S0070E
TA035PCJ106MYR0070 VENKEL LTD Check for Price Tantalum Capacitor, Tantalum (solid Polymer), TCJY106M035R0070E vs TA035PCJ106MYR0070

TCJY106M035R0070E Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the TCJY106M035R0070E is between 250°C to 260°C for a maximum of 3 seconds.

  • Yes, the TCJY106M035R0070E is a high-frequency capacitor with a self-resonant frequency of 100 MHz, making it suitable for high-frequency applications.

  • The maximum operating temperature range for the TCJY106M035R0070E is -55°C to +125°C.

  • Yes, the TCJY106M035R0070E is RoHS and REACH compliant, making it suitable for use in environmentally friendly designs.

  • The recommended land pattern for the TCJY106M035R0070E is a rectangular pad with a minimum size of 1.5 mm x 3.5 mm.
