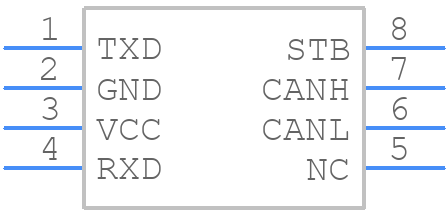

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TCAN1042HGDRQ1 by Texas Instruments
Results Overview of TCAN1042HGDRQ1 by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Healthcare
TCAN1042HGDRQ1 Information
TCAN1042HGDRQ1 by Texas Instruments is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for TCAN1042HGDRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-TCAN1042HGDRQ1CT-ND
|
DigiKey | IC TRANSCEIVER 1/1 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.8443 / $1.7400 | Buy Now |
|
DISTI #
595-TCAN1042HGDRQ1
|
Mouser Electronics | CAN Interface IC Automotive 70-V bus- fault-protected CAN A 595-TCAN1042HGDQ1 RoHS: Compliant | 2674 |
|
$0.8320 / $2.0900 | Buy Now |
|
DISTI #
J56:1989_10186901
|
Arrow Electronics | CAN 5Mbps Normal/Standby 5V Automotive AEC-Q100 8-Pin SOIC T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 6 Weeks | Europe - 2500 |
|
$0.7279 / $0.7460 | Buy Now |
|
DISTI #
TCAN1042HGDRQ1
|
TME | IC: interface, transceiver, 5Mbps, 4.5÷5.5VDC, SOIC8, -55÷125°C Min Qty: 1 | 0 |
|
$0.7800 / $1.7000 | RFQ |
|
|
Vyrian | Telecommunications | 5403 |
|
RFQ |
Part Details for TCAN1042HGDRQ1
TCAN1042HGDRQ1 CAD Models
TCAN1042HGDRQ1 Part Data Attributes
|
|
TCAN1042HGDRQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TCAN1042HGDRQ1
Texas Instruments
Automotive 70-V bus-fault-protected CAN transceiver with 5-Mbps flexible data-rate 8-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | SOIC-8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Data Rate | 5000 Mbps | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.905 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Number of Transceivers | 1 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 110 mA | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Telecom IC Type | ETHERNET TRANSCEIVER | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.895 mm |
TCAN1042HGDRQ1 Frequently Asked Questions (FAQ)
-
The maximum cable length supported by the TCAN1042HGDRQ1 is 40 meters, assuming a 120-ohm twisted-pair cable with a maximum propagation delay of 5 ns/m.
-
To ensure EMC with the TCAN1042HGDRQ1, follow proper PCB layout guidelines, use a common-mode choke, and add shielding to the CAN bus cables. Additionally, ensure that the device is properly grounded and decoupled.
-
The recommended termination scheme for the TCAN1042HGDRQ1 is a 120-ohm resistor at each end of the CAN bus, with a common-mode termination of 2 x 47 ohms to VCC or VSS.
-
The TCAN1042HGDRQ1 has built-in error detection and fault handling mechanisms. Use the device's error counters and status registers to detect and respond to bus faults, and implement a watchdog timer to reset the device in case of a fault.
-
The TCAN1042HGDRQ1 supports data rates up to 1 Mbps, making it suitable for high-speed CAN applications.
