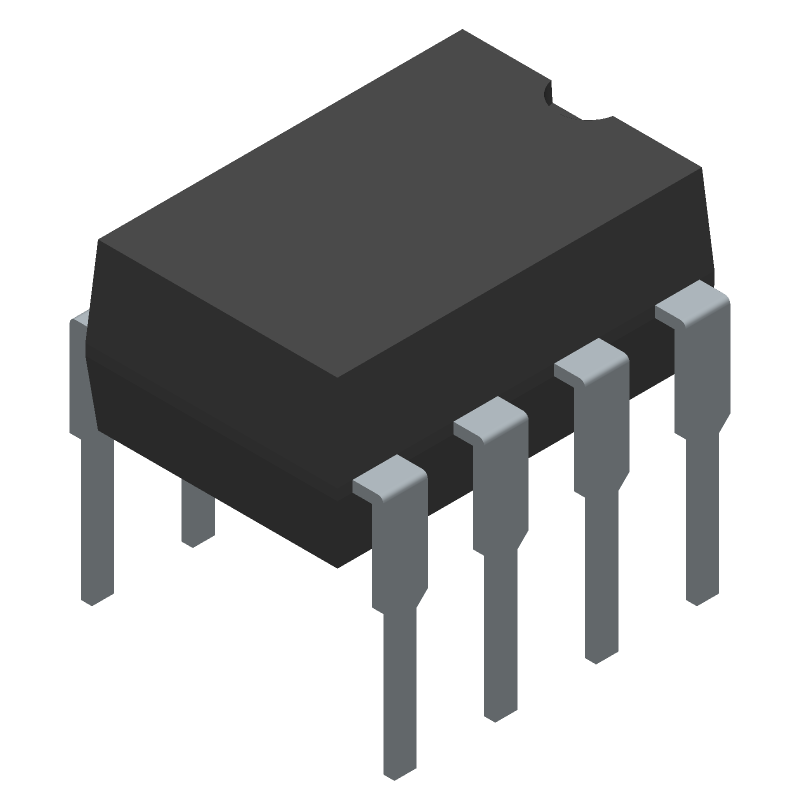

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TC7662ACPA by Microchip Technology Inc
Results Overview of TC7662ACPA by Microchip Technology Inc
- Distributor Offerings: (21 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
TC7662ACPA Information
TC7662ACPA by Microchip Technology Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TC7662ACPA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
98K1418
|
Newark | Dc-Dc Charge Pump, Inverting, Dip-8, Ic Case/Package:Dip, No. Of Pins:8Pins, Output Current Max:40Ma, Fixed Output Voltage Nom:-, Adjustable Output Voltage Min:-18V, Adjustable Output Voltage Max:-3V, Input Voltage Min:3V, Msl:- Rohs Compliant: Yes |Microchip TC7662ACPA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 264 |
|
$2.8200 / $3.7200 | Buy Now |
|
DISTI #
38AH9395
|
Newark | Hi Voltage Dc-Dc Converter Rohs Compliant: Yes |Microchip TC7662ACPA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$2.9300 / $3.6100 | Buy Now |
|
DISTI #
TC7662ACPA-ND
|
DigiKey | IC REG CHARG PUMP INV 40MA 8PDIP Min Qty: 1 Lead time: 6 Weeks Container: Tube |
196 In Stock |
|
$2.8200 / $3.7200 | Buy Now |
|
DISTI #
TC7662ACPA
|
Avnet Americas | Charge Pump INV -18V to -3V 40mA 8-Pin PDIP Tube - Rail/Tube (Alt: TC7662ACPA) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Tube | 20 |
|
$1.5470 / $1.6450 | Buy Now |
|
DISTI #
579-TC7662ACPA
|
Mouser Electronics | Switching Voltage Regulators High Voltage RoHS: Compliant | 4586 |
|
$2.8200 / $3.7200 | Buy Now |
|
DISTI #
TC7662ACPA
|
Microchip Technology Inc | Hi Voltage DC-DC Converter, PDIP, Projected EOL: 2034-05-16 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube |
3 Alternates Available |
|
$2.1600 / $3.7200 | Buy Now |
|
DISTI #
70045793
|
RS | Microchip Charge Pump Inverting -18 - -3 V 8-Pin PDIP Min Qty: 1 Package Multiple: 1 Lead time: 4 Weeks, 0 Days Container: Bulk | 190 |
|
$3.1900 / $3.7600 | Buy Now |
|
|
Future Electronics | TC7662A Series 3 V to 18 V Charge Pump DC-to-DC Converter - PDIP-8 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Container: Tube | 1741Tube |
|
$0.4750 / $0.5400 | Buy Now |
|
|
Onlinecomponents.com | DC/DC Adjustable Charge Pump Voltage Converter - 3V to 18V in - -18V to -3V/40 mA out - PDIP - 8 Pin. RoHS: Compliant |
363 In Stock 4320 Factory Stock |
|
$1.5500 / $1.8200 | Buy Now |
|
DISTI #
71239143
|
Verical | Charge Pump INV -3V to -18V 40mA 8-Pin PDIP Tube RoHS: Compliant Min Qty: 17 Package Multiple: 1 Date Code: 2227 | Americas - 251 |
|
$2.7000 / $3.5700 | Buy Now |
Part Details for TC7662ACPA
TC7662ACPA CAD Models
TC7662ACPA Part Data Attributes
|
|
TC7662ACPA
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
TC7662ACPA
Microchip Technology Inc
SWITCHED CAPACITOR CONVERTER, 12 kHz SWITCHING FREQ-MAX, PDIP8, PLASTIC, DIP-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | DIP | |
| Package Description | PLASTIC, DIP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Analog IC - Other Type | SWITCHED CAPACITOR CONVERTER | |
| Input Voltage-Max | 18 V | |
| Input Voltage-Min | 3 V | |
| Input Voltage-Nom | 15 V | |
| JESD-30 Code | R-PDIP-T8 | |
| JESD-609 Code | e3 | |
| Length | 10.16 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 0.04 A | |
| Output Voltage-Max | -18 V | |
| Output Voltage-Min | -3 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Qualification Status | Not Qualified | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 5.08 mm | |
| Supply Current-Max (Isup) | 0.7 mA | |
| Surface Mount | NO | |
| Switcher Configuration | DOUBLER INVERTER | |
| Switching Frequency-Max | 12 kHz | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
Alternate Parts for TC7662ACPA
This table gives cross-reference parts and alternative options found for TC7662ACPA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TC7662ACPA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TC7662AMJA | Microchip Technology Inc | $13.2818 | SWITCHED CAPACITOR CONVERTER, 12 kHz SWITCHING FREQ-MAX, CDIP8, CERDIP-8 | TC7662ACPA vs TC7662AMJA |
| TC7662AEPA | Microchip Technology Inc | $4.9094 | SWITCHED CAPACITOR CONVERTER, 12 kHz SWITCHING FREQ-MAX, PDIP8, PLASTIC, DIP-8 | TC7662ACPA vs TC7662AEPA |
| TC7662ACPAG | Microchip Technology Inc | Check for Price | SWITCHED CAPACITOR CONVERTER, 12 kHz SWITCHING FREQ-MAX, PDIP8, PLASTIC, DIP-8 | TC7662ACPA vs TC7662ACPAG |
| TC7662AMJA | Teledyne Technologies Inc | Check for Price | Switched Capacitor Converter, CMOS, CDIP8 | TC7662ACPA vs TC7662AMJA |
| TC7662ACPA | Teledyne Technologies Inc | Check for Price | Switched Capacitor Converter, CMOS, PDIP8 | TC7662ACPA vs TC7662ACPA |
| TC7662AEPA | Teledyne Technologies Inc | Check for Price | Switched Capacitor Converter, CMOS, PDIP8 | TC7662ACPA vs TC7662AEPA |
| TC7662AEPAG | Microchip Technology Inc | Check for Price | SWITCHED CAPACITOR CONVERTER, 12 kHz SWITCHING FREQ-MAX, PDIP8, PLASTIC, DIP-8 | TC7662ACPA vs TC7662AEPAG |
TC7662ACPA Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the TC7662ACPA is 12V. Exceeding this voltage may damage the device.
-
To ensure stable operation, it is recommended to decouple the input and output pins with capacitors, and to use a minimum of 10uF capacitor on the output pin. Additionally, the device should be operated within the recommended temperature range of -40°C to 85°C.
-
The minimum input voltage required for the TC7662ACPA to operate is 3V. However, the device can operate down to 2V with reduced performance.
-
Yes, the TC7662ACPA can be used in a switching power supply application. However, it is recommended to add external components such as inductors and diodes to filter the output and ensure stable operation.
-
The output voltage of the TC7662ACPA can be calculated using the formula: Vout = Vin x (1 + R1/R2), where R1 and R2 are the resistors used in the voltage divider network.
