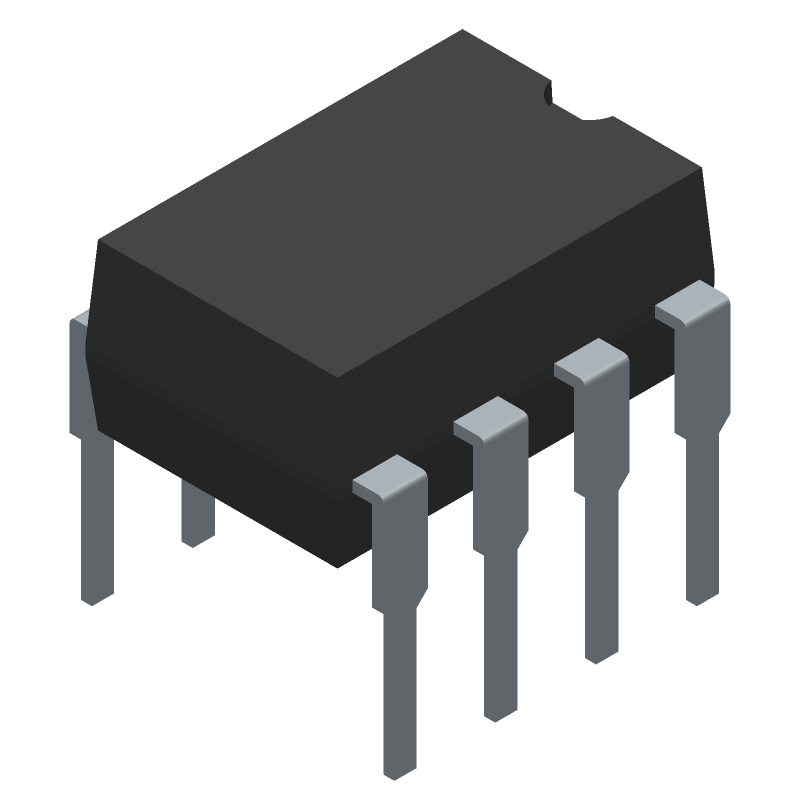

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TC7660HEPA by Microchip Technology Inc
Results Overview of TC7660HEPA by Microchip Technology Inc
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Computing and Data Storage
Aerospace and Defense
Energy and Power Systems
Electronic Manufacturing
Renewable Energy
Automotive
TC7660HEPA Information
TC7660HEPA by Microchip Technology Inc is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TC7660HEPA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
20T6919
|
Newark | Ic, Charge Pump, High Freq, 8Dip, Output Type:Adjustable, Input Voltage Min:1.5V, Input Voltage Max:10V, Dc/Dc Converter Ic Case:Dip, No. Of Pins:8Pins, Output Current:20Ma, Fixed Output Voltage Nom.:-, Adjustable Output Voltage Rohs Compliant: Yes |Microchip TC7660HEPA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 15 |
|
$1.0900 / $1.4000 | Buy Now |
|
DISTI #
TC7660HEPA-ND
|
DigiKey | IC REG CHARG PUMP INV 20MA 8PDIP Min Qty: 1 Lead time: 6 Weeks Container: Tube |
514 In Stock |
|
$1.0900 / $1.4000 | Buy Now |
|
DISTI #
TC7660HEPA
|
Avnet Americas | Charge Pump INV -10V to -1.5V 20mA 8-Pin PDIP Tube - Rail/Tube (Alt: TC7660HEPA) RoHS: Compliant Min Qty: 1620 Package Multiple: 60 Lead time: 6 Weeks, 0 Days Container: Tube | 0 |
|
$0.3568 / $0.4194 | Buy Now |
|
DISTI #
579-TC7660HEPA
|
Mouser Electronics | Switching Voltage Regulators High Frequency RoHS: Compliant | 290 |
|
$1.0900 / $1.4000 | Buy Now |
|
DISTI #
V99:2348_06515515
|
Arrow Electronics | Charge Pump INV -1.5V to -10V 20mA 8-Pin PDIP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 1737 | Americas - 3 |
|
$0.2237 / $0.6945 | Buy Now |
|
DISTI #
TC7660HEPA
|
Microchip Technology Inc | Hi-Freq DC-DC Converter, PDIP, Projected EOL: 2034-05-16 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube |
0 Alternates Available |
|
$0.8100 / $1.4000 | Buy Now |
|
DISTI #
70389109
|
RS | Microchip TC7660HEPA, Charge Pump Inverting 20mA 120 kHz,-1.5 to -10V,8-Pin, PDIP Min Qty: 540 Package Multiple: 1 Lead time: 45 Weeks, 0 Days Container: Bulk | 0 |
|
$1.1900 / $1.4000 | RFQ |
|
|
Onlinecomponents.com | Charge Pump Switching Regulator - Positive or Negative - 1 Output: 20mA -Vin, 2Vin - 1.5 to 10V Input - 120kHz Switching - 8-PDIP. RoHS: Compliant | 540 Factory Stock |
|
$0.5990 / $0.7460 | Buy Now |
|
|
Bristol Electronics | 235 |
|
RFQ | ||
|
|
Quest Components | 188 |
|
$1.2960 / $2.5920 | Buy Now |
Part Details for TC7660HEPA
TC7660HEPA CAD Models
TC7660HEPA Part Data Attributes
|
|
TC7660HEPA
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
TC7660HEPA
Microchip Technology Inc
SWITCHED CAPACITOR REGULATOR, 120 kHz SWITCHING FREQ-MAX, PDIP8, PLASTIC, DIP-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | DIP | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 6 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Analog IC - Other Type | SWITCHED CAPACITOR REGULATOR | |
| Input Voltage-Max | 10 V | |
| Input Voltage-Min | 1.5 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PDIP-T8 | |
| JESD-609 Code | e3 | |
| Length | 9.5 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | -10 V | |
| Output Voltage-Min | -1.5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 mm | |
| Supply Current-Max (Isup) | 1 mA | |
| Surface Mount | NO | |
| Switcher Configuration | DOUBLER INVERTER | |
| Switching Frequency-Max | 120 kHz | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
Alternate Parts for TC7660HEPA
This table gives cross-reference parts and alternative options found for TC7660HEPA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TC7660HEPA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TC7660HCPAG | Microchip Technology Inc | Check for Price | SWITCHED CAPACITOR REGULATOR, 120 kHz SWITCHING FREQ-MAX, PDIP8, PLASTIC, DIP-8 | TC7660HEPA vs TC7660HCPAG |
TC7660HEPA Frequently Asked Questions (FAQ)
-
The maximum input voltage that can be applied to the TC7660HEPA is 12V, although it's recommended to operate within the 3V to 9V range for optimal performance.
-
To ensure stability, make sure to follow the recommended PCB layout guidelines, use a 10uF capacitor at the input, and a 10uF capacitor at the output. Also, keep the input and output capacitors close to the device and use short traces.
-
The minimum input voltage required for the TC7660HEPA to start up is around 2.5V, although it's recommended to operate above 3V for optimal performance.
-
Yes, the TC7660HEPA can be used as a voltage doubler. However, it's essential to follow the recommended application circuit and ensure that the input voltage is within the recommended range.
-
The output voltage of the TC7660HEPA is approximately twice the input voltage. For example, if the input voltage is 5V, the output voltage will be around 10V.
