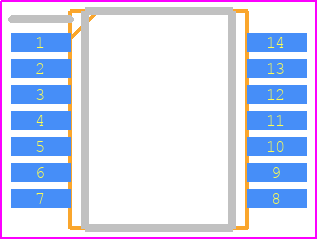

Footprint
-

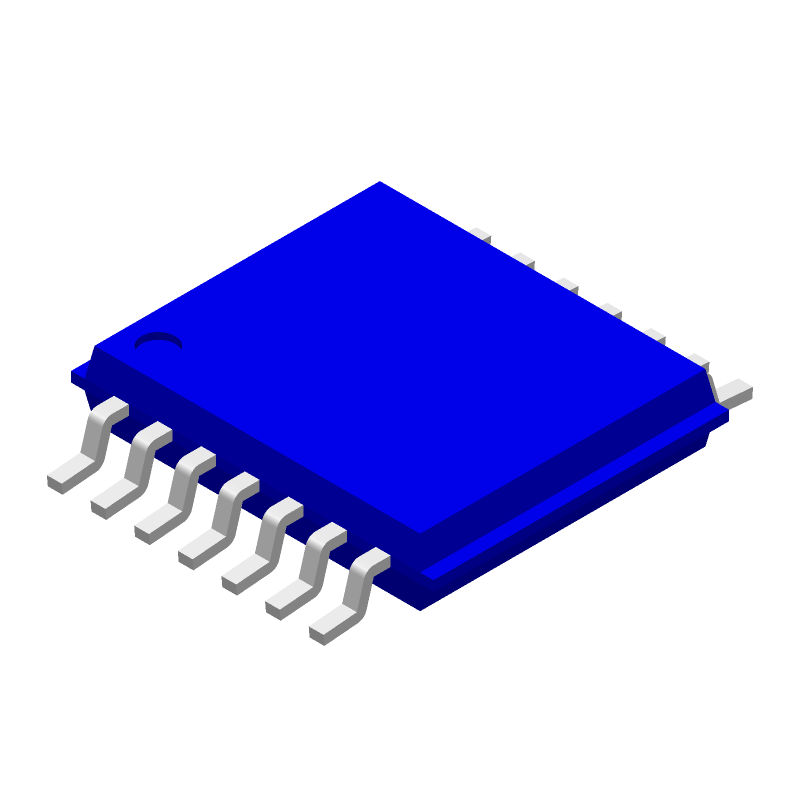

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TC74VHC14FT by Toshiba America Electronic Components
Results Overview of TC74VHC14FT by Toshiba America Electronic Components
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
TC74VHC14FT Information
TC74VHC14FT by Toshiba America Electronic Components is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for TC74VHC14FT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 5124 |
|
RFQ | ||
|
|
Quest Components | IC,LOGIC GATE,HEX INVERTER,HC-CMOS,TSSOP,14PIN,PLASTIC | 4099 |
|
$0.2975 / $0.8500 | Buy Now |
|
|
Vyrian | Logic ICs | 1139 |
|
RFQ |
Part Details for TC74VHC14FT
TC74VHC14FT CAD Models
TC74VHC14FT Part Data Attributes
|
|
TC74VHC14FT
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
TC74VHC14FT
Toshiba America Electronic Components
IC AHC/VHC/H/U/V SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 4.40 MM, 0.65 MM PITCH, PLASTIC, TSSOP-14, Gate
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Part Package Code | TSSOP | |
| Package Description | 4.40 MM, 0.65 MM PITCH, LEAD FREE, PLASTIC, TSSOP-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Toshiba | |
| Family | AHC/VHC | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | INVERTER | |
| Max I(ol) | 0.008 A | |
| Number of Functions | 6 | |
| Number of Inputs | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Prop. Delay@Nom-Sup | 12 ns | |
| Propagation Delay (tpd) | 18.5 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | YES | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Width | 4.4 mm |
Alternate Parts for TC74VHC14FT
This table gives cross-reference parts and alternative options found for TC74VHC14FT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TC74VHC14FT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SN74AHC14PWR | Texas Instruments | $0.0944 | 6-ch, 2-V to 5.5-V inverters with Schmitt-Trigger inputs 14-TSSOP -40 to 125 | TC74VHC14FT vs SN74AHC14PWR |
| 74VHC14MTC | onsemi | $0.1693 | Hex Schmitt Inverter, TSSOP-14 WB, 2350-TUBE | TC74VHC14FT vs 74VHC14MTC |
| SN74AHC14QPWRG4Q1 | Texas Instruments | $0.2154 | Automotive 6-ch, 2-V to 5.5-V inverters with Schmitt-Trigger inputs 14-TSSOP -40 to 125 | TC74VHC14FT vs SN74AHC14QPWRG4Q1 |
| 74AHC14PW | Philips Semiconductors | Check for Price | Inverter, CMOS, PDSO14 | TC74VHC14FT vs 74AHC14PW |
| 935262759112 | NXP Semiconductors | Check for Price | IC AHC SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 4.40 MM, PLASTIC, SOT-42-1, TSSOP-14, Gate | TC74VHC14FT vs 935262759112 |
| 935262759118 | NXP Semiconductors | Check for Price | IC AHC SERIES, HEX 1-INPUT INVERT GATE, PDSO14, 4.40 MM, PLASTIC, SOT-42-1, TSSOP-14, Gate | TC74VHC14FT vs 935262759118 |
| TC74VHC14FT(EK2,M) | Toshiba America Electronic Components | Check for Price | Inverter Schmitt Trigger 6-Element CMOS 14-Pin TSSOP | TC74VHC14FT vs TC74VHC14FT(EK2,M) |
| MC74VHC14DT | Motorola Mobility LLC | Check for Price | AHC/VHC SERIES, HEX 1-INPUT INVERT GATE, PDSO14, PLASTIC, TSSOP-14 | TC74VHC14FT vs MC74VHC14DT |
TC74VHC14FT Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the TC74VHC14FT is 2.0V to 5.5V.
-
To ensure the Schmitt trigger inputs are properly biased, connect a pull-up or pull-down resistor to the input pin, and ensure the input voltage is within the recommended operating voltage range.
-
The maximum frequency of operation for the TC74VHC14FT is typically 100 MHz, but this can vary depending on the specific application and operating conditions.
-
To ensure proper operation, power-up and power-down sequences should be controlled to prevent voltage spikes or glitches on the power supply lines. A slow and controlled power-up and power-down sequence is recommended.
-
The maximum output current for the TC74VHC14FT is typically 8mA per output pin, but this can vary depending on the specific application and operating conditions.
