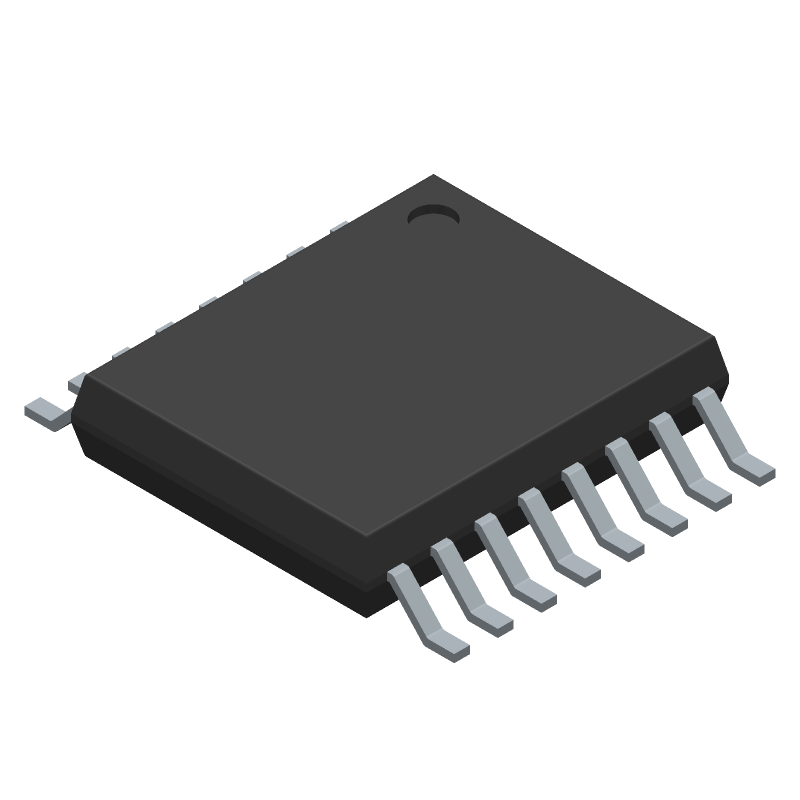

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TC74HC4051AFT(EL) by Toshiba America Electronic Components
Results Overview of TC74HC4051AFT(EL) by Toshiba America Electronic Components
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
TC74HC4051AFT(EL) Information
TC74HC4051AFT(EL) by Toshiba America Electronic Components is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for TC74HC4051AFT(EL)
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Quest Components | 8-CHANNEL, DBL POLE DBL THROW SWITCH, PDSO16 | 399 |
|
$0.2247 / $0.4815 | Buy Now |
|
DISTI #
TC74HC4051AFT(EL)
|
EBV Elektronik | CMOS logic IC (Alt: TC74HC4051AFT(EL)) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 0 Days | EBV - 1950 |
|
Buy Now | |
|
|
LCSC | TSSOP-16 Signal Switches Multiplexers Decoders ROHS | 3 |
|
$0.5809 / $0.6171 | Buy Now |
Part Details for TC74HC4051AFT(EL)
TC74HC4051AFT(EL) CAD Models
TC74HC4051AFT(EL) Part Data Attributes
|
|
TC74HC4051AFT(EL)
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
TC74HC4051AFT(EL)
Toshiba America Electronic Components
IC IC,ANALOG MUX,SINGLE,8-CHANNEL,HC-CMOS,TSSOP,16PIN,PLASTIC, Multiplexer or Switch
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Package Description | 4.40 MM, 0.65 MM PITCH, PLASTIC, TSSOP-16 | |
| Reach Compliance Code | unknown | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Toshiba | |
| Additional Feature | IT CAN ALSO OPERATE WITH 2 TO 12 V SUPPLY | |
| Analog IC - Other Type | DPDT | |
| JESD-30 Code | R-PDSO-G16 | |
| Length | 5 mm | |
| Neg Supply Voltage-Max (Vsup) | -6 V | |
| Neg Supply Voltage-Min (Vsup) | ||
| Neg Supply Voltage-Nom (Vsup) | -4.5 V | |
| Number of Channels | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Off-state Isolation-Nom | 50 dB | |
| On-state Resistance Match-Nom | 5 Ω | |
| On-state Resistance-Max (Ron) | 120 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Signal Current-Max | 0.025 A | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 4.5 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 315 ns | |
| Switch-on Time-Max | 280 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 4.4 mm |
TC74HC4051AFT(EL) Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the TC74HC4051AFT(EL) is 10 MHz.
-
To ensure signal integrity, use a low-impedance output driver, minimize trace lengths, and use a ground plane to reduce noise and crosstalk.
-
Yes, the TC74HC4051AFT(EL) is rated for operation from -40°C to 125°C, making it suitable for high-temperature environments.
-
To avoid latch-up, ensure that the power supply voltage (VCC) is applied before the input signals, and that the input signals are stable before the power supply voltage is removed.
-
Use a star topology for the analog inputs, keep the analog and digital grounds separate, and use a solid ground plane to reduce noise and crosstalk.
