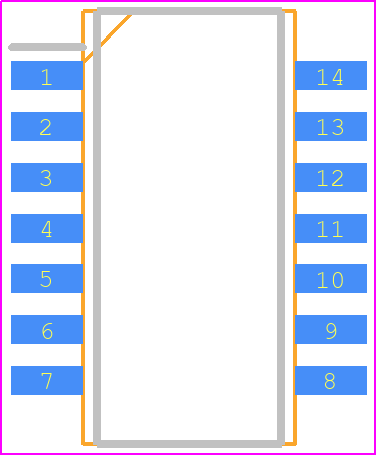

Footprint
-

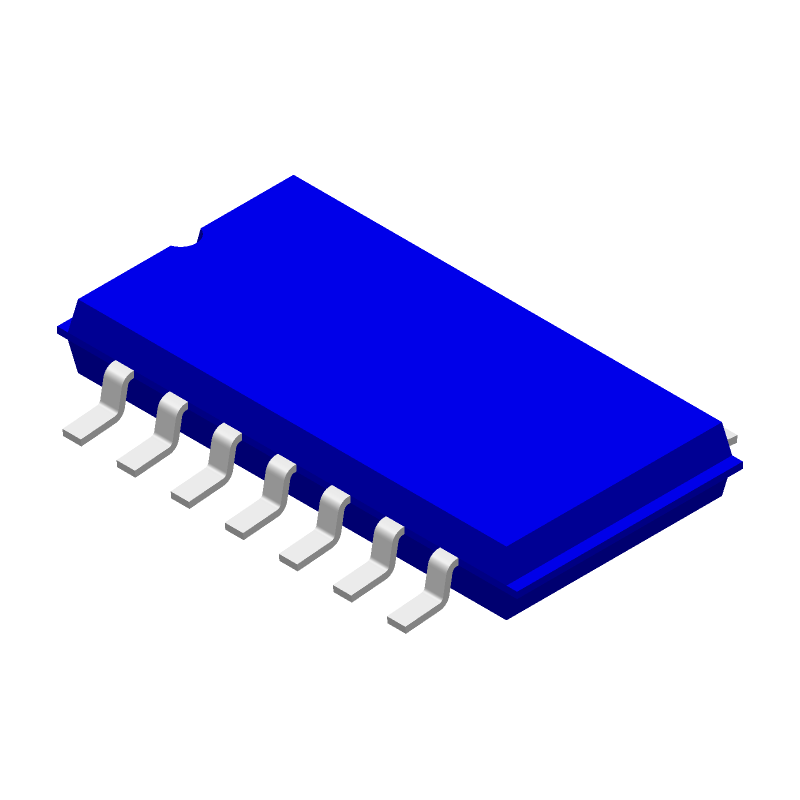

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TC74AC14F(F) by Toshiba America Electronic Components
Results Overview of TC74AC14F(F) by Toshiba America Electronic Components
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Robotics and Drones
TC74AC14F(F) Information
TC74AC14F(F) by Toshiba America Electronic Components is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for TC74AC14F(F)
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Logic ICs | 123 |
|
RFQ |
Part Details for TC74AC14F(F)
TC74AC14F(F) CAD Models
TC74AC14F(F) Part Data Attributes
|
|
TC74AC14F(F)
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
TC74AC14F(F)
Toshiba America Electronic Components
IC,LOGIC GATE,HEX INVERTER,AC-CMOS,SOP,14PIN,PLASTIC
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Package Description | SOP, SOP14,.3 | |
| Reach Compliance Code | unknown | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Toshiba | |
| Family | AC | |
| JESD-30 Code | R-PDSO-G14 | |
| Length | 10.3 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | INVERTER | |
| Max I(ol) | 0.075 A | |
| Number of Functions | 6 | |
| Number of Inputs | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 150 mA | |
| Prop. Delay@Nom-Sup | 11 ns | |
| Propagation Delay (tpd) | 15 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | YES | |
| Seated Height-Max | 1.9 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5.3 mm |
TC74AC14F(F) Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the TC74AC14F(F) is 4.5V to 5.5V, although it can operate from 3V to 5.5V with reduced performance.
-
The TC74AC14F(F) has a standard 14-pin DIP package. Ensure correct pinout by referencing the datasheet and paying attention to the pin 1 indicator on the package.
-
The maximum clock frequency supported by the TC74AC14F(F) is 100 MHz, although this may vary depending on the specific application and operating conditions.
-
Yes, the TC74AC14F(F) can be used in a 3.3V system, but the output voltage levels may not be as high as those in a 5V system, and the device may not meet the specified propagation delay times.
-
The TC74AC14F(F) has a maximum power dissipation of 500 mW. Ensure proper heat dissipation by using a heat sink or providing adequate airflow around the device.
