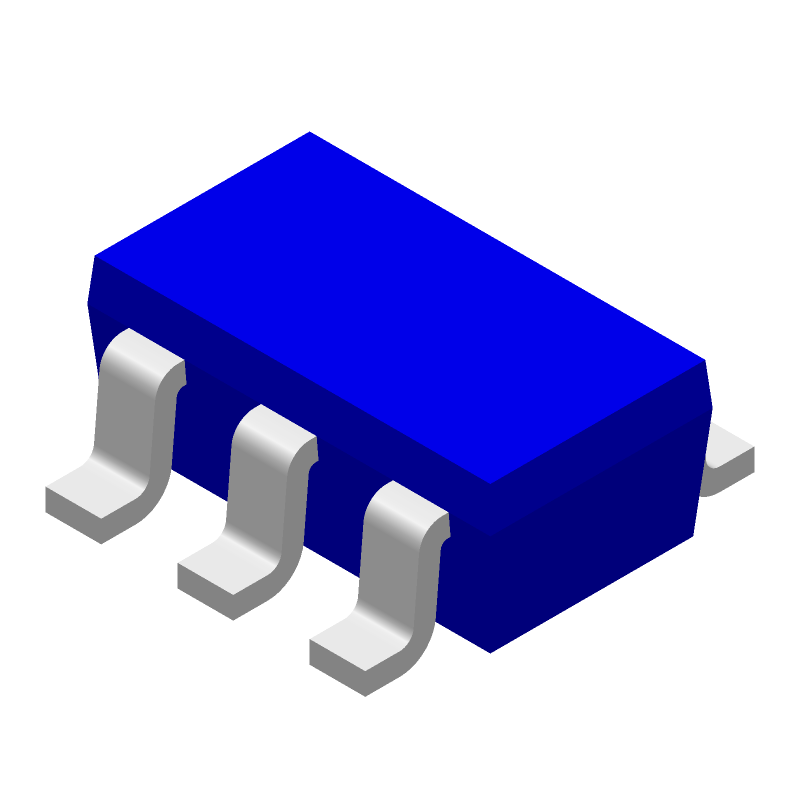

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TC4S66F by Toshiba America Electronic Components
Results Overview of TC4S66F by Toshiba America Electronic Components
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
TC4S66F Information
TC4S66F by Toshiba America Electronic Components is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for TC4S66F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 6000 |
|
RFQ | ||
|
|
Bristol Electronics | 2262 |
|
RFQ | ||
|
|
Quest Components | IC,ANALOG SWITCH,SINGLE,SPST,CMOS,TSOP,6PIN,PLASTIC | 1869 |
|
$0.0910 / $0.2100 | Buy Now |
|
|
Quest Components | IC,ANALOG SWITCH,SINGLE,SPST,CMOS,TSOP,6PIN,PLASTIC | 1340 |
|
$0.2100 / $0.7000 | Buy Now |
|
DISTI #
TC4S66F
|
TME | IC: analog switch, SPST-NO, Ch: 1, SC74A, 3÷18VDC, reel,tape, 30MHz Min Qty: 3 | 2260 |
|
$0.2200 / $0.2990 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Not Compliant |
|
|
RFQ |
Part Details for TC4S66F
TC4S66F CAD Models
TC4S66F Part Data Attributes
|
|
TC4S66F
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
TC4S66F
Toshiba America Electronic Components
IC 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO5, 0.95 MM PITCH, PLASTIC, SSOP-5, Multiplexer or Switch
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Part Package Code | SSOP | |
| Package Description | SSOP-5 | |
| Pin Count | 5 | |
| Reach Compliance Code | unknown | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Toshiba | |
| Analog IC - Other Type | SPST | |
| JESD-30 Code | R-PDSO-G5 | |
| Length | 2.9 mm | |
| Normal Position | NO | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| On-state Resistance-Max (Ron) | 950 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSSOP | |
| Package Equivalence Code | SOP5/6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | |
| Seated Height-Max | 1.4 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 80 ns | |
| Switch-on Time-Max | 120 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Width | 1.6 mm |
Alternate Parts for TC4S66F
This table gives cross-reference parts and alternative options found for TC4S66F. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TC4S66F, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TC4S66FT5LFT | Toshiba America Electronic Components | Check for Price | IC IC,ANALOG SWITCH,SINGLE,SPST,CMOS,TSOP,6PIN,PLASTIC, Multiplexer or Switch | TC4S66F vs TC4S66FT5LFT |
TC4S66F Frequently Asked Questions (FAQ)
-
Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
-
Use a heat sink, ensure good airflow, and consider derating the device's power consumption to prevent overheating. Also, follow Toshiba's recommended operating conditions and thermal design guidelines.
-
Although the datasheet doesn't specify a maximum voltage, it's recommended to limit the input voltage to 5.5V to prevent damage to the internal ESD protection diodes.
-
Yes, but be aware that the device is not designed for high-frequency switching applications. It's recommended to use a dedicated switch-mode regulator IC for such applications.
-
Follow a controlled power-up sequence, ensuring that the input voltage rises slowly (e.g., 1-2 ms) and that the output voltage is stable before applying a load. During power-down, ensure that the input voltage falls slowly to prevent back-powering the device.
