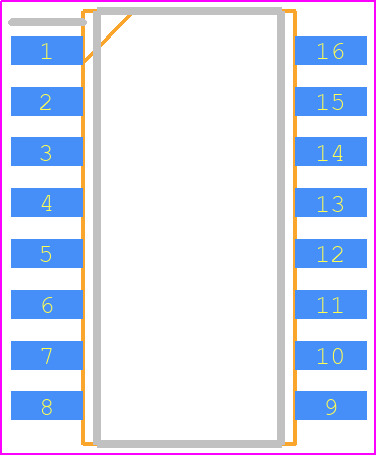

Footprint
-

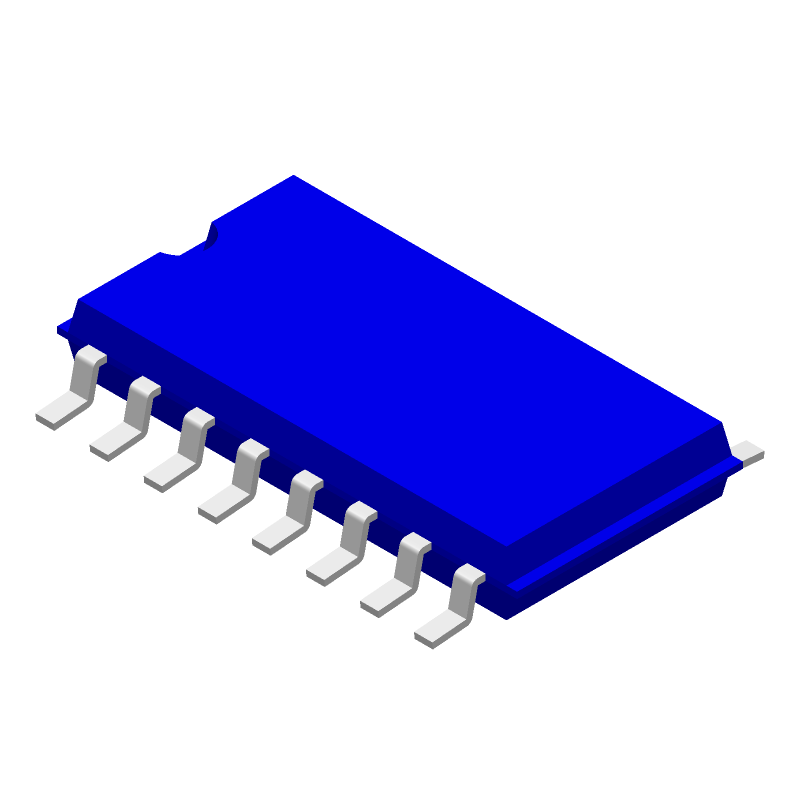

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TC4094BF by Toshiba America Electronic Components
Results Overview of TC4094BF by Toshiba America Electronic Components
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TC4094BF Information
TC4094BF by Toshiba America Electronic Components is a Shift Register.
Shift Registers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Part Details for TC4094BF
TC4094BF CAD Models
TC4094BF Part Data Attributes
|
|
TC4094BF
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
TC4094BF
Toshiba America Electronic Components
IC 4000/14000/40000 SERIES, 8-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, 0.300 INCH, 1.27 MM PITCH, LEAD FREE, PLASTIC, SOP-16, Shift Register
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Part Package Code | SOIC | |
| Package Description | SOP, SOP16,.3 | |
| Pin Count | 16 | |
| Reach Compliance Code | unknown | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Toshiba | |
| Count Direction | RIGHT | |
| Family | 4000/14000/40000 | |
| JESD-30 Code | R-PDSO-G16 | |
| Length | 10.3 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | SERIAL IN PARALLEL OUT | |
| Max Frequency@Nom-Sup | 1250000 Hz | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Propagation Delay (tpd) | 840 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.9 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Trigger Type | POSITIVE EDGE | |
| Width | 5.3 mm | |
| fmax-Min | 16 MHz |
Alternate Parts for TC4094BF
This table gives cross-reference parts and alternative options found for TC4094BF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TC4094BF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC14094BFL1 | onsemi | Check for Price | 4000/14000/40000 SERIES, 8-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, EIAJ, PLASTIC, SOIC-16 | TC4094BF vs MC14094BFL1 |
| MC14094BFR1 | onsemi | Check for Price | 4000/14000/40000 SERIES, 8-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, EIAJ, PLASTIC, SOIC-16 | TC4094BF vs MC14094BFR1 |
| MC14094BFELG | onsemi | Check for Price | 4000/14000/40000 SERIES, 8-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, LEAD FREE, EIAJ, PLASTIC, SOIC-16 | TC4094BF vs MC14094BFELG |
| MC14094BFL2 | onsemi | Check for Price | 4000/14000/40000 SERIES, 8-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, EIAJ, PLASTIC, SOIC-16 | TC4094BF vs MC14094BFL2 |
| MC14094BFEL | onsemi | Check for Price | 4000/14000/40000 SERIES, 8-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, EIAJ, PLASTIC, SOIC-16 | TC4094BF vs MC14094BFEL |
| MC14094BFG | onsemi | Check for Price | IC 4000/14000/40000 SERIES, 8-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, LEAD FREE, EIAJ, PLASTIC, SOIC-16, Shift Register | TC4094BF vs MC14094BFG |
| MC14094BD | Rochester Electronics LLC | Check for Price | Serial In Parallel Out, 4000/14000/40000 Series, 8-Bit, Right Direction, True Output, CMOS, PDSO16, PLASTIC, SOIC-16 | TC4094BF vs MC14094BD |
| MC14094BDR2 | Motorola Mobility LLC | Check for Price | 4000/14000/40000 SERIES, 8-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, SOIC-16 | TC4094BF vs MC14094BDR2 |
| MC14094BDR2G | onsemi | $0.4418 | 8-Bit Storage/Shift Register with Three-State Outputs, SOIC 16 LEAD, 2500-REEL | TC4094BF vs MC14094BDR2G |
| MC14094BDG | onsemi | $0.2903 | 8-Bit Storage/Shift Register with Three-State Outputs, SOIC 16 LEAD, 48-TUBE | TC4094BF vs MC14094BDG |
