Power Circuits / Linear Regulator ICs / TC1301A-ADAVUA
Datasheets
TC1301A-ADAVUA by: Microchip Technology Inc

DUAL OUTPUT, FIXED POSITIVE LDO REGULATOR, PDSO8, PLASTIC, MSOP-8

Part Details for TC1301A-ADAVUA by Microchip Technology Inc

Results Overview of TC1301A-ADAVUA by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Healthcare Transportation and Logistics Renewable Energy Automotive

TC1301A-ADAVUA Information

TC1301A-ADAVUA by Microchip Technology Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for TC1301A-ADAVUA

Part # Distributor Description Stock Price Buy
DISTI # 56J8245
Newark Ic, volt Regulator, fixed,+3V,+3.3V, cmos, tssop,8Pin, plastic Rohs Compliant: Yes |Microchip TC1301A-ADAVUA RoHS: Compliant Min Qty: 1100 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $0.5940
$0.5940 Buy Now
DISTI # TC1301A-ADAVUA-ND
DigiKey IC REG LIN 3.3V/3V/2.63V 8-MSOP Min Qty: 1100 Lead time: 6 Weeks Container: Tube Temporarily Out of Stock
  • 1,100 $0.6000
$0.6000 Buy Now
DISTI # TC1301A-ADAVUA
Avnet Americas LDO Regulator Pos 3.3V3V 0.3A/0.15A 8-Pin MSOP Tube - Rail/Tube (Alt: TC1301A-ADAVUA) RoHS: Compliant Min Qty: 1100 Package Multiple: 100 Lead time: 6 Weeks, 0 Days Container: Tube 0
  • 600 $0.6000
  • 800 $0.5903
  • 1,400 $0.5808
  • 3,000 $0.5712
  • 6,000 $0.5616
$0.5616 / $0.6000 Buy Now
DISTI # 579-TC1301A-ADAVUA
Mouser Electronics LDO Voltage Regulators Dual CMOS LDO 300mA & 150mA RoHS: Compliant 0
  • 1 $0.7300
  • 25 $0.6100
  • 100 $0.6000
$0.6000 / $0.7300 Order Now
DISTI # TC1301A-ADAVUA
Microchip Technology Inc Dual LDO With Microcontroller RESET Function, MSOP, Projected EOL: 2034-12-02 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tube 0

Alternates Available
  • 1 $0.7300
  • 25 $0.6100
  • 100 $0.5600
  • 1,000 $0.5400
  • 5,000 $0.5300
$0.5300 / $0.7300 Buy Now
DISTI # 70567259
RS DualCMOSLDO300mA&150mAwShutdown, VoltageDetect, Bypass&IndependentDelayedReset Min Qty: 600 Package Multiple: 1 Lead time: 11 Weeks, 0 Days Container: Bulk 0
  • 600 $1.2200
  • 6,000 $1.1600
  • 30,000 $1.1000
  • 60,000 $1.0400
$1.0400 / $1.2200 RFQ
Onlinecomponents.com LDO Regulator Pos 3V3.3V 0.3A/0.15A 8-Pin MSOP Tube RoHS: Compliant 0
  • 275 $0.9600
  • 550 $0.7200
  • 825 $0.6720
  • 1,100 $0.6590
$0.6590 / $0.9600 Buy Now
Bristol Electronics   698
RFQ
Quest Components   558
  • 1 $3.1040
  • 194 $1.4356
  • 419 $1.2804
$1.2804 / $3.1040 Buy Now
DISTI # TC1301A-ADAVUA
TME IC: voltage regulator, LDO,fixed, 0.15÷0.3A, MSOP8, SMD, TC1301 Min Qty: 1 0
  • 1 $1.1200
  • 5 $0.8700
  • 25 $0.7800
$0.7800 / $1.1200 RFQ
NAC Dual CMOS LDO 300mA & 150mA w Shutdown, Voltage Detect, Bypass & Independent Delayed Reset - Package: 8 MSOP 3x3mm TUBE RoHS: Compliant Min Qty: 600 Package Multiple: 100 Container: Tube 0
  • 1 $0.7400
  • 100 $0.6700
  • 500 $0.6200
  • 1,000 $0.6000
$0.6000 / $0.7400 Buy Now
DISTI # TC1301A-ADAVUA
Avnet Silica LDO Regulator Pos 33V3V 03A015A 8Pin MSOP Tube (Alt: TC1301A-ADAVUA) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
Master Electronics LDO Regulator Pos 3V3.3V 0.3A/0.15A 8-Pin MSOP Tube RoHS: Compliant 0
  • 275 $0.9600
  • 550 $0.7200
  • 825 $0.6720
  • 1,100 $0.6590
$0.6590 / $0.9600 Buy Now
Vyrian Regulators 1312
RFQ

Part Details for TC1301A-ADAVUA

TC1301A-ADAVUA CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

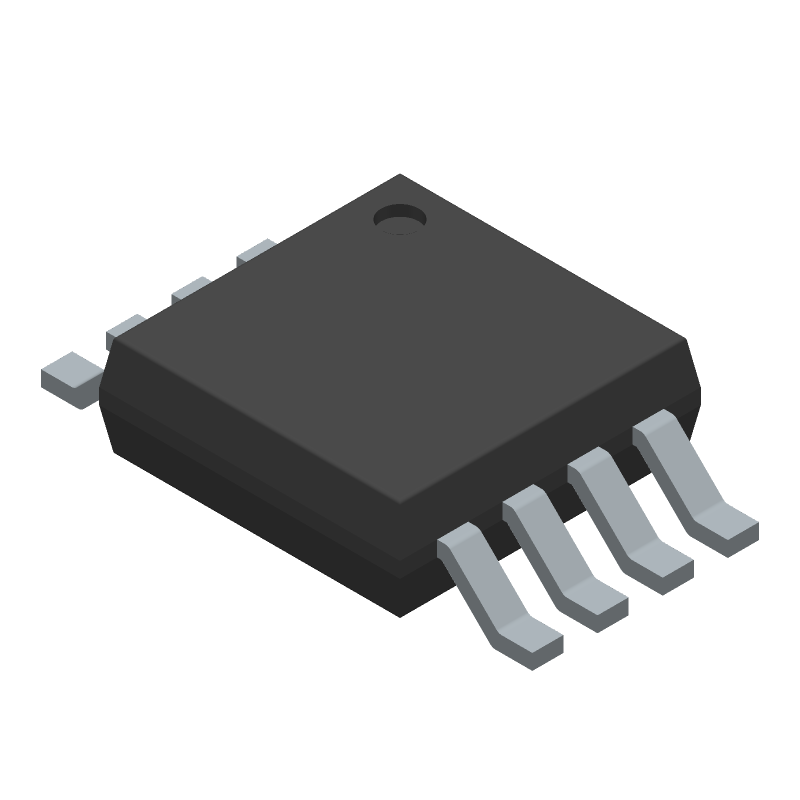

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TC1301A-ADAVUA Part Data Attributes

Parametric Data
TC1301A-ADAVUA Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
TC1301A-ADAVUA Microchip Technology Inc DUAL OUTPUT, FIXED POSITIVE LDO REGULATOR, PDSO8, PLASTIC, MSOP-8
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code MSOP
Package Description PLASTIC, MSOP-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 6 Weeks
Samacsys Manufacturer Microchip
Adjustability FIXED
Dropout Voltage1-Max 0.18 V
Dropout Voltage1-Nom 0.104 V
Dropout Voltage2-Max 0.25 V
Input Voltage Absolute-Max 6.5 V
Input Voltage-Max 6 V
Input Voltage-Min 2.7 V
JESD-30 Code S-PDSO-G8
JESD-609 Code e3
Length 3 mm
Line Regulation-Max 0.012%
Line Regulation-Max (%/V) 0.2
Load Regulation-Max 0.033%
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 2
Number of Terminals 8
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Output Current1-Max 0.3 A
Output Current2-Max 0.15 A
Output Voltage1-Max 3.3825 V
Output Voltage1-Min 3.2175 V
Output Voltage1-Nom 3.3 V
Output Voltage2-Max 3.075 V
Output Voltage2-Min 2.925 V
Output Voltage2-Nom 3 V
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP8,.19
Package Shape SQUARE
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Packing Method TUBE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
Screening Level TS 16949
Seated Height-Max 1.1 mm
Surface Mount YES
Technology CMOS
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Voltage Tolerance-Max 2.5%
Width 3 mm

Alternate Parts for TC1301A-ADAVUA

This table gives cross-reference parts and alternative options found for TC1301A-ADAVUA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TC1301A-ADAVUA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TC1301A-ADAVUATR Microchip Technology Inc $50.6628 DUAL OUTPUT, FIXED POSITIVE LDO REGULATOR, PDSO8, PLASTIC, MSOP-8 TC1301A-ADAVUA vs TC1301A-ADAVUATR
TC1301A-ADAVMFTR Microchip Technology Inc $50.6628 DUAL OUTPUT, FIXED POSITIVE LDO REGULATOR, PDSO8, 3 X 3 MM, 0.90 MM HEIGHT, PLASTIC, DFN-8 TC1301A-ADAVUA vs TC1301A-ADAVMFTR
TC1301B-ADAVUATR Microchip Technology Inc Check for Price DUAL OUTPUT, FIXED POSITIVE LDO REGULATOR, PDSO8, PLASTIC, MSOP-8 TC1301A-ADAVUA vs TC1301B-ADAVUATR
TC1301B-ADAVMFTR Microchip Technology Inc Check for Price DUAL OUTPUT, FIXED POSITIVE LDO REGULATOR, PDSO8, 3 X 3 MM, 0.90 MM HEIGHT, PLASTIC, DFN-8 TC1301A-ADAVUA vs TC1301B-ADAVMFTR
TC1301B-ADAVMF Microchip Technology Inc Check for Price DUAL OUTPUT, FIXED POSITIVE LDO REGULATOR, PDSO8, 3 X 3 MM, 0.90 MM HEIGHT, PLASTIC, DFN-8 TC1301A-ADAVUA vs TC1301B-ADAVMF
