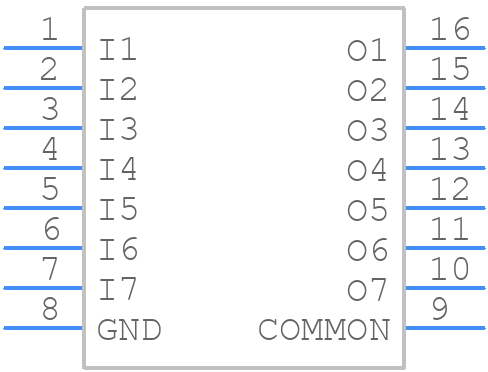

Part Symbol
-
Footprint
-

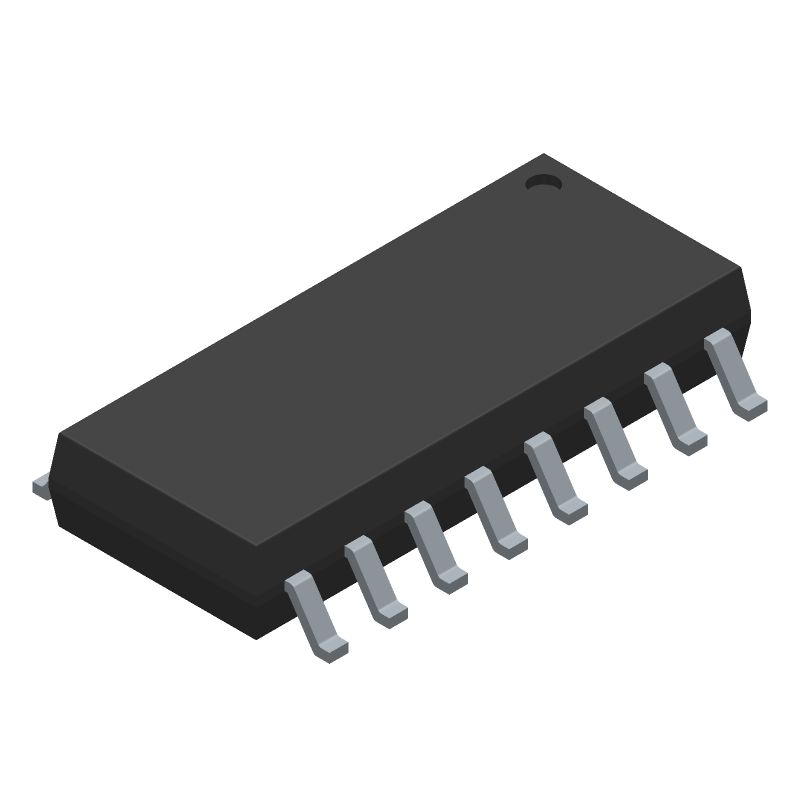

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TBD62004AFG by Toshiba America Electronic Components
Results Overview of TBD62004AFG by Toshiba America Electronic Components
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TBD62004AFG Information
TBD62004AFG by Toshiba America Electronic Components is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Part Details for TBD62004AFG
TBD62004AFG CAD Models
TBD62004AFG Part Data Attributes
|
|
TBD62004AFG
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
TBD62004AFG
Toshiba America Electronic Components
Interface Driver, Transistor Array
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Package Description | SOP, | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Toshiba | |
| Built-in Protections | TRANSIENT | |
| Driver Number of Bits | 1 | |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | |
| JESD-30 Code | R-PDSO-G16 | |
| Length | 10 mm | |
| Number of Functions | 7 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current Flow Direction | SINK | |
| Output Current-Max | 0.4 A | |
| Output Peak Current Limit-Nom | 0.4 A | |
| Output Polarity | INVERTED | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 1.9 mm | |
| Supply Current-Max | 0.1 mA | |
| Supply Voltage-Max | 25 V | |
| Supply Voltage-Min | 7 V | |
| Supply Voltage-Nom | 7 V | |
| Surface Mount | YES | |
| Technology | DMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Turn-off Time | 0.8 µs | |
| Turn-on Time | 0.4 µs | |
| Width | 4.4 mm |
