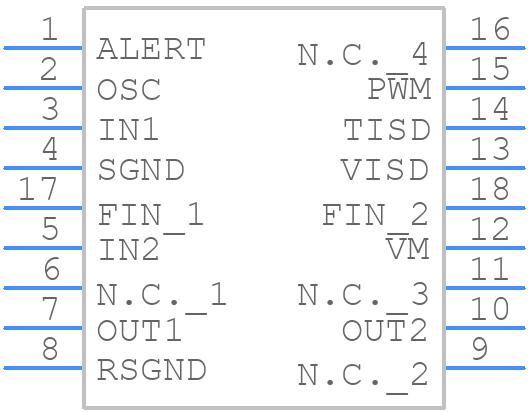

Part Symbol
-

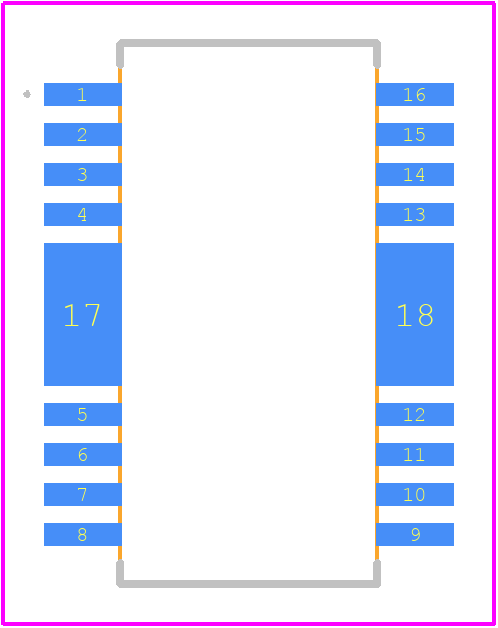

Footprint
-

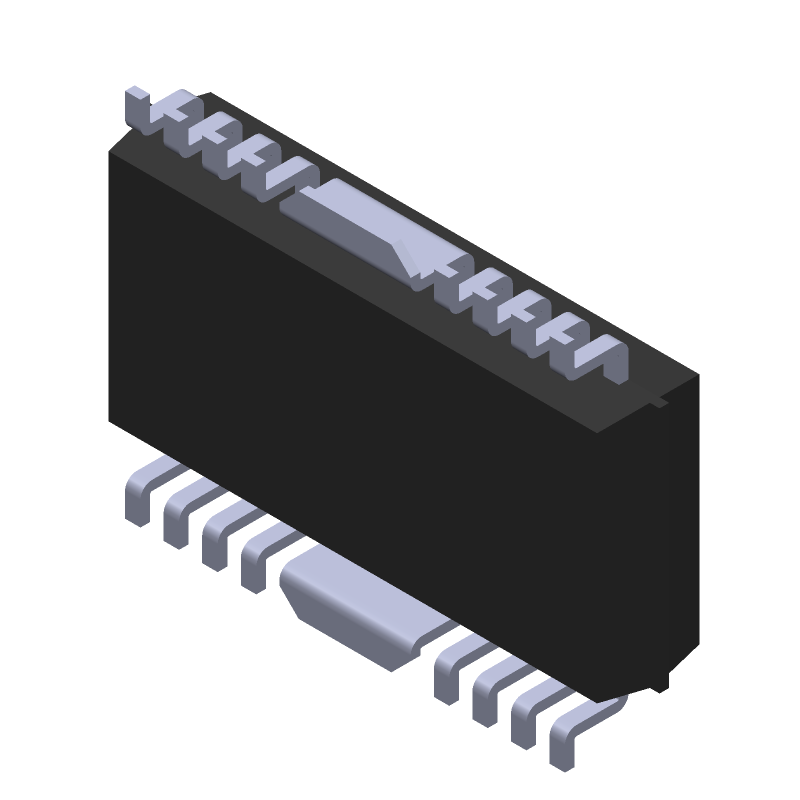

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TB6642FG by Toshiba America Electronic Components
Results Overview of TB6642FG by Toshiba America Electronic Components
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Agriculture Technology
Automotive
Robotics and Drones
TB6642FG Information
TB6642FG by Toshiba America Electronic Components is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Part Details for TB6642FG
TB6642FG CAD Models
TB6642FG Part Data Attributes
|
|
TB6642FG
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
TB6642FG
Toshiba America Electronic Components
IC BRUSHLESS DC MOTOR CONTROLLER, 4.5 A, PDSO16, 0.300 INCH, 1 MM PITCH, PLASTIC, HSOP-16, Motion Control Electronics
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Part Package Code | SOIC | |
| Package Description | HSSOP, SOP16/24,.37,40 | |
| Pin Count | 16 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Toshiba | |
| Analog IC - Other Type | BRUSHLESS DC MOTOR CONTROLLER | |
| JESD-30 Code | R-PDSO-G16 | |
| Length | 13 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 4.5 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HSSOP | |
| Package Equivalence Code | SOP16/24,.37,40 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.85 mm | |
| Supply Current-Max (Isup) | 8 mA | |
| Supply Voltage-Max (Vsup) | 45 V | |
| Supply Voltage-Min (Vsup) | 10 V | |
| Supply Voltage-Nom (Vsup) | 24 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 6.4 mm |
