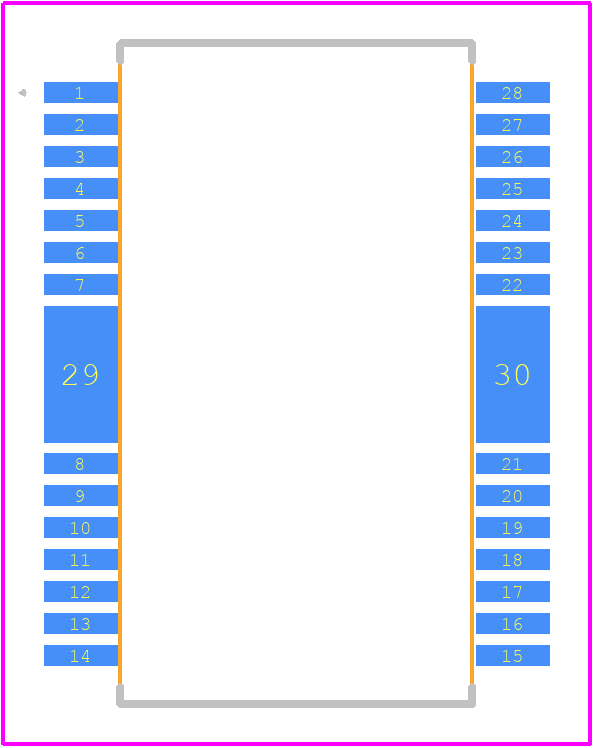

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TB62214FG by Toshiba America Electronic Components
Results Overview of TB62214FG by Toshiba America Electronic Components
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TB62214FG Information
TB62214FG by Toshiba America Electronic Components is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Part Details for TB62214FG
TB62214FG CAD Models
TB62214FG Part Data Attributes
|
|
TB62214FG
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
TB62214FG
Toshiba America Electronic Components
IC STEPPER MOTOR CONTROLLER, 2 A, PDSO28, 0.450 INCH, 0.80 MM PITCH, ROHS COMPLIANT, PLASTIC, HSOP-28, Motion Control Electronics
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Part Package Code | SOIC | |
| Package Description | SSOP, SOP36,.47,32 | |
| Pin Count | 28 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Toshiba | |
| Analog IC - Other Type | STEPPER MOTOR CONTROLLER | |
| JESD-30 Code | R-PDSO-G28 | |
| Length | 16 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -20 °C | |
| Output Current-Max | 2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SOP36,.47,32 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.7 mm | |
| Supply Current-Max (Isup) | 7 mA | |
| Supply Voltage-Max (Vsup) | 38 V | |
| Supply Voltage-Min (Vsup) | 10 V | |
| Supply Voltage-Nom (Vsup) | 24 V | |
| Surface Mount | YES | |
| Technology | BCDMOS | |
| Temperature Grade | OTHER | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 8.8 mm |
