Part Details for TAS5760MTDAPRQ1 by Texas Instruments
Results Overview of TAS5760MTDAPRQ1 by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Price & Stock for TAS5760MTDAPRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-TAS5760MTDAPRQ1-ND
|
DigiKey | IC AMP D MON/STER 55.2W 32HTSSOP Min Qty: 1 Lead time: 18 Weeks Container: Bulk MARKETPLACE PRODUCT |
780 In Stock |
|
$3.3300 | Buy Now |
|
DISTI #
296-TAS5760MTDAPRQ1CT-ND
|
DigiKey | IC AMP D MON/STER 55.2W 32HTSSOP Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$3.0537 / $5.8600 | Buy Now |
|
DISTI #
595-TAS5760MTDAPRQ1
|
Mouser Electronics | Audio Amplifiers Automotive 25-W 2- ch 4.5- to 26.4-V s A 595-TAS5760MTDAPQ1 RoHS: Compliant | 1326 |
|
$3.0500 / $5.8700 | Buy Now |
|
|
Rochester Electronics | TAS5760M-Q1 TAS5760M-Q1 2x25-W Digital Input Closed-Loop Automotive Class-D Audio Amplifier RoHS: Compliant Status: Active Min Qty: 1 | 780 |
|
$2.5600 / $3.2000 | Buy Now |
|
|
LCSC | HTSSOP-32-EP-6.1mm Audio Amplifiers ROHS | 103 |
|
$6.0539 / $6.3603 | Buy Now |
|
|
Vyrian | General Purpose ICs | 2560 |
|
RFQ | |
|
|
Win Source Electronics | IC AMP D MON/STER 55.2W 32HTSSOP / Amplifier IC 1-Channel (Mono) or 2-Channel (Stereo) Class D 32-HTSSOP | 4000 |
|
$6.6650 / $9.9974 | Buy Now |
Part Details for TAS5760MTDAPRQ1

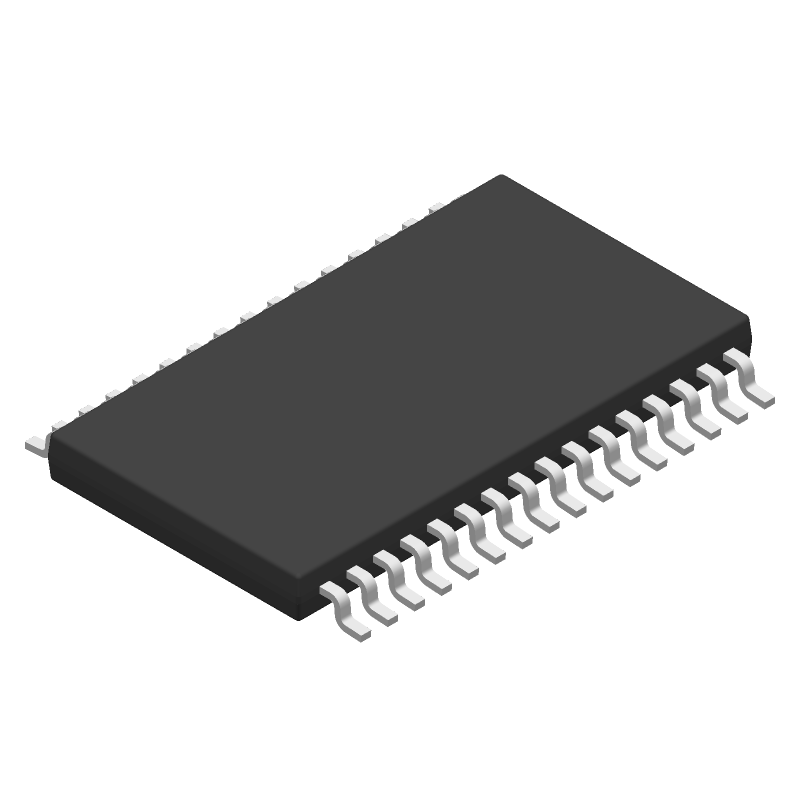

TAS5760MTDAPRQ1 CAD Models
TAS5760MTDAPRQ1 Part Data Attributes
|
|
TAS5760MTDAPRQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TAS5760MTDAPRQ1
Texas Instruments
Automotive, 25-W, 2-ch, 4.5- to 26.4-V supply digital input Class-D audio amplifier 32-HTSSOP -40 to 105
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | TSSOP-32 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Consumer IC Type | CLASS D AUDIO AMPLIFIER | |
| JESD-30 Code | R-PDSO-G32 | |
| JESD-609 Code | e4 | |
| Length | 11 mm | |
| Moisture Sensitivity Level | 3 | |
| Noise Figure-Nom | 100 dB | |
| Number of Channels | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Power-Nom | 25 W | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSSOP | |
| Package Equivalence Code | TSSOP32,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max (Vsup) | 26.4 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 6.1 mm |
TAS5760MTDAPRQ1 Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply PVDD, then AVDD, and finally DVDD. This ensures that the internal voltage regulators are powered up in the correct order.
-
The TAS5760 can be configured for mono or stereo operation by setting the MONO pin high or low, respectively. In mono mode, the left and right channels are summed and output on both channels.
-
The TAS5760's output stage is capable of delivering up to 20W per channel into a 4Ω load, or up to 10W per channel into an 8Ω load.
-
The gain of the TAS5760 can be adjusted by setting the GAIN pin to one of four possible gain settings: 20dB, 26dB, 32dB, or 38dB.
-
The FLT pin is an overcurrent fault detection pin that goes low when an overcurrent condition is detected. It can be used to shut down the device or trigger an interrupt in the event of an overcurrent condition.
