Capacitors / Tantalum Capacitors / TAJS684K020RNJ
Datasheets
TAJS684K020RNJ by: Kyocera AVX Components

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 20V, 10% +Tol, 10% -Tol, 0.68uF, Surface Mount, 1206, CHIP

Part Details for TAJS684K020RNJ by Kyocera AVX Components

Results Overview of TAJS684K020RNJ by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

TAJS684K020RNJ Information

TAJS684K020RNJ by Kyocera AVX Components is a Tantalum Capacitor.
Tantalum Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for TAJS684K020RNJ

Part # Distributor Description Stock Price Buy
DISTI # 09R6230
Newark Tantalum Chips/Tape/Reel Rohs Compliant: Yes |Kyocera Avx TAJS684K020RNJ RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.3640
  • 5,000 $0.3550
  • 10,000 $0.3290
  • 20,000 $0.3060
  • 30,000 $0.2850
  • 50,000 $0.2730
$0.2730 / $0.3640 Buy Now
DISTI # TAJS684K020RNJ-ND
DigiKey CAP TANT 0.68UF 10% 20V 1206 Min Qty: 2500 Lead time: 13 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 2,500 $0.3231
$0.3231 Buy Now
DISTI # TAJS684K020RNJ
Avnet Americas Surface Mount Tantalum Capacitor, 0.68 uF, 20 V, ? 10%, -55 ?C, 125 ?C, 1206 [3216-12 Metric] - Tape and Reel (Alt: TAJS684K020RNJ) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 13 Weeks, 0 Days Container: Reel 0
  • 2,500 $0.2477
  • 5,000 $0.2435
  • 10,000 $0.2394
  • 15,000 $0.2353
  • 20,000 $0.2312
$0.2312 / $0.2477 Buy Now
DISTI # 581-TAJS684K020RNJ
Mouser Electronics Tantalum Capacitors - Solid SMD .68uF 10% Tol. 20v RoHS: Compliant 0
  • 2,500 $0.3230
  • 25,000 $0.3170
$0.3170 / $0.3230 Order Now
DISTI # 73977753
RS Conventional MnO2,0.68 uF,20 V Min Qty: 2500 Package Multiple: 1 Lead time: 33 Weeks, 0 Days Container: Bulk 0
  • 2,500 $0.4130
  • 25,000 $0.3920
  • 125,000 $0.3720
  • 250,000 $0.3510
$0.3510 / $0.4130 RFQ
DISTI # TAJS684K020RNJ
TME Capacitor: tantalum, 0.68uF, 20VDC, SMD, S, 1206, ±10%, -55÷125°C Min Qty: 2500 0
  • 2,500 $0.1660
$0.1660 RFQ
DISTI # TAJS684K020RNJ
Avnet Abacus Surface Mount Tantalum Capacitor 068 uF 20 V 10 55 C 125 C 1206 321612 Metric - Tape and Reel (Alt: TAJS684K020RNJ) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 14 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now

Part Details for TAJS684K020RNJ

TAJS684K020RNJ CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

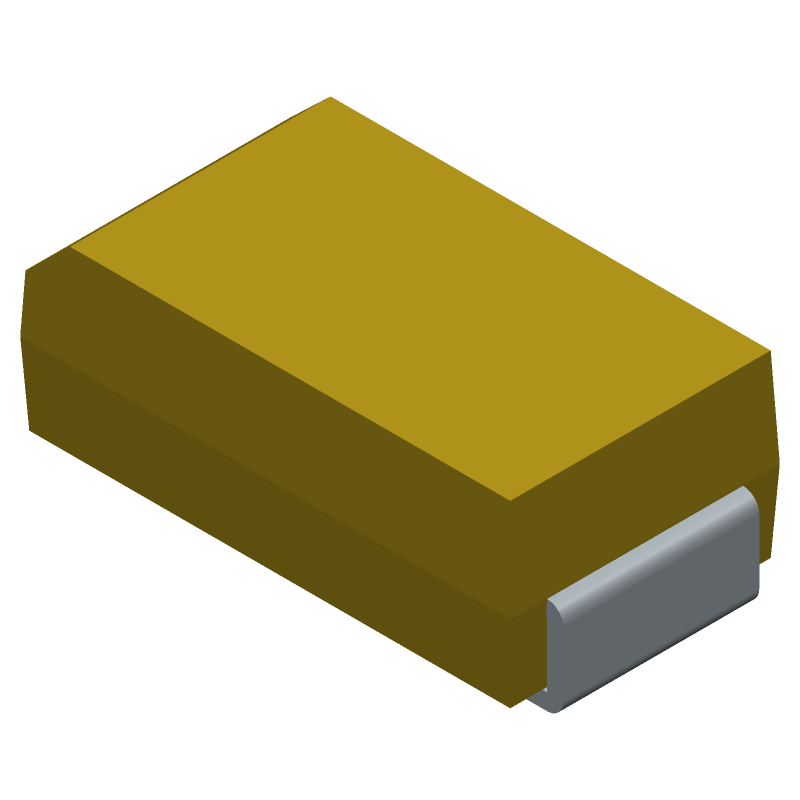

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TAJS684K020RNJ Part Data Attributes

Parametric Data
TAJS684K020RNJ Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
TAJS684K020RNJ Kyocera AVX Components Tantalum Capacitor, Polarized, Tantalum (dry/solid), 20V, 10% +Tol, 10% -Tol, 0.68uF, Surface Mount, 1206, CHIP
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer AVX CORP
Package Description , 1206
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.21.00.50
Factory Lead Time 13 Weeks
Samacsys Manufacturer Kyocera AVX
Additional Feature ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
Capacitance 0.68 µF
Capacitor Type TANTALUM CAPACITOR
Dielectric Material TANTALUM (DRY/SOLID)
ESR 25000 mΩ
Height 1.2 mm
JESD-609 Code e3
Leakage Current 0.0005 mA
Length 3.2 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PLASTIC, 7 INCH
Polarity POLARIZED
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 20 V
Ripple Current 20 mA
Size Code 1206
Surface Mount YES
Tan Delta 0.04
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape J BEND
Width 1.6 mm

Alternate Parts for TAJS684K020RNJ

This table gives cross-reference parts and alternative options found for TAJS684K020RNJ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TAJS684K020RNJ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
TMCUA1D684KTRF Vishay Intertechnologies Check for Price Tantalum Capacitor, Tantalum (dry/solid), TAJS684K020RNJ vs TMCUA1D684KTRF
T451P16841DKB Fenghua (HK) Electronics Ltd Check for Price Tantalum Capacitor, Polarized, Tantalum, 20V, 10% +Tol, 10% -Tol, 0.68uF, 1206 TAJS684K020RNJ vs T451P16841DKB
TAJS684K020SNJV Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum, 20V, 10% +Tol, 10% -Tol, 0.68uF, 1206, TAJS684K020RNJ vs TAJS684K020SNJV
T451P16841DKP Fenghua (HK) Electronics Ltd Check for Price Tantalum Capacitor, Polarized, Tantalum, 20V, 10% +Tol, 10% -Tol, 0.68uF, 1206 TAJS684K020RNJ vs T451P16841DKP
TAJS684K020SNJ Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 20V, 10% +Tol, 10% -Tol, 0.68uF, Surface Mount, 1206, CHIP TAJS684K020RNJ vs TAJS684K020SNJ
TAJS684K020BNJV Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum, 20V, 10% +Tol, 10% -Tol, 0.68uF, 1206, TAJS684K020RNJ vs TAJS684K020BNJV
TAJS684K020ESALAT1 Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum, 20V, 10% +Tol, 10% -Tol, 0.68uF, 1206, TAJS684K020RNJ vs TAJS684K020ESALAT1
TCKID684ST Cal-Chip Electronics Check for Price Tantalum Capacitor, Polarized, Tantalum (dry/solid), 20V, 10% +Tol, 10% -Tol, 0.68uF, Surface Mount, 1206, CHIP TAJS684K020RNJ vs TCKID684ST
301200119B684DK Kyocera AVX Components Check for Price Tantalum Capacitor, Polarized, Tantalum, 20V, 10% +Tol, 10% -Tol, 0.68uF, 1206, TAJS684K020RNJ vs 301200119B684DK
PCT.68/20ALKLF Nemco Electronics Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum, 20V, 10% +Tol, 10% -Tol, 0.68uF, 1206, TAJS684K020RNJ vs PCT.68/20ALKLF
