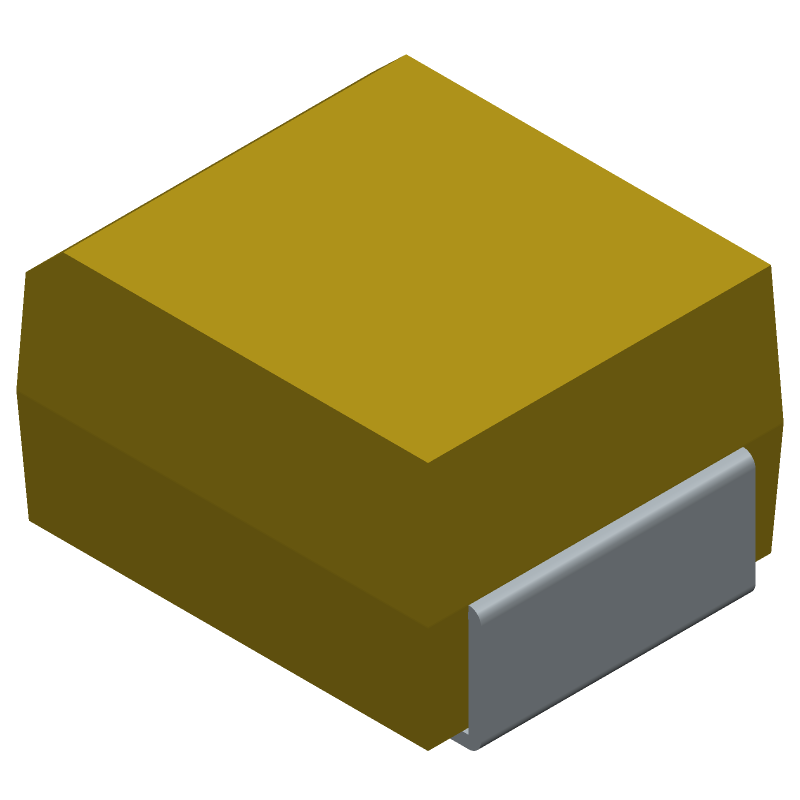

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TAJB226K016RNJ by Kyocera AVX Components
Results Overview of TAJB226K016RNJ by Kyocera AVX Components
- Distributor Offerings: (35 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TAJB226K016RNJ Information
TAJB226K016RNJ by Kyocera AVX Components is a Tantalum Capacitor.
Tantalum Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for TAJB226K016RNJ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60R5892
|
Newark | Tantalum Capacitor, 22Uf, 16V, 2.3 Ohm, 0.1, 1210, Capacitance:22Μf, Voltage(Dc):16V, Capacitor Case/Package:1411 [3528 Metric], Capacitance Tolerance:± 10%, Esr:2.3Ohm, Manufacturer Size Code:B, Failure Rate:-, Product Width:2.8Mmrohs Compliant: Yes |Kyocera Avx TAJB226K016RNJ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 19561 |
|
$0.1010 / $0.1100 | Buy Now |
|
DISTI #
18J9843
|
Newark | Surface Mount Tantalum Capacitor, Taj Series, 22 F, 10%, 16 V, 1210 [3528 Metric], B Rohs Compliant: Yes |Kyocera Avx TAJB226K016RNJ RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 16107 |
|
$0.1300 / $0.4560 | Buy Now |
|
DISTI #
54J3074
|
Newark | Tantalum Capacitor, 22Uf, 16V, 2.3 Ohm, 0.1, 1210, Full Reel, Capacitance:22Μf, Voltage(Dc):16V, Capacitor Case/Package:1411 [3528 Metric], Capacitance Tolerance:± 10%, Esr:2.3Ohm, Manufacturer Size Code:B, Failure Rate:- Rohs Compliant: Yes |Kyocera Avx TAJB226K016RNJ RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0960 / $0.1000 | Buy Now |
|
DISTI #
478-1682-1-ND
|
DigiKey | CAP TANT 22UF 10% 16V 1411 Min Qty: 1 Lead time: 13 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
9797 In Stock |
|
$0.0881 / $0.4100 | Buy Now |
|
DISTI #
TAJB226K016RNJ
|
Avnet Americas | Surface Mount Tantalum Capacitor, 22 uF, 16 V, ? 10%, -55 ?C, 125 ?C, 1210 [3528 Metric] - Tape and Reel (Alt: TAJB226K016RNJ) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 13 Weeks, 0 Days Container: Reel | 2800050000 Factory Stock |
|
$0.0755 | Buy Now |
|
DISTI #
60R5892
|
Avnet Americas | Surface Mount Tantalum Capacitor, 22 uF, 16 V, ? 10%, -55 ?C, 125 ?C, 1210 [3528 Metric] - Product that comes on tape, but is not reeled (Alt: 60R5892) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 3 Days Container: Ammo Pack | 3454 Partner Stock |
|
$0.1420 / $0.4680 | Buy Now |
|
DISTI #
TAJB226K016RNJ
|
Avnet Americas | Surface Mount Tantalum Capacitor, 22 uF, 16 V, ? 10%, -55 ?C, 125 ?C, 1210 [3528 Metric] - Tape and Reel (Alt: TAJB226K016RNJ) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 111 Weeks, 0 Days Container: Reel | 50000 Factory Stock |
|
$0.0685 / $0.0731 | Buy Now |
|
DISTI #
TAJB226K016RNJ
|
Avnet Americas | - Tape and Reel (Alt: TAJB226K016RNJ) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 111 Weeks, 0 Days Container: Reel | 50000 Factory Stock |
|
$0.0685 / $0.0731 | Buy Now |
|
DISTI #
18J9843
|
Avnet Americas | Surface Mount Tantalum Capacitor, 22 uF, 16 V, ? 10%, -55 ?C, 125 ?C, 1210 [3528 Metric] - Product that comes on tape, but is not reeled (Alt: 18J9843) RoHS: Compliant Min Qty: 5 Package Multiple: 5 Lead time: 30 Weeks, 4 Days Container: Ammo Pack | 0 |
|
$0.1420 / $0.4680 | Buy Now |
|
DISTI #
581-TAJB226K016
|
Mouser Electronics | Tantalum Capacitors - Solid SMD 16V 22uF 10% 1210 ES R= 2.3 Ohm RoHS: Compliant | 0 |
|
$0.0830 / $0.4500 | Order Now |
Part Details for TAJB226K016RNJ
TAJB226K016RNJ CAD Models
TAJB226K016RNJ Part Data Attributes
|
|
TAJB226K016RNJ
Kyocera AVX Components
Buy Now
Datasheet
|
Compare Parts:
TAJB226K016RNJ
Kyocera AVX Components
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 1411, CHIP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | KYOCERA AVX COMPONENTS CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.21.00.50 | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | Kyocera AVX | |
| Additional Feature | ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ | |
| Capacitance | 22 µF | |
| Capacitor Type | TANTALUM CAPACITOR | |
| Dielectric Material | TANTALUM (DRY/SOLID) | |
| ESR | 2300 mΩ | |
| Height | 1.9 mm | |
| JESD-609 Code | e3 | |
| Leakage Current | 0.0035 mA | |
| Length | 3.5 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, PLASTIC, 7 INCH | |
| Polarity | POLARIZED | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 16 V | |
| Ripple Current | 77 mA | |
| Size Code | 1210 | |
| Surface Mount | YES | |
| Tan Delta | 0.06 | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | J BEND | |
| Width | 2.8 mm |
Alternate Parts for TAJB226K016RNJ
This table gives cross-reference parts and alternative options found for TAJB226K016RNJ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TAJB226K016RNJ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TBJB226K016CBLZ0945 | Kyocera AVX Components | Check for Price | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 1411, CHIP | TAJB226K016RNJ vs TBJB226K016CBLZ0945 |
| TBJB226K016CSLB0023 | Kyocera AVX Components | Check for Price | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 1411, CHIP | TAJB226K016RNJ vs TBJB226K016CSLB0023 |
| TBJB226K016JRLZ0023 | Kyocera AVX Components | Check for Price | Tantalum Capacitor, Polarized, Tantalum, 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 1210, CHIP | TAJB226K016RNJ vs TBJB226K016JRLZ0023 |
| TBJB226K016JRSZ0745 | Kyocera AVX Components | Check for Price | Tantalum Capacitor, Polarized, Tantalum, 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 1210, CHIP | TAJB226K016RNJ vs TBJB226K016JRSZ0745 |
| TBJB226K016RBSB0723 | Kyocera AVX Components | Check for Price | Tantalum Capacitor, Polarized, Tantalum, 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 1210, CHIP | TAJB226K016RNJ vs TBJB226K016RBSB0723 |
| TBJB226K016RRSB0H00 | Kyocera AVX Components | Check for Price | Tantalum Capacitor, Polarized, Tantalum, 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 1210, CHIP | TAJB226K016RNJ vs TBJB226K016RRSB0H00 |
| TBJB226K016RSSB0700 | Kyocera AVX Components | Check for Price | Tantalum Capacitor, Polarized, Tantalum, 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 1210, CHIP | TAJB226K016RNJ vs TBJB226K016RSSB0700 |
| TBJB226K016JWLB0045 | Kyocera AVX Components | Check for Price | Tantalum Capacitor, Polarized, Tantalum, 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 1210, CHIP | TAJB226K016RNJ vs TBJB226K016JWLB0045 |
| TBJB226K016LWSC0H23 | Kyocera AVX Components | Check for Price | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 16V, 10% +Tol, 10% -Tol, 22uF, 1411, | TAJB226K016RNJ vs TBJB226K016LWSC0H23 |
| TBJB226K016RWLC0745 | Kyocera AVX Components | Check for Price | Tantalum Capacitor, Polarized, Tantalum, 16V, 10% +Tol, 10% -Tol, 22uF, Surface Mount, 1210, CHIP | TAJB226K016RNJ vs TBJB226K016RWLC0745 |
TAJB226K016RNJ Frequently Asked Questions (FAQ)
-
The recommended soldering temperature is 260°C (500°F) for 10 seconds or less.
-
Yes, the TAJB226K016RNJ capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
-
The ESR of the TAJB226K016RNJ is 0.015 ohms maximum at 100 kHz.
-
Yes, the TAJB226K016RNJ is designed to withstand high-vibration environments, making it suitable for use in automotive, industrial, and other applications where vibration is a concern.
-
The MSL of the TAJB226K016RNJ is 3, which means it can withstand exposure to moisture for up to 168 hours without being damaged.
