Relays / Power/Signal Relays / T92S11D12-110
Datasheets

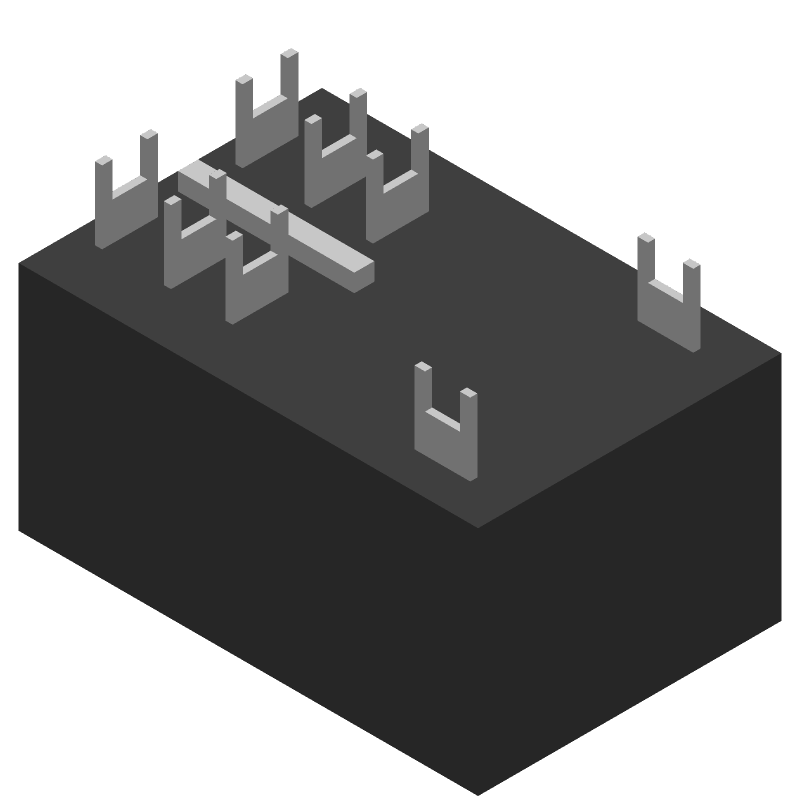

T92S11D12-110 by:

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.015A (COIL), 110VDC (COIL), 1700mW (COIL), 30A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

Part Details for T92S11D12-110 by TE Connectivity

Results Overview of T92S11D12-110 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

T92S11D12-110 Information

T92S11D12-110 by TE Connectivity is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for T92S11D12-110

Part # Distributor Description Stock Price Buy
DISTI # 04F1206
Newark Power Relay, Dpdt, 110Vdc, 30A, Pc Board, Product Range:T92 Series, Relay Type:General Purpose, Coil Type:Dc Monostable, Contact Configuration:Dpdt, Coil Voltage:110Vdc, Contact Current:40A, Contact Voltage Vac:277V Rohs Compliant: Yes |Potter&brumfield Te Connectivity T92S11D12-110 RoHS: Compliant Min Qty: 240 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $30.5600
  • 250 $29.5900
$29.5900 / $30.5600 Buy Now
DISTI # 48M8395
Newark T92S11D12-110 Rohs Compliant: Yes |Potter&brumfield Te Connectivity T92S11D12-110 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 5 $32.1600
  • 10 $31.1500
  • 25 $30.1300
  • 50 $29.1100
  • 100 $27.6300
  • 250 $26.1800
$26.1800 / $32.1600 Buy Now
DISTI # PB1010-ND
DigiKey BRIDGE 1PH KBPC8-PB10 1000V 150C Min Qty: 1 Lead time: 22 Weeks Container: Bulk 91
In Stock
  • 1 $38.7900
  • 10 $34.5490
  • 30 $32.6880
  • 60 $31.5647
  • 120 $30.4793
  • 270 $29.2560
$29.2560 / $38.7900 Buy Now
DISTI # 8-1393211-8
Avnet Americas Electromechanical Relay DPDT 30(NO)/3(NC)A 110VDC 7.255KOhm Through Hole - Bulk (Alt: 8-1393211-8) RoHS: Compliant Min Qty: 240 Package Multiple: 120 Lead time: 19 Weeks, 3 Days Container: Bulk 0
  • 240 $24.1750
  • 480 $23.7882
  • 720 $23.4014
  • 1,200 $17.2669
  • 2,400 $16.9767
$16.9767 / $24.1750 Buy Now
DISTI # 655-T92S11D12-110
Mouser Electronics General Purpose Relays PCB DPDT 30Amp RoHS: Compliant 100
  • 1 $31.5800
  • 10 $29.7900
  • 30 $28.1300
  • 60 $27.3100
  • 120 $26.9500
$26.9500 / $31.5800 Buy Now
TE Connectivity T92S11D12-110 Relay & Contactor Type: General Purpose Power Relay Current Type: DC Coil Magnetic System: Monostable Contact Arrangement: 2 Form C DPDT-CO Contact Current Rating: 30 A General Purpose Power Relay DC Monostable 2 Form C DPDT-CO | PCB Power Relay: 40 Amp & Monostable | Part Number: T92S11D12-110 | Internal Number: 8-1393211-8 | TE Connectivity RoHS: Compliant Min Qty: 1 91
  • 1 $74.1500
  • 10 $71.1800
  • 25 $68.2100
  • 50 $65.2500
  • 100 $62.2800
$62.2800 / $74.1500 Buy Now
Onlinecomponents.com High Power PCB Relay - 2 form C (2 CO) - 110VDC Coil - 30A Contact Rating - 600VAC Switching - Sealed Plastic Case - PC Pin Termination -Through Hole. RoHS: Compliant 558 In Stock
  • 1 $36.2700
  • 5 $30.4100
  • 30 $27.4400
  • 60 $26.6400
  • 120 $26.2900
  • 270 $26.1600
  • 510 $26.0300
$26.0300 / $36.2700 Buy Now
DISTI # 51663466
Verical Power Relay 110VDC 30A DPDT(52.32mm 34.54mm 30.73mm) THT Min Qty: 2 Package Multiple: 1 Date Code: 1745 Americas - 464
  • 2 $47.1510
  • 5 $39.5330
  • 30 $35.6720
  • 60 $34.6320
  • 120 $34.1770
$34.1770 / $47.1510 Buy Now
DISTI # 65680531
Verical Power Relay 110VDC 30A DPDT(52.32mm 34.54mm 30.73mm) THT Min Qty: 3 Package Multiple: 1 Americas - 80
  • 1 $29.7200
  • 12 $29.2200
  • 23 $28.7000
  • 45 $28.1800
$28.1800 / $29.7200 Buy Now
Bristol Electronics   Min Qty: 1 1565
  • 1 $23.2830
  • 21 $22.3866
  • 35 $21.4902
  • 71 $20.5961
  • 116 $19.7021
  • 154 $19.0921
$19.0921 / $23.2830 Buy Now
Bristol Electronics   30
RFQ
Quest Components   1252
  • 1 $25.2233
  • 376 $20.3726
  • 786 $19.4025
$19.4025 / $25.2233 Buy Now
Quest Components   24
  • 1 $20.8200
  • 13 $19.7790
$19.7790 / $20.8200 Buy Now
DISTI # 000000000002453544
Sager General Purpose Relays PCB DPDT 30Amp Min Qty: 120 0
  • 120 $32.2300
$32.2300 Buy Now
Master Electronics High Power PCB Relay - 2 form C (2 CO) - 110VDC Coil - 30A Contact Rating - 600VAC Switching - Sealed Plastic Case - PC Pin Termination -Through Hole. RoHS: Compliant 558 In Stock
  • 1 $36.2700
  • 5 $30.4100
  • 30 $27.4400
  • 60 $26.6400
  • 120 $26.2900
  • 270 $26.1600
  • 510 $26.0300
$26.0300 / $36.2700 Buy Now

Part Details for T92S11D12-110

T92S11D12-110 Part Data Attributes

Parametric Data
T92S11D12-110 TE Connectivity
Buy Now Datasheet
Compare Parts:
T92S11D12-110 TE Connectivity POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.015A (COIL), 110VDC (COIL), 1700mW (COIL), 30A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Package Description ROHS COMPLIANT
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8536.41.00.50
Factory Lead Time 19 Weeks, 3 Days
Samacsys Manufacturer TE Connectivity
Body Breadth 34.54 mm
Body Height 30.73 mm
Body Length or Diameter 52.32 mm
Coil Current(AC)-Max 0.015 A
Coil Current(DC)-Max 0.015 A
Coil Operate Voltage(DC) 82.5 V
Coil Power 1700 mW
Coil Release Voltage(DC) 11 V
Coil Resistance 7255 Ω
Coil Voltage(DC)-Max 110 V
Coil/Input Supply Type DC
Contact (AC) Max Rating R Load 30A@277VAC
Contact Current(AC)-Max 30 A
Contact Current(DC)-Max 30 A
Contact (DC) Max Rating R Load 30A@28VDC
Contact Voltage(AC)-Max 600 V
Contact Voltage(DC)-Max 28 V
Contact/Output Supply Type AC/DC
Dielectric Strength Between Coil and Contacts 4000 Vrms
Dielectric Strength Between Open Contacts 1500 Vrms
Electrical Life 100000 Cycle(s)
End Contact Material SILVER CADMIUM OXIDE
Insulation Resistance 1000000000 Ω
Mounting Feature PANEL MOUNT
Operate Time 25 ms
Operating Temperature-Max 85 °C
Operating Temperature-Min -55 °C
Packing Method BOX; TRAY
Physical Dimension 52.3mm x 34.5mm x 30.7mm
Reference Standard CSA; UL; VDE
Relay Action MOMENTARY
Relay Form 2 FORM C
Relay Function DPDT
Relay Type POWER/SIGNAL RELAY
Release Time 25 ms
Sealing SEALED TYPE
Surface Mount NO
Termination Type SOLDER/QUICK CONNECT
Weight 86 g

Alternate Parts for T92S11D12-110

This table gives cross-reference parts and alternative options found for T92S11D12-110. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of T92S11D12-110, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
8-1393211-8 TE Connectivity $34.2214 Power/Signal Relay, 2 Form C, DPDT, Momentary, 0.015A (Coil), 110VDC (Coil), 1700mW (Coil), 30A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Panel Mount T92S11D12-110 vs 8-1393211-8

T92S11D12-110 Related Parts

T92S11D12-110 Frequently Asked Questions (FAQ)

  • The recommended torque for the screw terminals of T92S11D12-110 is 0.5 Nm to 1.5 Nm, as specified in the TE Connectivity application notes.

  • Yes, the T92S11D12-110 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration, as per IEC 61373 Cat. 2.

  • Yes, the T92S11D12-110 has a IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.

  • The T92S11D12-110 has an operating temperature range of -40°C to 125°C, making it suitable for a wide range of applications.

  • No, the T92S11D12-110 is designed for wire sizes up to 1.5 mm². Using a larger wire size may compromise the connector's performance and reliability.
