Relays / Power/Signal Relays / T92S11A12-120
Datasheets

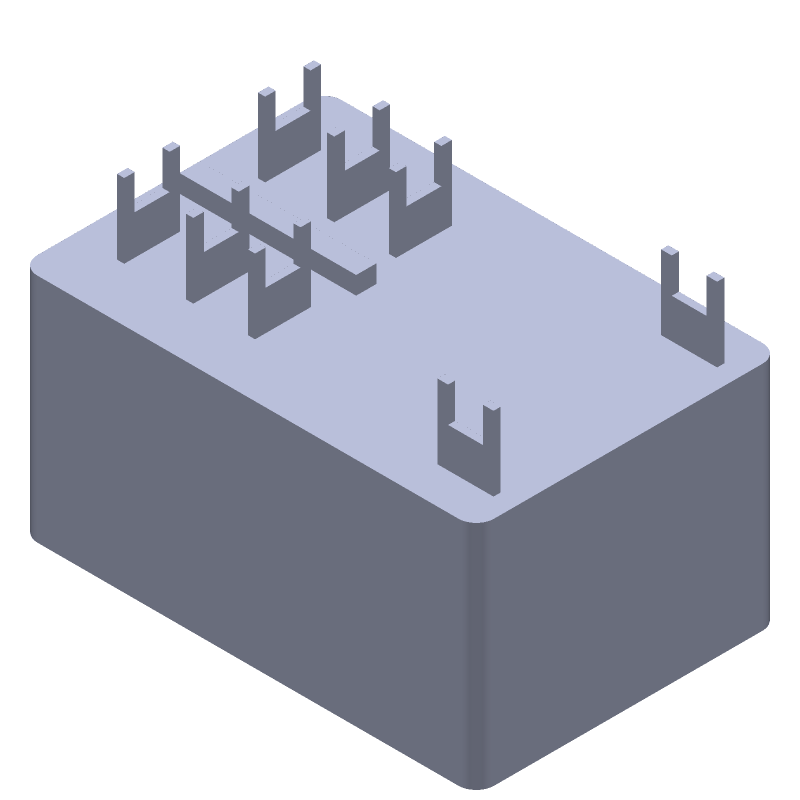

T92S11A12-120 by:

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 4000mW (COIL), 30A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

Part Details for T92S11A12-120 by TE Connectivity

Results Overview of T92S11A12-120 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

T92S11A12-120 Information

T92S11A12-120 by TE Connectivity is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for T92S11A12-120

Part # Distributor Description Stock Price Buy
DISTI # 08H5269
Newark Relay, Dpdt, 277Vac, 28Vdc, 40A, Contact Configuration:Dpdt, Coil Voltage:120Vac, Contact Current:30A, Product Range:T92 Series, Relay Mounting:Through Hole, Coil Type:Non Latching, Contact Voltage Vac:277Vac, Relay Terminals:Solder Rohs Compliant: Yes |Potter&brumfield Te Connectivity T92S11A12-120 RoHS: Compliant Min Qty: 240 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 100 $20.8100
  • 250 $20.1500
$20.1500 / $20.8100 Buy Now
DISTI # PB1412-ND
DigiKey RELAY GEN PURPOSE DPDT 30A 120V Min Qty: 1 Lead time: 22 Weeks Container: Bulk 1
In Stock
  • 1 $27.0500
  • 10 $24.0950
  • 30 $22.7977
  • 60 $22.0145
  • 120 $21.2578
  • 270 $20.4049
$20.4049 / $27.0500 Buy Now
DISTI # 8-1393211-0
Avnet Americas - Bulk (Alt: 8-1393211-0) RoHS: Compliant Min Qty: 240 Package Multiple: 120 Lead time: 19 Weeks, 3 Days Container: Bulk 0
  • 240 $15.6786
  • 480 $15.5545
  • 720 $15.4360
  • 1,200 $11.4910
  • 2,400 $11.4022
$11.4022 / $15.6786 Buy Now
DISTI # 655-T92S11A12-120
Mouser Electronics General Purpose Relays DPDT 30A 110/120VAC PWR PCB/PNL MNT RLY RoHS: Compliant 0
  • 1 $27.4700
  • 10 $24.0000
  • 30 $22.5000
  • 60 $21.6000
  • 120 $20.7300
  • 270 $18.8200
$18.8200 / $27.4700 Order Now
DISTI # 71995636
RS Relay, Potter & Brumfield, T92S11A12-120 Min Qty: 120 Package Multiple: 1 Container: Bulk 0
  • 120 $47.2200
$47.2200 RFQ
TE Connectivity T92S11A12-120 Relay & Contactor Type: General Purpose Power Relay Current Type: AC Coil Magnetic System: Monostable Contact Arrangement: 2 Form C DPDT-CO Contact Current Rating: 30 A General Purpose Power Relay AC Monostable 2 Form C DPDT-CO | PCB Power Relay: 40 Amp & Monostable | Part Number: T92S11A12-120 | Internal Number: 8-1393211-0 | TE Connectivity RoHS: Compliant Min Qty: 1 1
  • 1 $50.4900
  • 10 $48.4700
  • 25 $46.4500
  • 50 $44.4300
  • 100 $42.4100
$42.4100 / $50.4900 Buy Now
Onlinecomponents.com High Power PCB Relay - 2 form C (2 CO) - 120VAC Coil - 30A Contact Rating - 600VAC Switching - Sealed Plastic Case - PC Pin - Through Hole. RoHS: Compliant 0
  • 60 $21.4800
  • 120 $20.7400
  • 180 $20.6400
  • 240 $20.3200
$20.3200 / $21.4800 Buy Now
DISTI # 8-1393211-0
TTI General Purpose Relays T92S11A12-120 Min Qty: 240 Package Multiple: 30 Container: Each Americas - 0
  • 240 $16.3000
  • 480 $15.9700
  • 1,080 $13.1900
  • 2,520 $12.9300
$12.9300 / $16.3000 Buy Now
DISTI # 000000000002453542
Sager General Purpose Relays DPDT 30A 110/120VAC PWR PCB/PNL MNT RLY Min Qty: 120 0
  • 120 $21.9500
$21.9500 Buy Now
Master Electronics High Power PCB Relay - 2 form C (2 CO) - 120VAC Coil - 30A Contact Rating - 600VAC Switching - Sealed Plastic Case - PC Pin - Through Hole. RoHS: Compliant 0
  • 60 $21.4800
  • 120 $20.7400
  • 180 $20.6400
  • 240 $20.3200
$20.3200 / $21.4800 Buy Now

Part Details for T92S11A12-120

T92S11A12-120 Part Data Attributes

Parametric Data
T92S11A12-120 TE Connectivity
Buy Now Datasheet
Compare Parts:
T92S11A12-120 TE Connectivity POWER/SIGNAL RELAY, DPDT, MOMENTARY, 4000mW (COIL), 30A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TE CONNECTIVITY LTD
Package Description ROHS COMPLIANT
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8536.41.00.50
Factory Lead Time 19 Weeks, 3 Days
Samacsys Manufacturer TE Connectivity
Additional Feature COIL OPERATE VOLTAGE(AC): 96 V, COIL RELEASE VOLTAGE(AC): 12 V
Body Breadth 34.54 mm
Body Height 30.73 mm
Body Length or Diameter 52.32 mm
Coil Current(AC)-Max 0.033 A
Coil Current(DC)-Max 0.033 A
Coil Power 4000 mW
Coil Resistance 950 Ω
Coil Voltage(AC)-Max 120 V
Coil/Input Supply Type AC
Contact (AC) Max Rating R Load 30A@277VAC
Contact Current(AC)-Max 30 A
Contact Current(DC)-Max 30 A
Contact (DC) Max Rating R Load 30A@28VDC
Contact Voltage(AC)-Max 600 V
Contact Voltage(DC)-Max 28 V
Contact/Output Supply Type AC/DC
Dielectric Strength Between Coil and Contacts 4000 Vrms
Dielectric Strength Between Open Contacts 1500 Vrms
Electrical Life 100000 Cycle(s)
End Contact Material SILVER CADMIUM OXIDE
Insulation Resistance 1000000000 Ω
Mounting Feature PANEL MOUNT
Operate Time 25 ms
Operating Temperature-Max 65 °C
Operating Temperature-Min -55 °C
Packing Method BOX; TRAY
Physical Dimension 52.3mm x 34.5mm x 30.7mm
Reference Standard CSA; UL; VDE
Relay Action MOMENTARY
Relay Form 2 FORM C
Relay Function DPDT
Relay Type POWER/SIGNAL RELAY
Release Time 25 ms
Sealing SEALED TYPE
Surface Mount NO
Termination Type SOLDER/QUICK CONNECT
Weight 86 g
