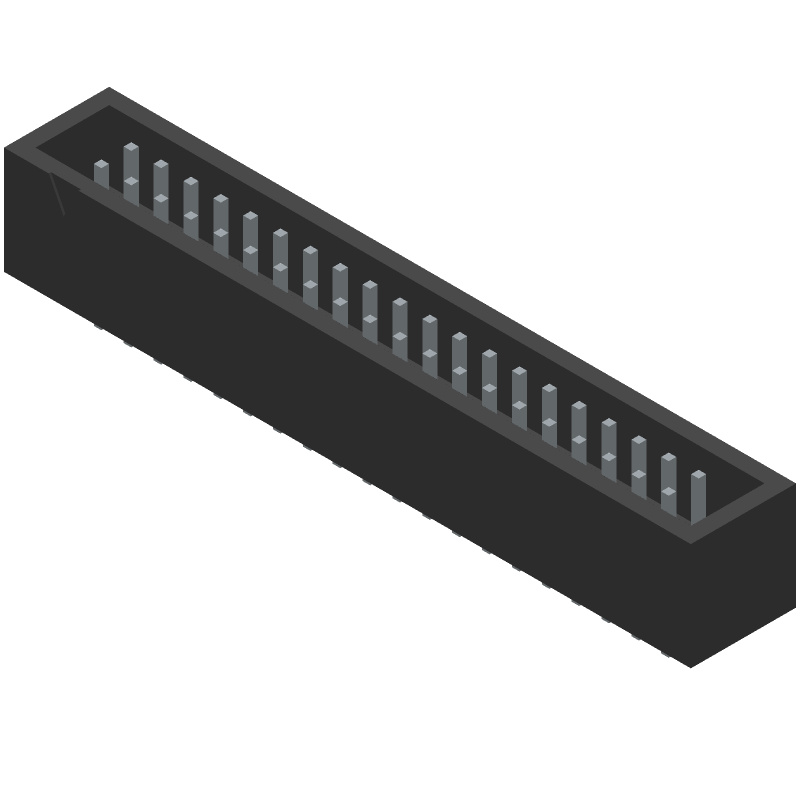

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for T821140A1S100CEU by Amphenol Corporation
Results Overview of T821140A1S100CEU by Amphenol Corporation
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
T821140A1S100CEU Information
T821140A1S100CEU by Amphenol Corporation is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for T821140A1S100CEU
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
87331372
|
Verical | Conn Shrouded Header (4 Sides) HDR 40 POS 2.54mm Solder ST Top Entry Thru-Hole RoHS: Compliant Min Qty: 84 Package Multiple: 1 | Americas - 675 |
|
$0.4018 / $0.8358 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
T821140A1S100CEU
|
Avnet Abacus | Pin Header Vertical WiretoBoard 254 mm 2 Rows 40 Contacts Through Hole Straight T821 (Alt: T821140A1S100CEU) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks, 0 Days | Abacus - 1296 |
|
Buy Now | |
|
|
New Advantage Corporation | Box Header, Straight Termination, Au Flash RoHS: Compliant Min Qty: 1 Package Multiple: 108 | 1080 |
|
$0.5570 / $0.6019 | Buy Now |
Part Details for T821140A1S100CEU
T821140A1S100CEU CAD Models
T821140A1S100CEU Part Data Attributes
|
|
T821140A1S100CEU
Amphenol Corporation
Buy Now
Datasheet
|
Compare Parts:
T821140A1S100CEU
Amphenol Corporation
Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL CORP | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Samacsys Manufacturer | Amphenol | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | GOLD FLASH OVER NICKEL (50) | |
| Contact Finish Termination | GOLD FLASH OVER NICKEL | |
| Contact Gender | MALE | |
| Contact Material | BRASS | |
| DIN Conformance | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| JESD-609 Code | e4 | |
| MIL Conformance | NO | |
| Mixed Contacts | NO | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number of Rows Loaded | 2 | |
| Option | GENERAL PURPOSE | |
| Terminal Pitch | 2.54 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 40 | |
| UL Flammability Code | 94V-0 |
