Relays / Power/Signal Relays / T77S1D10-24
Datasheets
T77S1D10-24 by:

POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.019A (COIL), 24VDC (COIL), 450mW (COIL), 10A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

Part Details for T77S1D10-24 by TE Connectivity

Results Overview of T77S1D10-24 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Telecommunications

T77S1D10-24 Information

T77S1D10-24 by TE Connectivity is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for T77S1D10-24

Part # Distributor Description Stock Price Buy
DISTI # 28AC5263
Newark Em Rly Spst-No 10A 24Vdc 1.28Kohm Th Rohs Compliant: No |Potter&brumfield Te Connectivity T77S1D10-24 RoHS: Not Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Bulk 1500
  • 100 $2.3200
  • 500 $2.0800
$2.0800 / $2.3200 Buy Now
DISTI # 17M3055
Newark Relay, Spst-No, 250Vac, 30Vdc, 10A, Contact Configuration:Spst-No, Coil Voltage:24Vdc, Contact Current:10A, Product Range:T77 Series, Relay Mounting:Through Hole, Coil Type:Non Latching, Contact Voltage Vac:250Vac, Resistance:1280Ohmrohs Compliant: Yes |Potter&brumfield Te Connectivity T77S1D10-24 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 220
  • 1 $2.3000
  • 10 $2.3000
  • 25 $2.3000
  • 50 $2.3000
  • 100 $2.1200
  • 500 $2.1200
$2.1200 / $2.3000 Buy Now
DISTI # PB369-ND
DigiKey RELAY GEN PURPOSE SPST 10A 24V Min Qty: 1 Lead time: 22 Weeks Container: Tray Temporarily Out of Stock
  • 1 $3.2500
  • 10 $2.8970
  • 25 $2.7668
  • 50 $2.6722
  • 100 $2.5807
  • 300 $2.4418
  • 500 $2.3797
  • 1,000 $2.2980
$2.2980 / $3.2500 Buy Now
DISTI # 1-1393194-0
Avnet Americas Power Relay, SPST-NO, 24 VDC, 10 A, T77, Through Hole, Non Latching - Trays (Alt: 1-1393194-0) RoHS: Compliant Min Qty: 100 Package Multiple: 1 Lead time: 14 Weeks, 6 Days Container: Tray 1500
  • 100 $1.7880
  • 110 $1.7416
  • 210 $1.6928
  • 500 $1.6522
  • 1,000 $1.6197
$1.6197 / $1.7880 Buy Now
DISTI # 17M3055
Avnet Americas Power Relay, SPST-NO, 24 VDC, 10 A, T77, Through Hole, Non Latching - Bulk (Alt: 17M3055) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 25 Weeks, 3 Days Container: Bulk 220 Partner Stock
  • 1 $3.4300
  • 10 $2.9000
  • 25 $2.8900
  • 50 $2.8700
  • 100 $2.5600
$2.5600 / $3.4300 Buy Now
DISTI # 655-T77S1D10-24
Mouser Electronics General Purpose Relays SPST-NO 10A 24VDC RoHS: Compliant 333
  • 1 $3.2000
  • 10 $2.8100
  • 50 $2.6100
  • 100 $2.1800
  • 200 $2.0700
  • 500 $2.0100
$2.0100 / $3.2000 Buy Now
DISTI # V36:1790_14412010
Arrow Electronics Power Relay 24VDC 10A SPST-NO(18.2x10.2x14.7)mm THT Min Qty: 1 Package Multiple: 1 Lead time: 23 Weeks Date Code: 1041 Americas - 498
  • 1 $2.5080
  • 10 $2.3440
  • 25 $2.3250
  • 50 $2.2910
  • 100 $1.8980
  • 300 $1.8920
$1.8920 / $2.5080 Buy Now
Onlinecomponents.com Power Relay 24VDC 10A SPST-NO(18.2x10.2x14.7)mm THT RoHS: Compliant 0
  • 100 $2.1140
  • 300 $2.0290
  • 500 $1.9610
  • 1,000 $1.9510
  • 2,500 $1.9410
  • 5,000 $1.9320
  • 7,500 $1.9220
  • 10,000 $1.9120
$1.9120 / $2.1140 Buy Now
DISTI # 83719820
Verical Power Relay 24VDC 10A SPST-NO(18.2x10.2x14.7)mm THT Min Qty: 3 Package Multiple: 1 Date Code: 1041 Americas - 498
  • 3 $2.5080
$2.5080 Buy Now
Bristol Electronics   16
RFQ
Quest Components POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.019A (COIL), 24VDC (COIL), 450MW (COIL), 10A (CONTACT), 30VDC (CONTACT), DC INPUT, AC/DC OUTPUT, THROUGH HOLE-S 450
  • 1 $3.6000
  • 105 $2.2200
  • 451 $1.9800
$1.9800 / $3.6000 Buy Now
Quest Components POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.019A (COIL), 24VDC (COIL), 450MW (COIL), 10A (CONTACT), 30VDC (CONTACT), DC INPUT, AC/DC OUTPUT, THROUGH HOLE-S 450
  • 1 $3.6000
  • 105 $2.2200
  • 451 $1.9800
$1.9800 / $3.6000 Buy Now
Quest Components POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.019A (COIL), 24VDC (COIL), 450MW (COIL), 10A (CONTACT), 30VDC (CONTACT), DC INPUT, AC/DC OUTPUT, THROUGH HOLE-S 9
  • 1 $4.5636
  • 3 $3.8030
  • 8 $3.3466
$3.3466 / $4.5636 Buy Now
Quest Components POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.019A (COIL), 24VDC (COIL), 450MW (COIL), 10A (CONTACT), 30VDC (CONTACT), DC INPUT, AC/DC OUTPUT, THROUGH HOLE-S 2
  • 1 $4.5636
  • 3 $3.8030
$3.8030 / $4.5636 Buy Now
DISTI # 1-1393194-0
TTI General Purpose Relays T77S1D10-24 Min Qty: 2 Package Multiple: 1 Container: Tray Americas - 0
  • 2 $3.2500
  • 10 $3.1000
  • 25 $3.0400
  • 50 $2.7100
  • 100 $2.1200
  • 200 $2.0800
  • 500 $2.0400
$2.0400 / $3.2500 Buy Now
DISTI # AMP1-1393194-0
Interstate Connecting Components T77S1D10-24 0
59500 On Order
  • 1,000 $1.9282
  • 3,900 $1.8998
$1.8998 / $1.9282 Buy Now
DISTI # 000000000000267992
Sager General Purpose Relays SPST-NO 10A 24VDC Min Qty: 1 0
  • 1 $2.2200
  • 73 $1.9700
  • 182 $1.9400
  • 363 $1.8400
  • 726 $1.7800
$1.7800 / $2.2200 Buy Now
Master Electronics Power Relay 24VDC 10A SPST-NO(18.2x10.2x14.7)mm THT RoHS: Compliant 0
  • 100 $2.1140
  • 300 $2.0290
  • 500 $1.9610
  • 1,000 $1.9510
  • 2,500 $1.9410
  • 5,000 $1.9320
  • 7,500 $1.9220
  • 10,000 $1.9120
$1.9120 / $2.1140 Buy Now

Part Details for T77S1D10-24

T77S1D10-24 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

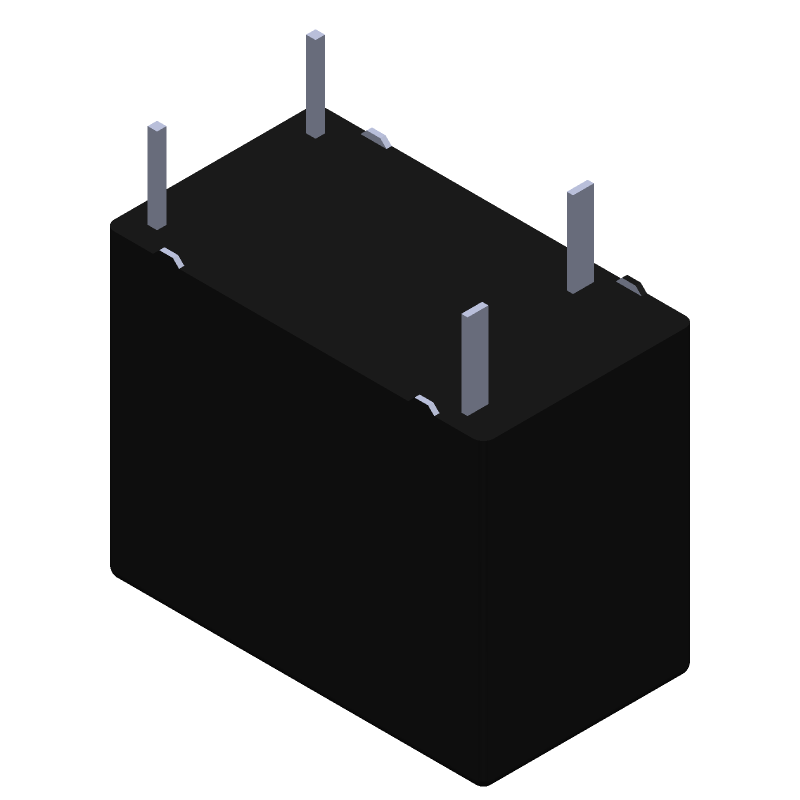

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

T77S1D10-24 Part Data Attributes

Parametric Data
T77S1D10-24 TE Connectivity
Buy Now Datasheet
Compare Parts:
T77S1D10-24 TE Connectivity POWER/SIGNAL RELAY, SPST, MOMENTARY, 0.019A (COIL), 24VDC (COIL), 450mW (COIL), 10A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TYCO ELECTRONICS ELCON
Package Description ROHS COMPLIANT
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8536.41.00.20
Factory Lead Time 25 Weeks, 3 Days
Samacsys Manufacturer TE Connectivity
Body Breadth 10.2 mm
Body Height 14.7 mm
Body Length or Diameter 18.2 mm
Coil Current(DC)-Max 0.019 A
Coil Operate Voltage(DC) 18 V
Coil Power 450 mW
Coil Release Voltage(DC) 1.2 V
Coil Resistance 1280 Ω
Coil Voltage(DC)-Max 24 V
Coil Voltage-Nom 24 V
Coil/Input Supply Type DC
Contact (AC) Max Rating R Load 10A@250VAC
Contact Current(AC)-Max 10 A
Contact Current(DC)-Max 10 A
Contact (DC) Max Rating R Load 10A@30VDC
Contact Voltage(AC)-Max 277 V
Contact Voltage(DC)-Max 30 V
Contact/Output Supply Type AC/DC
Dielectric Strength Between Coil and Contacts 4000 Vrms
Dielectric Strength Between Open Contacts 750 Vrms
Electrical Life 100000 Cycle(s)
End Contact Material SILVER CADMIUM OXIDE
Input Switching Control Type Random
Mounting Feature PANEL MOUNT
Number of Terminals 5
Operate Time 10 ms
Operating Temperature-Max 85 °C
Operating Temperature-Min 70 °C
Packing Method TRAY
Physical Dimension 18.2mm x 10mm x 14.7mm
Reference Standard CSA; UL
Relay Action MOMENTARY
Relay Form 1 FORM A
Relay Function SPST
Relay Type POWER/SIGNAL RELAY
Release Time 4 ms
Sealing IMMERSION CLEANABLE CASE
Surface Mount NO
Terminal Length 0.004000508001016002 inch
Termination Type SOLDER/QUICK CONNECT
Weight 9 g
