Capacitors / Tantalum Capacitors / T521X227M016ATE035
Datasheets
T521X227M016ATE035 by: KEMET Corporation

Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 16V, 20% +Tol, 20% -Tol, 220uF, Surface Mount, 2917, CHIP, HALOGEN FREE AND ROHS COMPLIANT

Part Details for T521X227M016ATE035 by KEMET Corporation

Results Overview of T521X227M016ATE035 by KEMET Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Space Technology Aerospace and Defense Transportation and Logistics Renewable Energy Automotive Robotics and Drones

T521X227M016ATE035 Information

T521X227M016ATE035 by KEMET Corporation is a Tantalum Capacitor.
Tantalum Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for T521X227M016ATE035

Part # Distributor Description Stock Price Buy
DISTI # 96Y7530
Newark Cap, Tant, Polymer, 220Uf, 16V, 2917, Capacitance:220Μf, Capacitance Tolerance:± 20%, Voltage(Dc):16V, Manufacturer Size Code:X, Esr:0.035Ohm, Capacitor Case/Package:2917 [7343 Metric], Product Length:7.3Mm, Product Width:4.3Mm Rohs Compliant: Yes |Kemet T521X227M016ATE035 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 6
  • 1 $0.6560
  • 10 $0.6560
  • 25 $0.6560
  • 50 $0.6560
$0.6560 Buy Now
DISTI # 42AC9646
Newark Cap, Tant, Polymer, 220Uf, 16V, Case X, Capacitance:220Μf, Capacitance Tolerance:± 20%, Voltage(Dc):16V, Manufacturer Size Code:X, Esr:0.035Ohm, Capacitor Case/Package:2917 [7343 Metric], Product Length:7.3Mm, Product Width:4.3Mm Rohs Compliant: Yes |Kemet T521X227M016ATE035 RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $2.1700
  • 2,000 $2.0600
  • 4,000 $1.9200
  • 8,000 $1.7900
  • 12,000 $1.7200
  • 20,000 $1.7000
$1.7000 / $2.1700 Buy Now
DISTI # 399-9789-1-ND
DigiKey CAP TANT POLY 220UF 16V 2917 Min Qty: 1 Lead time: 25 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 775
In Stock
  • 1 $3.5500
  • 10 $2.5020
  • 50 $2.0852
  • 100 $1.9564
  • 500 $1.7385
  • 1,000 $1.6710
  • 1,500 $1.6372
  • 2,500 $1.5997
  • 3,500 $1.5778
  • 5,000 $1.5567
$1.5567 / $3.5500 Buy Now
DISTI # 96Y7530
Avnet Americas Tantalum Polymer Capacitor, KO-CAP?, 220 ?F, ? 20%, 16 V, X, 0.035 ohm, 2917 [7343 Metric] - Product that comes on tape, but is not reeled (Alt: 96Y7530) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 45 Weeks, 3 Days Container: Ammo Pack 6 Partner Stock
RFQ
DISTI # T521X227M016ATE035
Avnet Americas Tantalum Polymer Capacitor, KO-CAP?, 220 ?F, ? 20%, 16 V, X, 0.035 ohm, 2917 [7343 Metric] - Tape and Reel (Alt: T521X227M016ATE035) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 29 Weeks, 0 Days Container: Reel 0
  • 500 $1.3666
  • 1,000 $1.3486
  • 2,000 $1.3308
  • 3,000 $1.3247
  • 4,000 $1.3009
$1.3009 / $1.3666 Buy Now
DISTI # 80-T521X227M16ATE35
Mouser Electronics Tantalum Capacitors - Polymer 16V 220uF 2917 20% ESR=35mOhms RoHS: Compliant 0
  • 1 $3.9200
  • 10 $2.6800
  • 50 $2.3300
  • 100 $2.1600
  • 500 $1.8200
$1.8200 / $3.9200 Order Now
DISTI # 87359964
Verical Cap Tant Polymer 220uF 16VDC X CASE 20%( 7.3 X 4.3 X 4mm) Inward L SMD 7343-43 0.035 Ohm 125°C T/R RoHS: Compliant Min Qty: 22 Package Multiple: 1 Americas - 182
  • 22 $3.2480
  • 50 $2.6740
  • 100 $2.4920
  • 500 $2.2540
$2.2540 / $3.2480 Buy Now
DISTI # T521X227M016ATE035
TME Capacitor: tantalum-polymer, low ESR, 220uF, 16VDC, X, 2917, SMD Min Qty: 1 561
  • 1 $3.0500
  • 10 $2.4200
  • 50 $2.0400
  • 100 $1.8900
  • 500 $1.5200
  • 1,000 $1.4600
$1.4600 / $3.0500 Buy Now
DISTI # T521X227M016ATE035
Avnet Abacus Tantalum Polymer Capacitor KOCAP 220 F 20 16 V X 0035 ohm 2917 7343 Metric - Tape and Reel (Alt: T521X227M016ATE035) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 42 Weeks, 0 Days Container: Reel Abacus - 500
Buy Now
DISTI # T521X227M016ATE035
Avnet Asia Tantalum Polymer Capacitor, KO-CAP?, 220 ?F, ? 20%, 16 V, X, 0.035 ohm, 2917 [7343 Metric] (Alt: T521X227M016ATE035) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 32 Weeks, 0 Days 0
  • 500 $5.0127
  • 1,000 $4.9431
  • 1,500 $4.8753
  • 2,500 $4.8095
  • 5,000 $4.6829
  • 12,500 $4.5628
  • 25,000 $4.4488
$4.4488 / $5.0127 Buy Now
Cytech Systems Limited CAP TANT POLY 220UF 16V 2917 1000
RFQ
Vyrian Capacitors 4251
RFQ
Win Source Electronics CAP TANTALUM 220UF 16V 2917 / Cap Tant Polymer 220uF 16VDC X CASE 20% (7.3 X 4.3 X 4mm) SMD 7343-43 0.035 Ohm 125°C T/R 542
  • 11 $3.2500
  • 25 $2.6667
  • 39 $2.5833
  • 54 $2.5000
  • 69 $2.4167
  • 93 $2.1667
$2.1667 / $3.2500 Buy Now

Part Details for T521X227M016ATE035

T521X227M016ATE035 CAD Models

  • Part Symbol

    Part Symbol

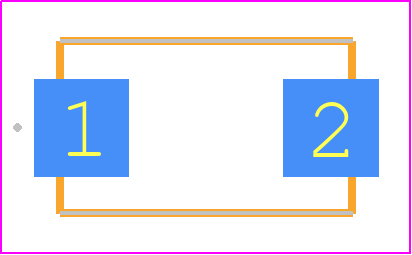

  • Footprint

    footprint

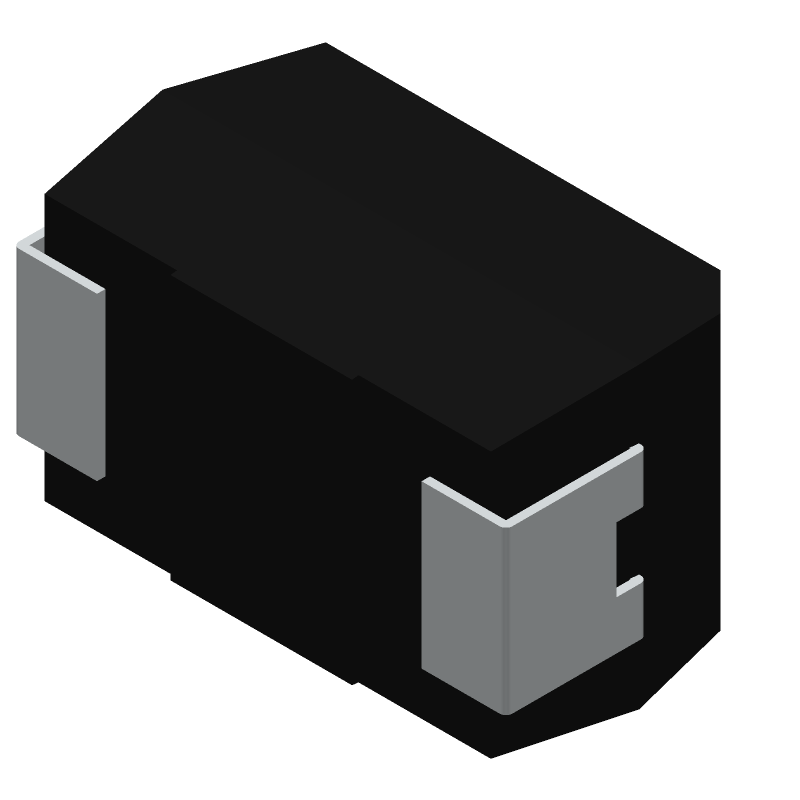

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

T521X227M016ATE035 Part Data Attributes

Parametric Data
T521X227M016ATE035 KEMET Corporation
Buy Now Datasheet
Compare Parts:
T521X227M016ATE035 KEMET Corporation Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 16V, 20% +Tol, 20% -Tol, 220uF, Surface Mount, 2917, CHIP, HALOGEN FREE AND ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KEMET ELECTRONICS CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.21.00.50
Factory Lead Time 45 Weeks, 3 Days
Samacsys Manufacturer KEMET
Additional Feature ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
Capacitance 220 µF
Capacitor Type TANTALUM CAPACITOR
Dielectric Material TANTALUM (SOLID POLYMER)
ESR 35 mΩ
Height 4 mm
JESD-609 Code e3
Leakage Current 0.352 mA
Length 7.3 mm
Mounting Feature SURFACE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, Embossed Plastic, 7 Inch
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 16 V
Ripple Current 845 mA
Size Code 2917
Surface Mount YES
Tan Delta 0.1
Terminal Finish Matte Tin (Sn)
Terminal Shape J BEND
Width 4.3 mm

Alternate Parts for T521X227M016ATE035

This table gives cross-reference parts and alternative options found for T521X227M016ATE035. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of T521X227M016ATE035, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
T521X227M016ANE035 KEMET Corporation $11.0454 Tantalum Capacitor, Tantalum (solid Polymer), T521X227M016ATE035 vs T521X227M016ANE035
T541X227M016BH65107280 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), T521X227M016ATE035 vs T541X227M016BH65107280
04052-054B KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), T521X227M016ATE035 vs 04052-054B
T541X227M016CH65207610 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), T521X227M016ATE035 vs T541X227M016CH65207610
T541X227M016AH65207280 KEMET Corporation Check for Price Tantalum Capacitor, Polarized, Tantalum (solid Polymer), 16V, 20% +Tol, 20% -Tol, 220uF, 2917 T521X227M016ATE035 vs T541X227M016AH65207280
T541X227M016DT65107610 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), T521X227M016ATE035 vs T541X227M016DT65107610
T541X227M016AH86107640 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), T521X227M016ATE035 vs T541X227M016AH86107640
T541X227M016BT65107610 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), T521X227M016ATE035 vs T541X227M016BT65107610
T541X227M016BH8510WAFL KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), T521X227M016ATE035 vs T541X227M016BH8510WAFL
T541X227M016DH67107610 KEMET Corporation Check for Price Tantalum Capacitor, Tantalum (solid Polymer), T521X227M016ATE035 vs T541X227M016DH67107610

T521X227M016ATE035 Related Parts

T521X227M016ATE035 Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the T521X227M016ATE035 is 260°C for a maximum of 10 seconds.

  • Yes, the T521X227M016ATE035 is a high-reliability capacitor that meets the requirements of various industries, including aerospace, defense, and medical devices.

  • Yes, the T521X227M016ATE035 is designed to withstand high-vibration environments and meets the requirements of various vibration tests, including IEC 60068-2-6.

  • The ESR of the T521X227M016ATE035 is typically around 10 mohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.

  • Yes, the T521X227M016ATE035 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
